Vertical 6P2C RJ11 Jack, Single Port, Unshielded, Through Hole, Tab-Up, No LED
Introduction:
This is a single port vertical RJ11 jack designed for stable top-entry through hole mounting on printed circuit boards. It stands out with a distinctive Pantone P355C Green housing made from hi-temp thermoplastic, which ensures the unit survives intense industrial soldering heat without warping. The 6P2C configuration utilizes Phosphor Bronze contacts with premium Gold plating to maintain a reliable 1.5A electrical link. By using a Tab-Up vertical orientation, this component effectively saves valuable board space while providing secure top-entry cable access. Technicians utilize this unshielded connector for telecommunication equipment and networking hardware requiring reliable voice-grade connectivity in a compact footprint.
Key Features
- Vertical Mounting Design: Optimizes top-entry connectivity for compact PCB layouts.
- Pantone P355C Green: Distinctive housing color allows for easy port identification.
- Gold Plated Contacts: Ensures high conductivity and lasting signal stability.
- Hi-Temp Thermoplastic: Survives intense heat during industrial soldering processes.
- 6P2C RJ11 Interface: Provides reliable voice-grade modular connectivity for networks.
Main Specifications:
General Information:
| Product No.: | MTJ-623X1-N-HT-P355C-A | |
| Series: | MTJ | |
| Category: | Single Port RJ11 Jack | |
| Product Type: | RJ11 Jack | |
| Number of Positions/Contacts: | 6P2C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Vertical | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Latch Direction: | Tab-Up | |
| Shielding: | Unshielded | |
| LED indicator: | No LED |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 150V AC | |
| Contact Resistance: | 30mΩ Max | |
| Insulation Resistance: | 500mΩ Min | |
| Dielectric withstanding voltage: | 1000 VAC for 1 minute |
Materials and Plating:
| Insulator Material: | Hi-temp thermoplastic | |
| Insulator Color: | Pantone P355C Green | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | N/A |
Environmental:
| Operating Temperature: | -40℃ to +70℃ | |
| Flammability Rating: | UL 94 V-0 |

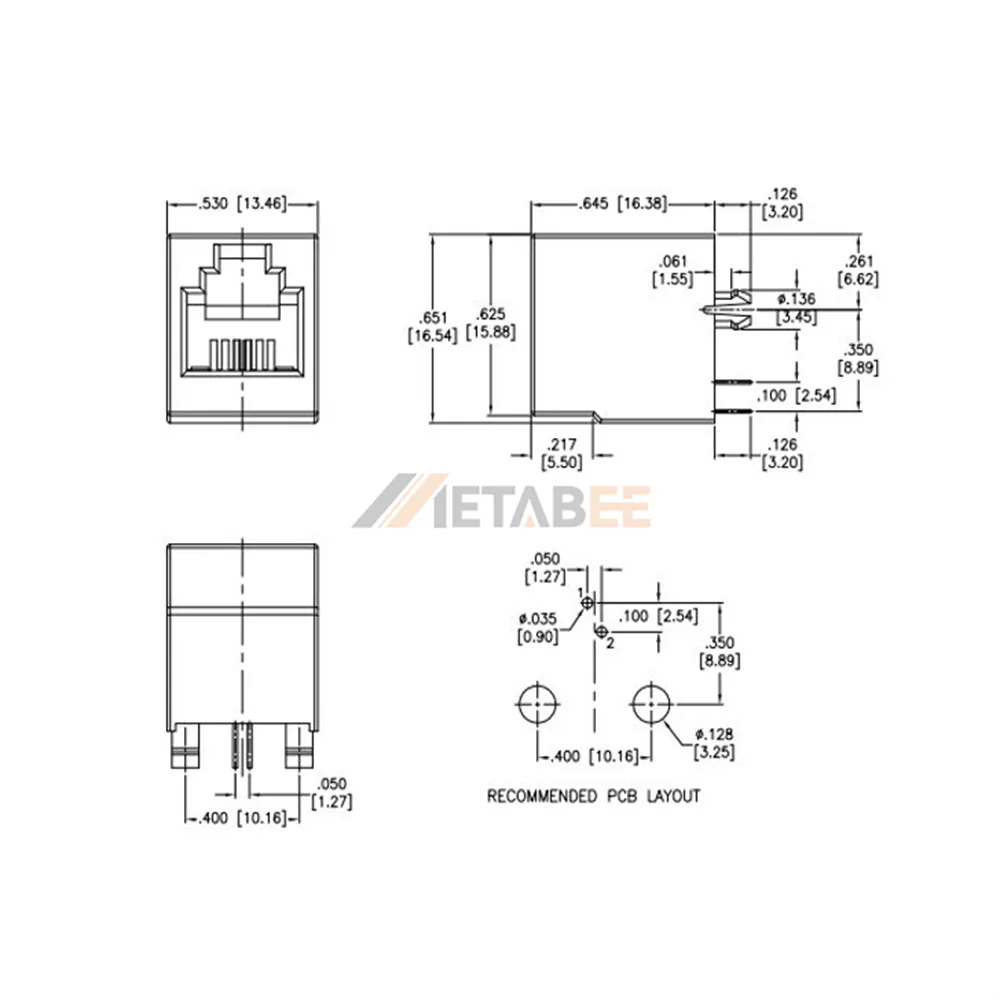

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
