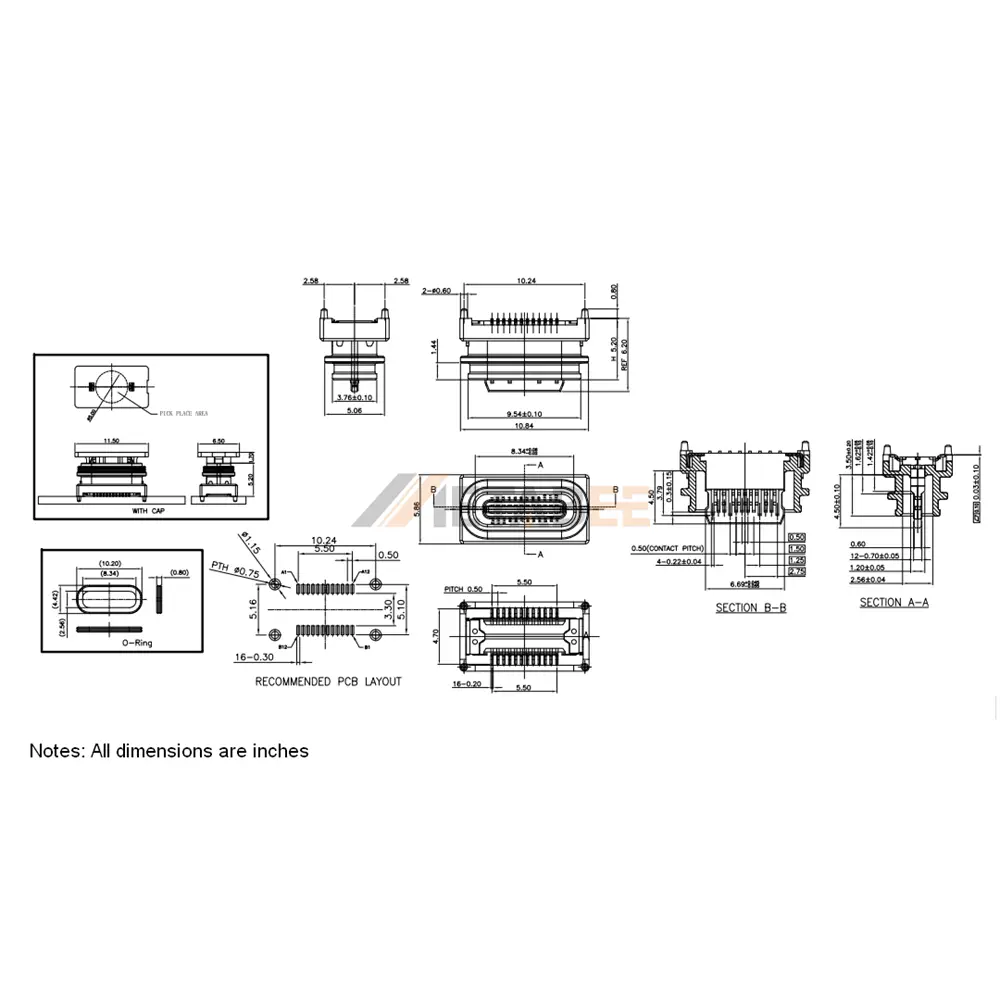

USB 4.0 USB C Receptacle, 24 Pin, 40Gbps, PCB Mount, SMT, Waterproof
Introduction:
Engineered for next-generation data architecture, this USB 4.0 Type-C Receptacle delivers an elite throughput of 40Gbps. The hybrid SMT and Through-Hole mounting design ensures exceptional mechanical stability on the PCB, while the Right Angle (R/A) orientation allows for low-profile integration. Supporting a robust 5A current rating, this 24-pin connector is the definitive solution for high-speed charging and massive data synchronization.
Built to endure rigorous environments, the connector features a waterproof design and a rugged stainless steel shell with nickel plating. The internal copper alloy contacts are gold-plated to maintain superior signal integrity and prevent oxidation. With a wide operating temperature range of -20°C to 105°C and a UL94V-0 flame retardancy rating, it meets the highest safety and reliability standards for industrial and consumer electronics.
Key Features
- Ultra-Fast 40Gbps: Optimized for maximum USB 4.0 bandwidth and rapid data transfer.
- Waterproof Engineering: Enhanced protection for reliable operation in moist environments.
- Dual-Mount Stability: Combines SMT and Through-Hole technology for superior PCB retention.
- High Power Support: Rated for 5A to facilitate high-efficiency Power Delivery (PD).
- Industrial Grade Build: Stainless steel nickel-plated shell with gold-plated contacts.
- Certified Safety: UL94V-0 rated housing with high thermal resistance up to 105°C.
Main Specifications:
General Information:
| Product No.: | USB-C40-S-VT-CS51A-TSMT-WP-BK-PP-TR | |
| Connector Series: | USB 4.0 Connectors | |
| Interface Type: | Type-C | |
| Brand: | Metabee | |
| Number of Contacts: | 24 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Receptacle | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Right angle | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | SMT | |
| Shielding: | Shielded | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | Waterproof |
Materials and Plating:
| Shell Material: | Stainless Steel | |
| Shell plating: | Nickel plated | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold plated | |
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Rated Current: | 1.25A, 5A | |
| Rated Voltage: | – |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -20℃ to +105℃ |
Applications of this USB 4.0 USB-C Receptacle, 24 Pin, 40Gbps:
USB 4.0 connectors are versatile interfaces that support both power delivery and data communication across consumer, industrial, and professional devices. Their standardization and plug-and-play nature make them one of the most ubiquitous connections in modern electronics.
Here are some key applications:
- Data Transfer
- Charging Mobile Devices
- External Storage Connection
- Audio/video Peripherals
- Gaming Equipment Interfaces
- Networking Adapters
- Automotive Systems
- Medical and Healthcare Equipment
