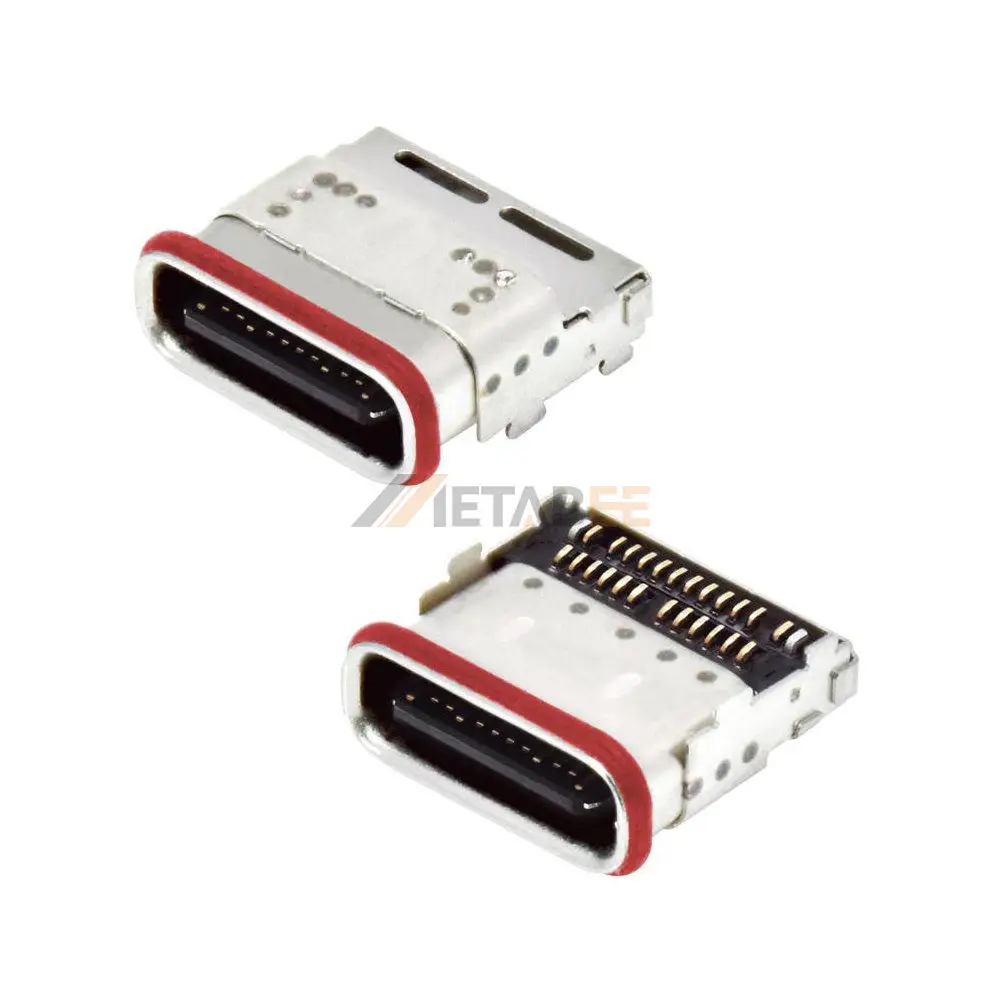

| USB 4.0 Receptacle Connector, Type C Socket, 24 Pin, 40Gbps, PCB SMT, R/A, Waterproof |
Introduction:
USB 4.0 receptacle is engineered for high-speed data transmission and reliable power delivery in demanding electronic applications. Featuring a single-port USB Type-C interface with a full 24-pin configuration, this connector supports data rates up to 40Gbps, making it suitable for USB4 architectures in consumer electronics, industrial equipment, and ruggedized devices. The right-angle PCB surface-mount design enables efficient space utilization and stable mechanical performance in compact layouts.
The connector is built with a stainless steel housing and nickel-plated finish to ensure excellent corrosion resistance, EMI shielding, and long-term durability. Copper alloy contacts with gold plating provide low contact resistance and consistent signal integrity under high-speed operation. With a rated current of up to 5A, this Type-C receptacle supports modern power requirements while maintaining stable electrical performance.
Designed for harsh environments, the connector features a waterproof structure, complies with UL94V-0 flame-retardant standards, and operates reliably across a wide temperature range from -20°C to +105°C. It is an ideal interconnect solution for high-performance, space-constrained, and environmentally exposed applications.
Key Features
- USB 4.0 Type-C receptacle, single-port configuration
- 24-pin interface supporting up to 40Gbps data transfer
- Right-angle PCB SMT design for compact assemblies
- Stainless steel shell with nickel plating
- Gold-plated copper alloy contacts for stable signal performance
- 5A current rating, waterproof design, UL94V-0, operating temperature -20°C to +105°C
Main Specifications:
General Information:
| Product No.: | USB-C40-S-RA-CS67-SMT-WP-BK-30-TR | |
| Connector Series: | USB 4.0 Connectors | |
| Interface Type: | Type-C | |
| Brand: | Metabee | |
| Number of Contacts: | 24 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Receptacle | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Right angle | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | SMT | |
| Shielding: | Shielded | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Stainless Steel | |
| Shell plating: | Nickel plated | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold plated | |
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Rated Current: | 5A | |
| Rated Voltage: | – |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -20℃ to +105℃ |
Applications of this USB 4.0 Receptacle Connector, Type C Socket, 40Gbps:
USB 4.0 connectors are versatile interfaces that support both power delivery and data communication across consumer, industrial, and professional devices. Their standardization and plug-and-play nature make them one of the most ubiquitous connections in modern electronics.
Here are some key applications:
- Data Transfer
- Charging Mobile Devices
- External Storage Connection
- Audio/video Peripherals
- Gaming Equipment Interfaces
- Networking Adapters
- Automotive Systems
- Medical and Healthcare Equipment
