Introduction:
Experience the next generation of connectivity with this USB 4.0 Type-C Receptacle. Engineered for high-density PCB applications, this single-port, 24-pin right-angle connector delivers exceptional performance with blazing 40Gbps data transfer speeds. Its durable stainless steel housing with nickel plating provides robust protection, ensuring reliable and secure mating in demanding environments. The precision copper alloy contacts, finished with gold plating, guarantee superior signal integrity and corrosion resistance for stable, high-speed data and power delivery.
Designed for longevity and safety, this connector supports a wide power profile with a voltage rating of 48V and current ratings of 1.25A and 5A. It operates flawlessly across an extensive temperature range from -20°C to 105°C and features a UL94V-0 certified flame-retardant body. The edge-hang, right-angle mounting design makes it an ideal space-saving solution for modern, compact devices, providing a stable and professional installation directly onto your circuit board.
Key Features
- Ultra-Fast Speed: Supports USB 4.0 with 40Gbps data transfer.
- Robust Construction: Stainless steel housing with nickel plating.
- High-Fidelity Contacts: Gold-plated copper alloy for optimal conductivity.
- Space-Efficient Design: Right-angle (R/A), edge-hang PCB mount.
- Enhanced Power: Rated for 48V and 5A power delivery.
- Reliable & Safe: UL94V-0 flame retardant; operating temp -20°C to 105°C.

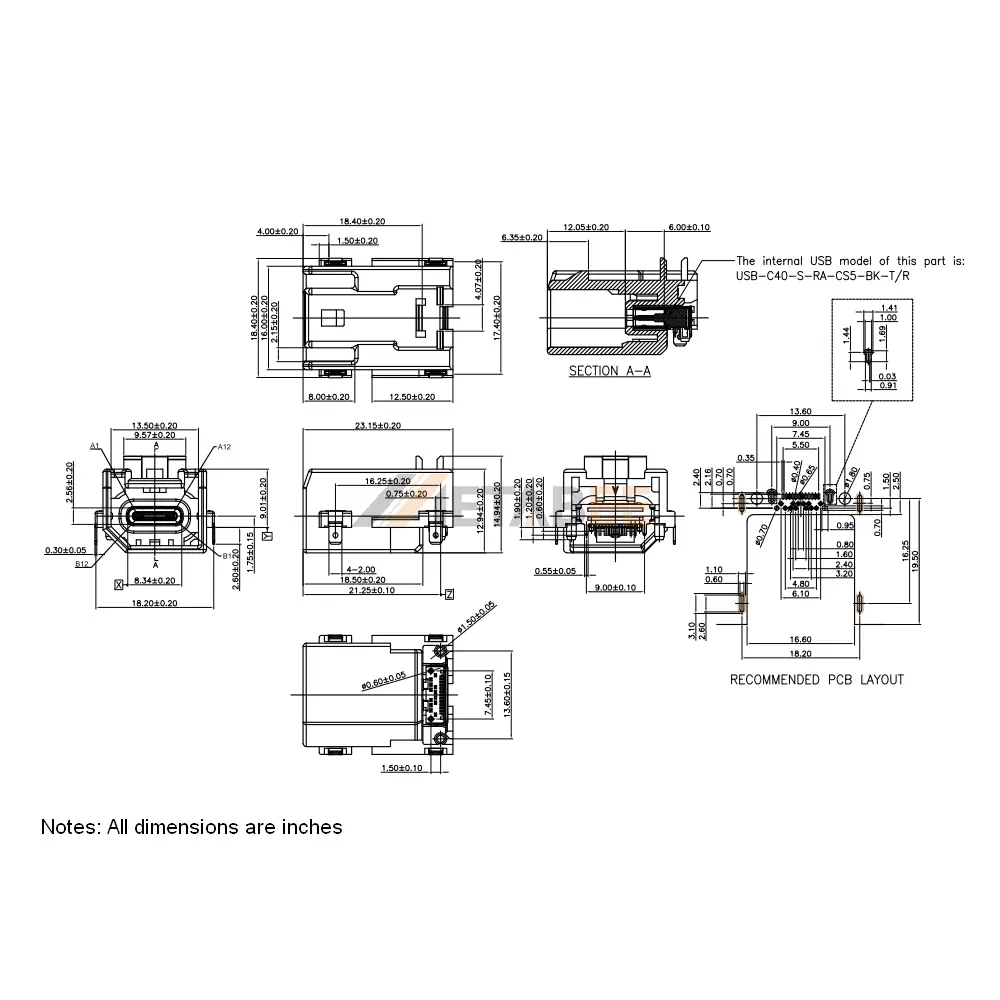

Main Specifications:
General Information:
| Product No.: | USB-C40-S-RA-CS5A-X-EH-BK | |
| Connector Series: | USB 4.0 Connectors | |
| Interface Type: | Type-C | |
| Brand: | Metabee | |
| Number of Contacts: | 24 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Receptacle | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Right angle | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Edge Hang | |
| Shielding: | Shielded | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Stainless Steel | |
| Shell plating: | Nickel plated | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold plated | |
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Rated Current: | 1.25A, 5A | |
| Rated Voltage: | 48V |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -20℃ to +105℃ |
Applications of this USB 4.0 Type C Receptacle Connector, 24 Pin, 40Gbps:
USB 4.0 connectors are versatile interfaces that support both power delivery and data communication across consumer, industrial, and professional devices. Their standardization and plug-and-play nature make them one of the most ubiquitous connections in modern electronics.
Here are some key applications:
- Data Transfer
- Charging Mobile Devices
- External Storage Connection
- Audio/video Peripherals
- Gaming Equipment Interfaces
- Networking Adapters
- Automotive Systems
- Medical and Healthcare Equipment
