Introduction:

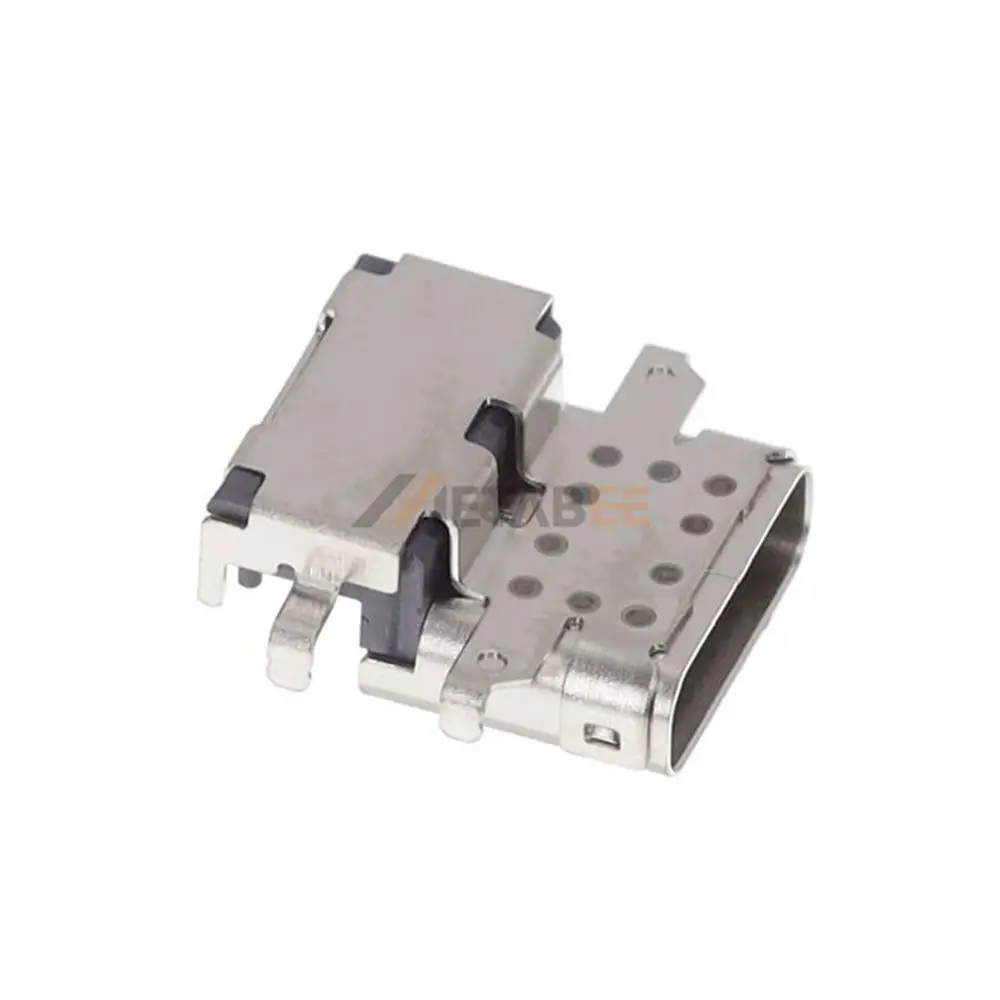

USB 4.0 Type C is designed for ultra-high-speed data transmission and advanced PCB edge applications. Featuring a single-port USB Type-C interface with a full 24-pin layout, this connector supports data rates up to 40Gbps, meeting the performance requirements of USB4 architectures in computing, consumer electronics, and industrial systems. The right-angle, edge-hang PCB mount design enables efficient space utilization and secure mechanical retention in compact layouts.
The connector housing is manufactured from high-strength stainless steel with nickel plating, delivering excellent durability, shielding performance, and corrosion resistance. Precision copper alloy contacts with gold plating ensure low contact resistance, reliable signal integrity, and long mating life. Multiple current ratings of 0.25A, 1.25A, and up to 5A provide flexible power delivery options for diverse USB Type-C applications.
Built for demanding environments, this USB 4.0 Type-C receptacle complies with UL94V-0 flame-retardant standards and operates reliably across a wide temperature range from -20°C to +105°C. It is a robust, future-ready interconnect solution for high-speed, high-density electronic designs requiring stable performance and long-term reliability.
Key Features
- USB 4.0 Type-C receptacle, single-port configuration
- 24-pin interface supporting up to 40Gbps data transfer
- Right-angle PCB mount with edge-hang design
- Stainless steel shell with nickel-plated finish
- Gold-plated copper alloy contacts for signal stability
- Multiple current ratings (0.25A / 1.25A / 5A), UL94V-0, operating temperature -20°C to +105°C
Main Specifications:
General Information:
| Product No.: | USB-C40-S-RA-CS4-EH-BK-TR | |
| Connector Series: | USB 4.0 Connectors | |
| Interface Type: | Type-C | |
| Brand: | Metabee | |
| Number of Contacts: | 24 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Receptacle | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Right angle | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Edge Hang | |
| Shielding: | Shielded | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Stainless Steel | |
| Shell plating: | Nickel plated | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold plated | |
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Rated Current: | 0.25A, 1.25A, 5A | |
| Rated Voltage: | – |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -20℃ to +105℃ |
Applications of this USB 4.0 Type C Receptacle, Single Port, 24 Pin, 40Gbps:
USB 4.0 connectors are versatile interfaces that support both power delivery and data communication across consumer, industrial, and professional devices. Their standardization and plug-and-play nature make them one of the most ubiquitous connections in modern electronics.
Here are some key applications:
- Data Transfer
- Charging Mobile Devices
- External Storage Connection
- Audio/video Peripherals
- Gaming Equipment Interfaces
- Networking Adapters
- Automotive Systems
- Medical and Healthcare Equipment
