Introduction:

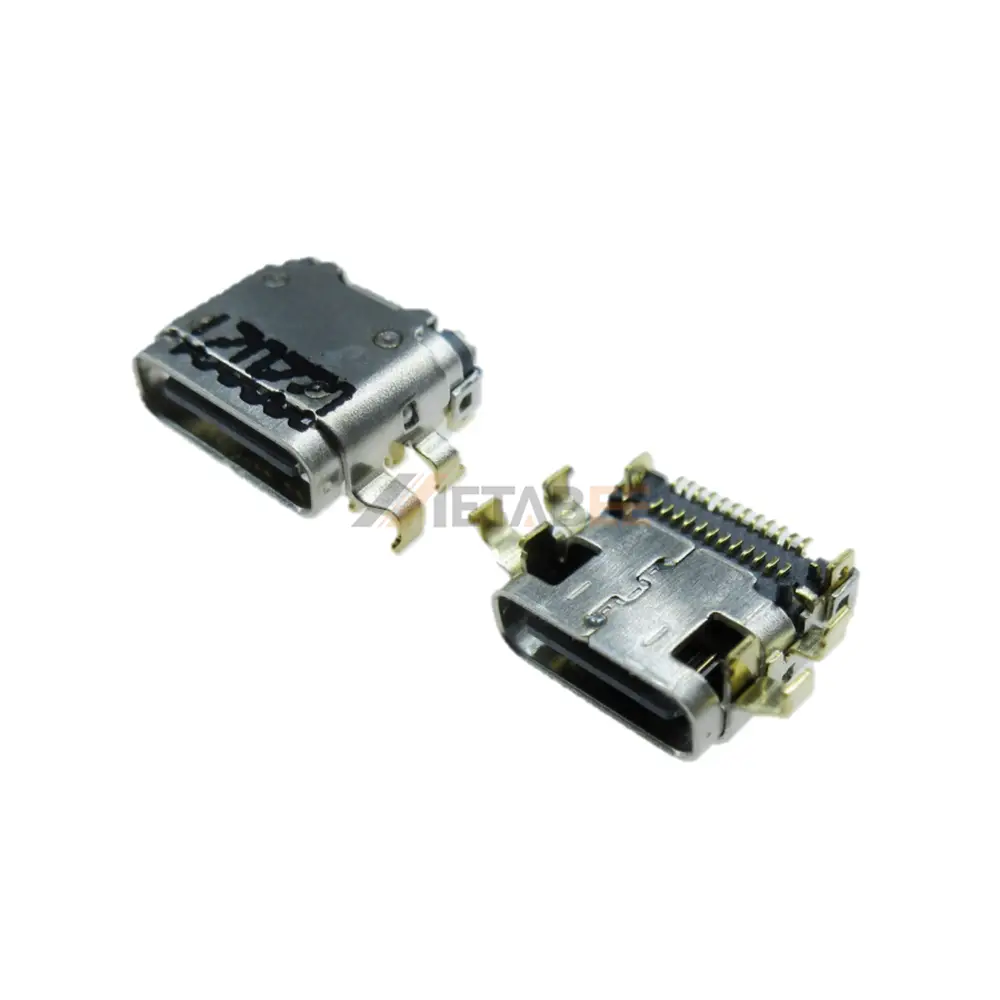

USB 4.0 receptacle type C is engineered for next-generation high-speed data transmission and compact PCB layouts. Featuring a single-port Type-C interface with a 24-pin configuration, this connector supports ultra-fast data rates up to 40Gbps, making it ideal for advanced computing, consumer electronics, and high-performance industrial devices. The right-angle PCB mount and SMT design enable efficient space utilization and reliable automated assembly.
Built for durability and electrical stability, the connector housing is manufactured from stainless steel with a nickel-plated finish, providing excellent mechanical strength and corrosion resistance. Copper alloy contacts with gold plating ensure low contact resistance, superior signal integrity, and long mating life. Rated for 3A current and 5V voltage, it meets the performance demands of modern USB4 applications while maintaining consistent power delivery.
Designed for harsh operating environments, this USB 4.0 Type-C receptacle complies with UL94V-0 flame-retardant standards and operates reliably within a wide temperature range from -20°C to +105°C. It is a robust and future-proof interconnect solution for high-speed, high-density electronic designs.
Key Features
- USB 4.0 Type-C female receptacle, single port
- 24-pin interface supporting up to 40Gbps data transfer
- Right-angle PCB surface mount (SMT) design
- Stainless steel shell with nickel plating
- Gold-plated copper alloy contacts for stable performance
- Rated 3A, 5V, UL94V-0, operating temperature -20°C to +105°C
Main Specifications:
General Information:
| Product No.: | USB-C40-S-RA-CS2-SMT-BK-30-TR | |
| Connector Series: | USB 4.0 Connectors | |
| Interface Type: | Type-C | |
| Brand: | Metabee | |
| Number of Contacts: | 24 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Receptacle | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Right angle | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Surface Mount | |
| Shielding: | Shielded | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Stainless Steel | |
| Shell plating: | Nickel plated | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold plated | |
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Rated Current: | 5A | |
| Rated Voltage: | 20V |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -20℃ to +105℃ |
Applications of this USB 4.0 Female Receptacle Type C Connector, 24 Pin, 40Gbps:
USB 4.0 connectors are versatile interfaces that support both power delivery and data communication across consumer, industrial, and professional devices. Their standardization and plug-and-play nature make them one of the most ubiquitous connections in modern electronics.
Here are some key applications:
- Data Transfer
- Charging Mobile Devices
- External Storage Connection
- Audio/video Peripherals
- Gaming Equipment Interfaces
- Networking Adapters
- Automotive Systems
- Medical and Healthcare Equipment
Factory pricing and exceptional product quality. Get a free quote now!
