Introduction:

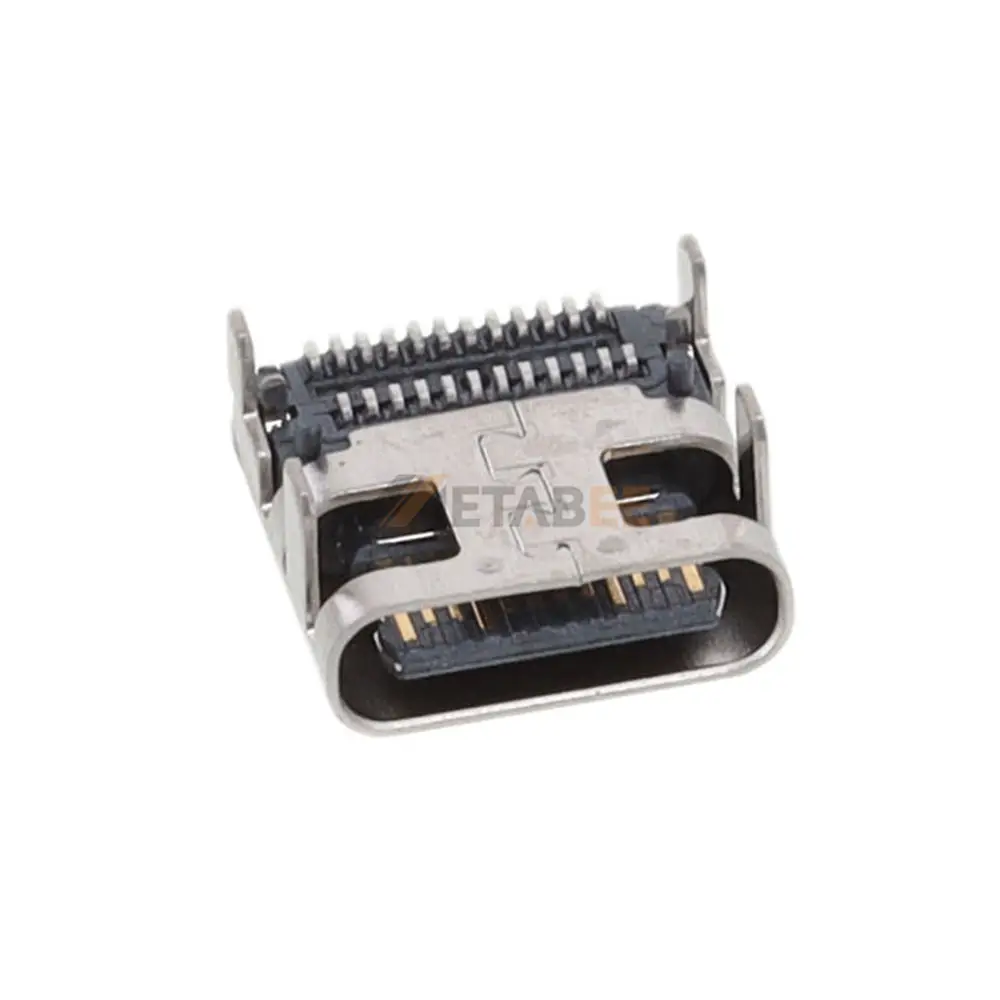

Elevate your hardware design with our USB 4.0 Type-C Female Receptacle. Engineered for next-generation performance, this 24-pin connector supports lightning-fast data transfer speeds up to 40Gbps. Its right-angle (R/A) orientation and SMT (Surface Mount Technology) design make it an ideal choice for compact PCB layouts in high-end laptops, docking stations, and advanced peripheral devices.
Built for durability and reliability, the connector features a rugged Stainless Steel shell with premium nickel plating. The copper alloy contacts are gold-plated to ensure superior conductivity and oxidation resistance. Designed to handle a 5A/20V power rating, this single-port receptacle remains stable under demanding thermal conditions, operating efficiently from -20°C to 105°C with a UL94V-0 flame retardant rating.
Key Features
- Ultra-Fast Performance: Supports USB 4.0 protocols with speeds up to 40Gbps.
- Precision Engineering: 24-pin SMT design for secure, high-density PCB mounting.
- Superior Durability: Nickel-plated stainless steel shell for enhanced structural integrity.
- Optimal Conductivity: Gold-plated copper alloy contacts ensure stable signal transmission.
- High Power Delivery: Rated for 5A current and 20V voltage for fast-charging support.
- Industrial Grade: Wide operating temperature (-20°C to 105°C) and UL94V-0 safety rated.
Main Specifications:
General Information:
| Product No.: | USB-C40-S-RA-CS1-SMT-BK-30-TR | |
| Connector Series: | USB 4.0 Connectors | |
| Interface Type: | Type-C | |
| Brand: | Metabee | |
| Number of Contacts: | 24 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Receptacle | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Right angle | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | SMT | |
| Shielding: | Shielded | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Stainless Steel | |
| Shell plating: | Nickel plated | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold plated | |
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Rated Current: | 5A | |
| Rated Voltage: | 20V |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -20℃ to +105℃ |
Applications of this USB 4.0 Female Receptacle Connector, Type C, 40Gbps:
USB 4.0 connectors are versatile interfaces that support both power delivery and data communication across consumer, industrial, and professional devices. Their standardization and plug-and-play nature make them one of the most ubiquitous connections in modern electronics.
Here are some key applications:
- Data Transfer
- Charging Mobile Devices
- External Storage Connection
- Audio/video Peripherals
- Gaming Equipment Interfaces
- Networking Adapters
- Automotive Systems
- Medical and Healthcare Equipment
