Introduction:

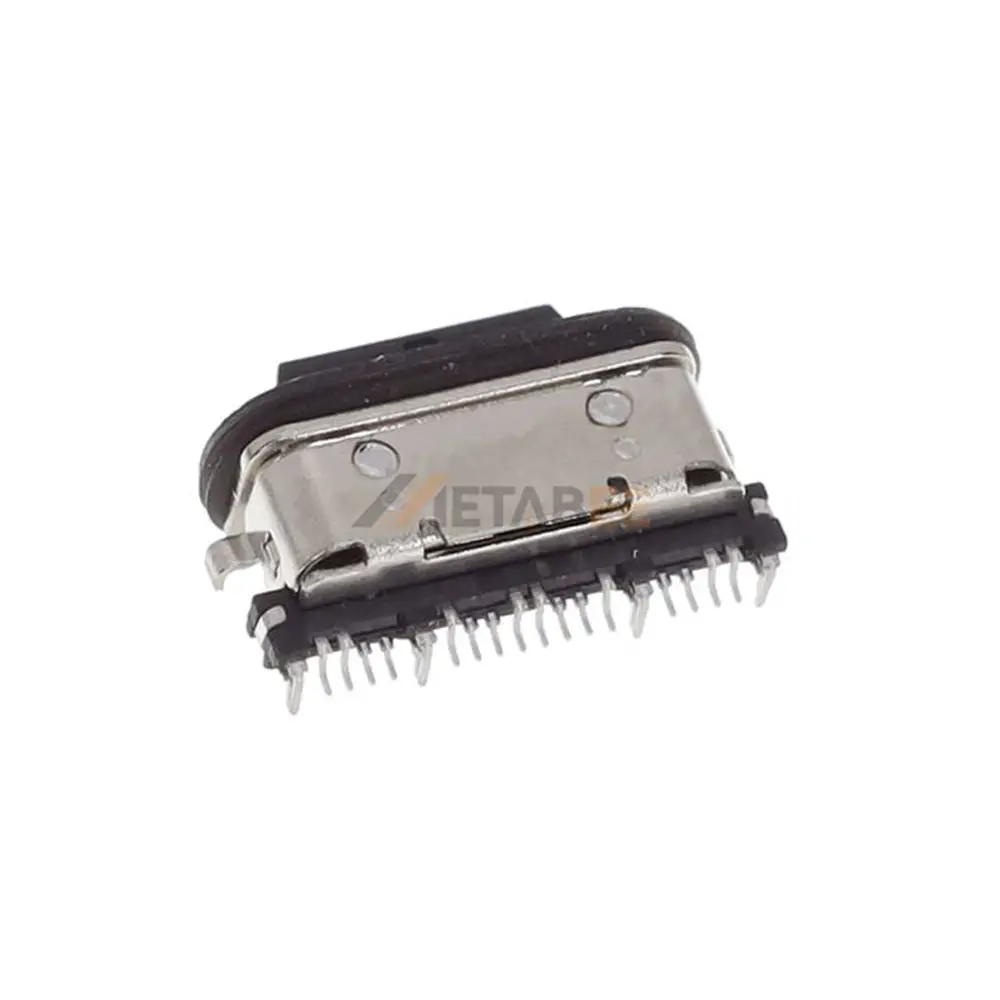

This high-performance USB 4.0 Type-C Receptacle is engineered for next-generation data transmission, supporting blistering speeds up to 40Gbps. Designed with a 24-pin configuration and an Edge Hang, Right Angle (R/A) orientation, it offers a space-saving PCB mount solution perfect for sleek, high-density electronic designs.
Built to withstand demanding environments, the connector features a rugged stainless steel shell with nickel plating and gold-plated copper alloy contacts for superior conductivity. With an IP-rated waterproof design and a wide operating temperature range of -20°C to 105°C, it ensures reliable performance and durability in both consumer electronics and industrial applications.
Key Features
- Ultra-Fast 40Gbps: Supports USB 4.0 standards for high-speed data transfer.
- Waterproof Design: Enhanced protection for reliable use in moisture-prone environments.
- Superior Durability: Stainless steel, nickel-plated shell with UL94V-0 flame resistance.
- Stable Connectivity: 24-pin gold-plated contacts ensure minimal signal loss and a 5A current rating.
- Precision Mounting: Right-angle, edge-hang PCB mount for optimized board layouts.
- Industrial Grade: Operates efficiently in extreme temperatures from -20°C to 105°C.
Main Specifications:
General Information:

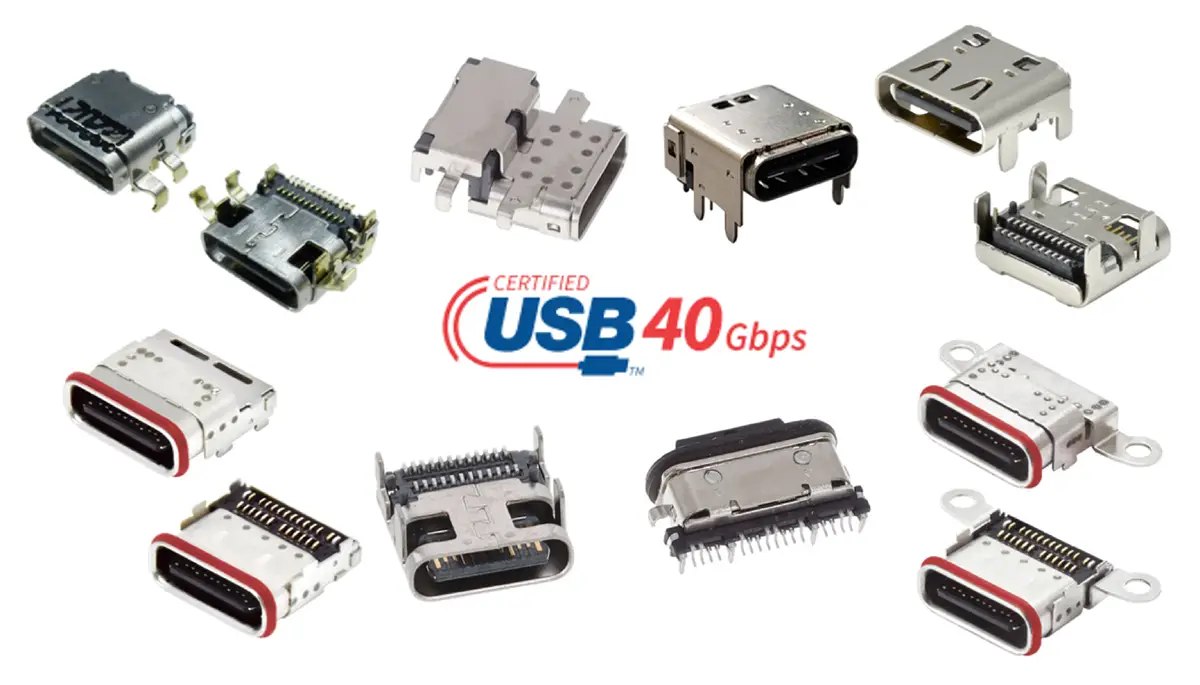

| Product No.: | USB-C40-S-RA-CS50-EH-WP-BK-TR | |
| Connector Series: | USB 4.0 Connectors | |
| Interface Type: | Type-C | |
| Brand: | Metabee | |
| Number of Contacts: | 24 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Receptacle | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Right angle | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Edge Hang | |
| Shielding: | Shielded | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Stainless Steel | |
| Shell plating: | Nickel plated | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold plated | |
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Rated Current: | 5A | |
| Rated Voltage: | – |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -20℃ to +105℃ |
Applications of this USB 4.0 Type-C Receptacle, 24 Pin, 40Gbps:
USB 4.0 connectors are versatile interfaces that support both power delivery and data communication across consumer, industrial, and professional devices. Their standardization and plug-and-play nature make them one of the most ubiquitous connections in modern electronics.
Here are some key applications:
- Data Transfer
- Charging Mobile Devices
- External Storage Connection
- Audio/video Peripherals
- Gaming Equipment Interfaces
- Networking Adapters
- Automotive Systems
- Medical and Healthcare Equipment
Factory pricing and exceptional product quality. Get a free quote now!
