Introduction:

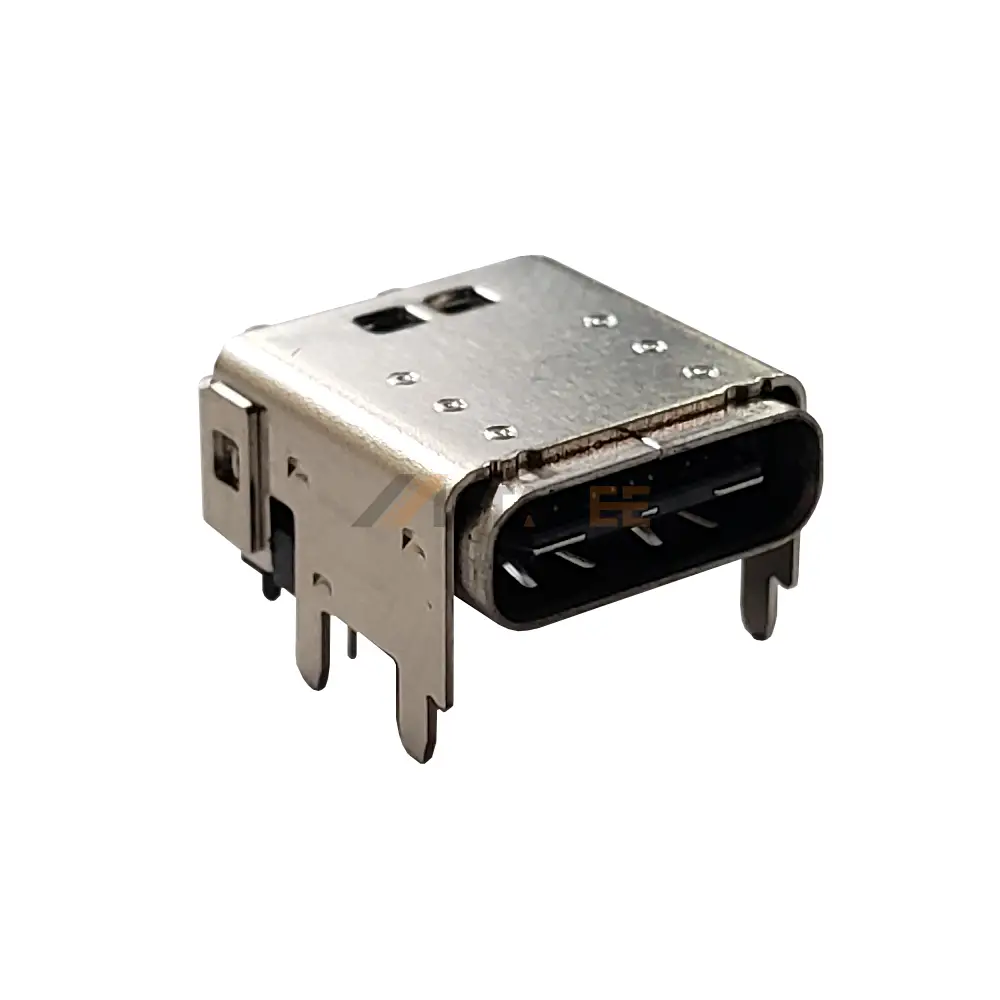

This premium USB 4.0 Type-C receptacle is engineered for next-generation data transmission, supporting blistering speeds of up to 40 Gbps. Designed with a 24-pin configuration and a right-angle (R/A) orientation, this single-port connector is optimized for PCB through-hole mounting, ensuring a secure and stable mechanical connection for high-bandwidth applications.
Built to withstand demanding environments, the connector features a rugged stainless steel shell with nickel plating for superior corrosion resistance. The internal contacts are crafted from high-grade copper alloy with gold plating, ensuring maximum conductivity and signal integrity. With a robust 20A current rating and a wide operating temperature range of -20°C to 105°C, it is ideal for high-power delivery and industrial-grade reliability.
Key Features
- Ultra-Fast Data: Supports USB 4.0 protocols with speeds up to 40Gbps.
- High Power Delivery: Rated for 20A current and 7V for efficient charging.
- Durable Build: Nickel-plated stainless steel shell for enhanced longevity.
- Premium Contacts: Gold-plated copper alloy ensures low resistance and stable signals.
- Precision Mounting: Right Angle, 24-pin Through-Hole design for PCB stability.
- Certified Safety: UL94V-0 flame retardant rating for maximum fire safety.
Main Specifications:
General Information:
| Product No.: | USB-C40-S-RA-BK-30-TR | |
| Connector Series: | USB 4.0 Connectors | |
| Interface Type: | Type-C | |
| Brand: | Metabee | |
| Number of Contacts: | 24 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Receptacle | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Right angle | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Through Hole | |
| Shielding: | Shielded | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Stainless Steel | |
| Shell plating: | Nickel plated | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold plated | |
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Rated Current: | 7A | |
| Rated Voltage: | 20 V |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -20℃ to +105℃ |
Applications of this USB 4.0 Receptacle Connector, Type C, 40Gbps, R/A:
USB 4.0 connectors are versatile interfaces that support both power delivery and data communication across consumer, industrial, and professional devices. Their standardization and plug-and-play nature make them one of the most ubiquitous connections in modern electronics.
Here are some key applications:
- Data Transfer
- Charging Mobile Devices
- External Storage Connection
- Audio/video Peripherals
- Gaming Equipment Interfaces
- Networking Adapters
- Automotive Systems
- Medical and Healthcare Equipment
