Introduction:

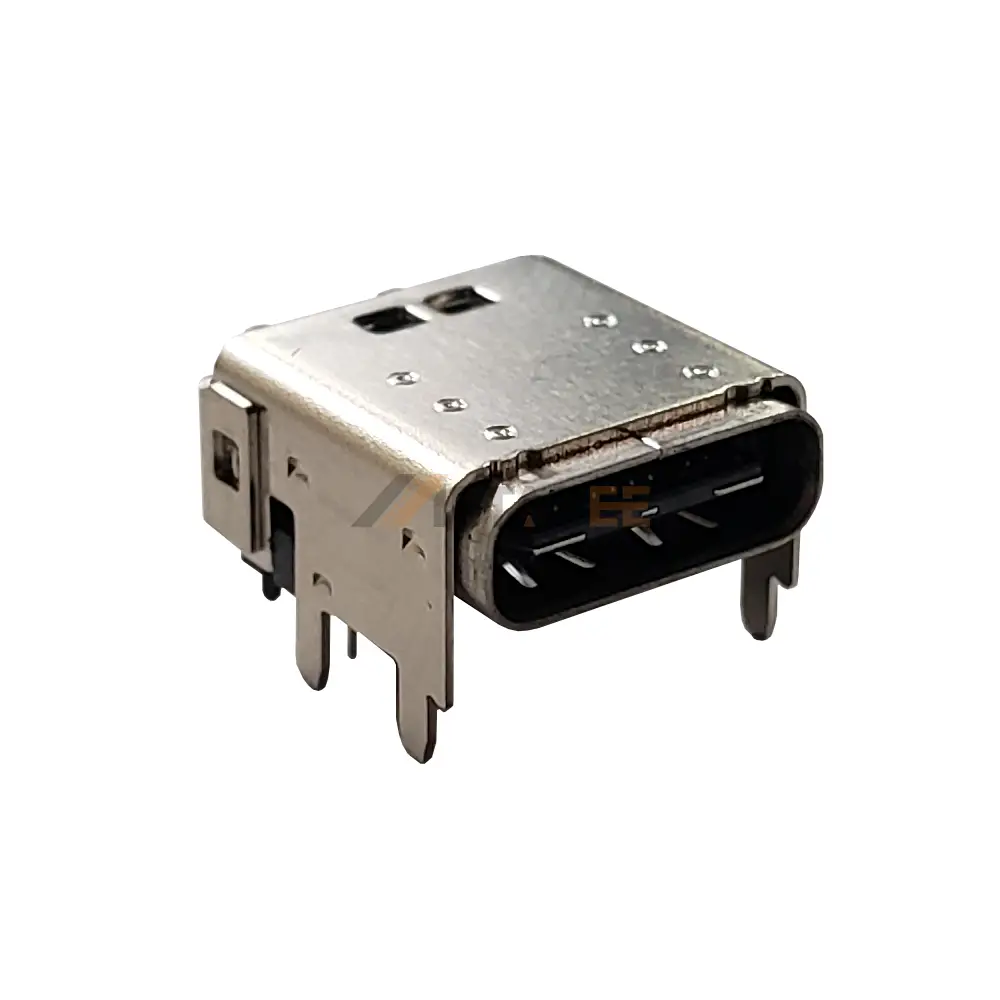

This USB 4.0 Gen 3 Type-C receptacle is engineered for high-bandwidth data transmission, supporting speeds up to 40Gbps. Featuring a 24-pin configuration and a Right Angle (R/A) orientation, this single-port connector is designed for PCB Through-Hole mounting, providing exceptional mechanical stability for high-density electronic assemblies.
Constructed with a rugged stainless steel shell and nickel plating, this connector offers superior durability and corrosion resistance. The internal contacts are crafted from high-grade copper alloy with gold plating to ensure maximum signal integrity and reliable conductivity. With a UL94V-0 flame retardant rating and an operating temperature range of -20°C to 105°C, it is built to perform in demanding industrial and consumer environments.
Key Features
- Ultra-Speed Data: Supports USB 4.0 Gen 3 protocols for blistering 40Gbps transfer rates.
- Precision Mounting: Right Angle (R/A) Through-Hole design for secure PCB attachment.
- Superior Materials: Nickel-plated stainless steel shell for enhanced structural life.
- High Conductivity: Gold-plated copper alloy contacts minimize signal loss.
- Thermal Resilience: Reliable performance within a wide -20°C to +105°C range.
- Certified Safety: UL94V-0-rated housing ensures high-level fire resistance.
Main Specifications:
General Information:
| Product No.: | USB-C40-S-RA-CS1-BK-TR | |
| Connector Series: | USB 4.0 Connectors | |
| Interface Type: | Type-C | |
| Brand: | Metabee | |
| Number of Contacts: | 24 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Receptacle | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Right angle | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Through Hole | |
| Shielding: | Shielded | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Stainless Steel | |
| Shell plating: | Nickel plated | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold plated | |
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Rated Current: | 1.25A, 5A | |
| Rated Voltage: | – |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -20℃ to +105℃ |
Applications of this USB 4.0 Gen 3 Type C Receptacle, 40Gbps:
USB 4.0 connectors are versatile interfaces that support both power delivery and data communication across consumer, industrial, and professional devices. Their standardization and plug-and-play nature make them one of the most ubiquitous connections in modern electronics.
Here are some key applications:
- Data Transfer
- Charging Mobile Devices
- External Storage Connection
- Audio/video Peripherals
- Gaming Equipment Interfaces
- Networking Adapters
- Automotive Systems
- Medical and Healthcare Equipment
