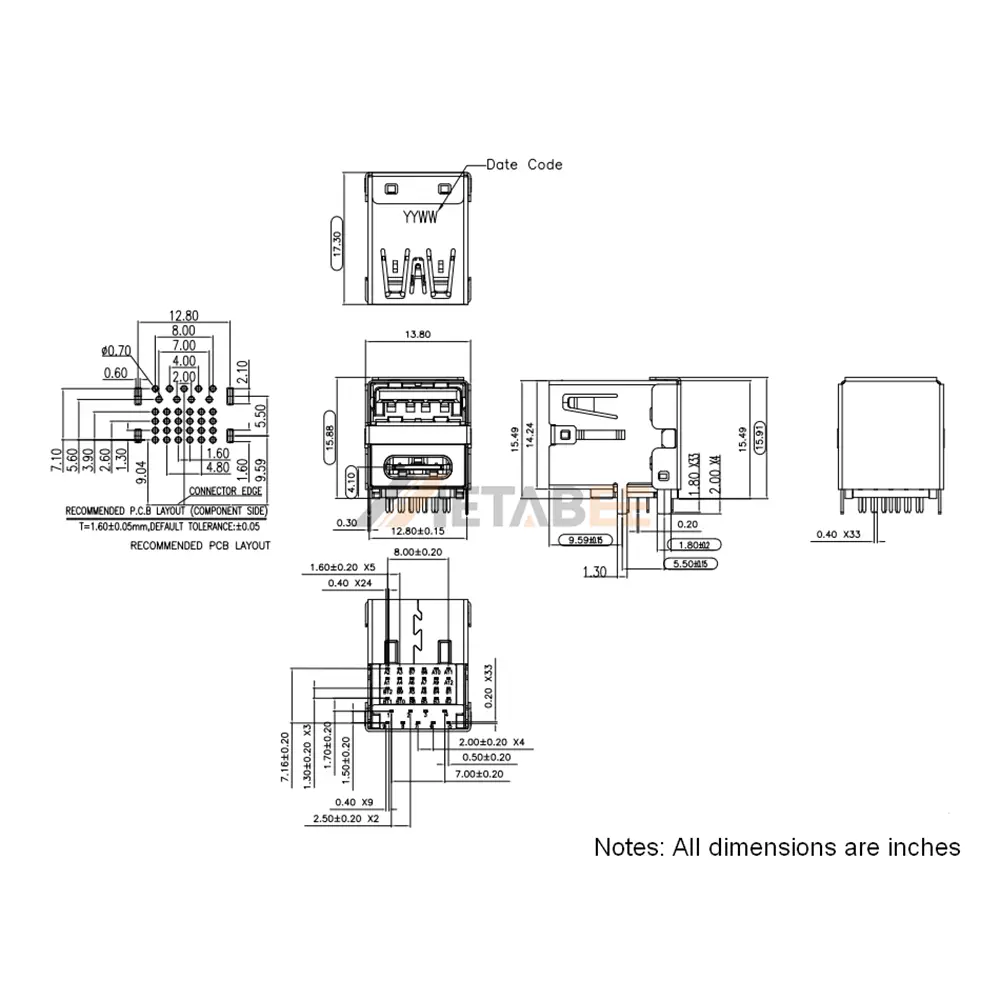

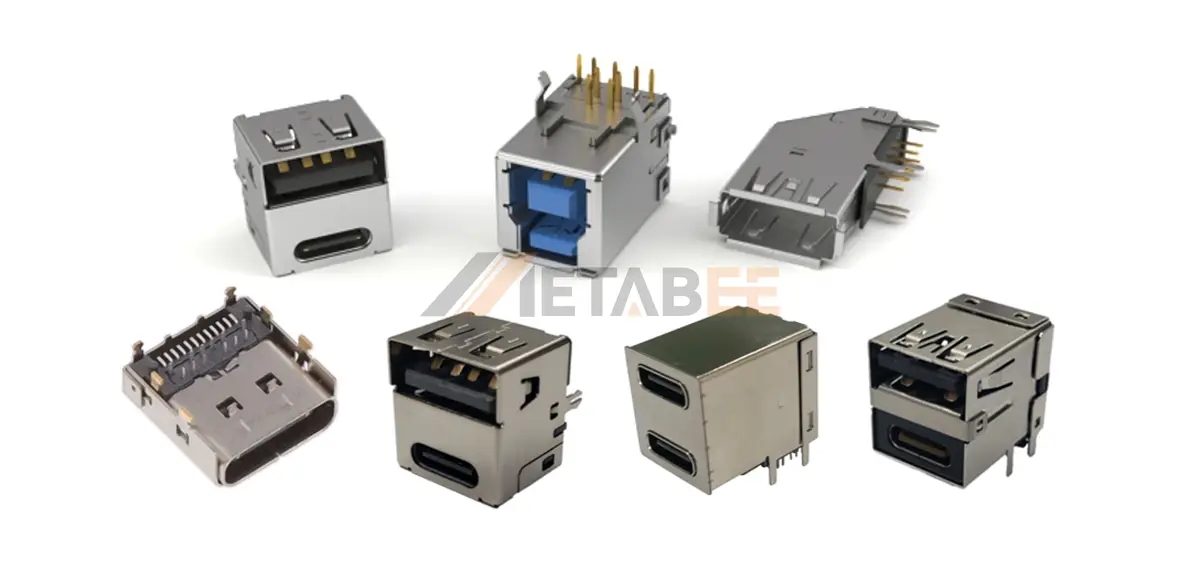

USB 3.0 Receptacle, Stacked Type-A over Type C, 9+24 Pin, PCB Thru-Hole, R/A
Introduction:
This high-performance USB 3.0 stacked receptacle is engineered for space-constrained PCB applications requiring versatile connectivity. Featuring a dual-layer design with a Type-A over Type-C configuration, this connector supports high-speed data transfer while maintaining a compact footprint. The Right Angle (R/A) orientation and PCB Thru-Hole mounting ensure a secure, mechanically stable connection to the board, making it ideal for docking stations, industrial computers, and consumer electronics.
Constructed for durability and reliability, the connector features a Nickel-plated Stainless Steel shell and Gold-plated Phosphor Bronze contacts to prevent corrosion and ensure superior conductivity. With a wide operating temperature range of -40°C to +85°C and a UL94V-0 flame retardant rating, this component is built to perform in demanding environments. It supports a rated current of 2A and a voltage of 250VAC, offering a robust power and data solution for modern hardware designs.
Key Features
- Space-Saving Design: Stacked Type-A and Type-C configuration maximizes PCB density.
- High Durability: Stainless Steel shell with Nickel plating for long-term corrosion resistance.
- Superior Conductivity: Gold-plated Phosphor Bronze contacts ensure stable signal integrity.
- Enhanced Stability: Right Angle, PCB Thru-Hole mounting for high mechanical retention.
- Wide Temp Range: Reliable operation in extreme conditions from -40°C to +85°C.
- Industry Standard: Meets UL94V-0 safety requirements for flame retardancy.
Main Specifications:
General Information:
| Product No.: | YC-USB-A3-C31-D-RA-CS1-TR | |
| Connector Series: | Stacked USB Connectors | |
| Connector Type: | USB-A and USB-C, Stacked | |
| Brand: | Metabee | |
| Number of Contacts: | 9+24 Pin | |
| Number of Ports: | Dual Port | |
| Connector Gender: | Receptacle | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Vertical | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Thru-Hole | |
| Shielding: | Shielded | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Copper Alloy | |
| Shell plating: | Nickel Plated | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold plated | |
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Rated Current: | 1.5A, 5A | |
| Rated Voltage: | 100VAC |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -40℃ to +85℃ |
Applications of this USB 3.0 Receptacle, Stacked Type-A over Type C:
USB connectors are versatile interfaces that support both power delivery and data communication across consumer, industrial, and professional devices. Their standardization and plug-and-play design make them among the most ubiquitous connectors in modern electronics.
Here are some key applications:
- Data Transfer
- Charging Mobile Devices
- External Storage Connection
- Audio/video Peripherals
- Gaming Equipment Interfaces
- Networking Adapters
- Automotive Systems
- Medical and Healthcare Equipment
