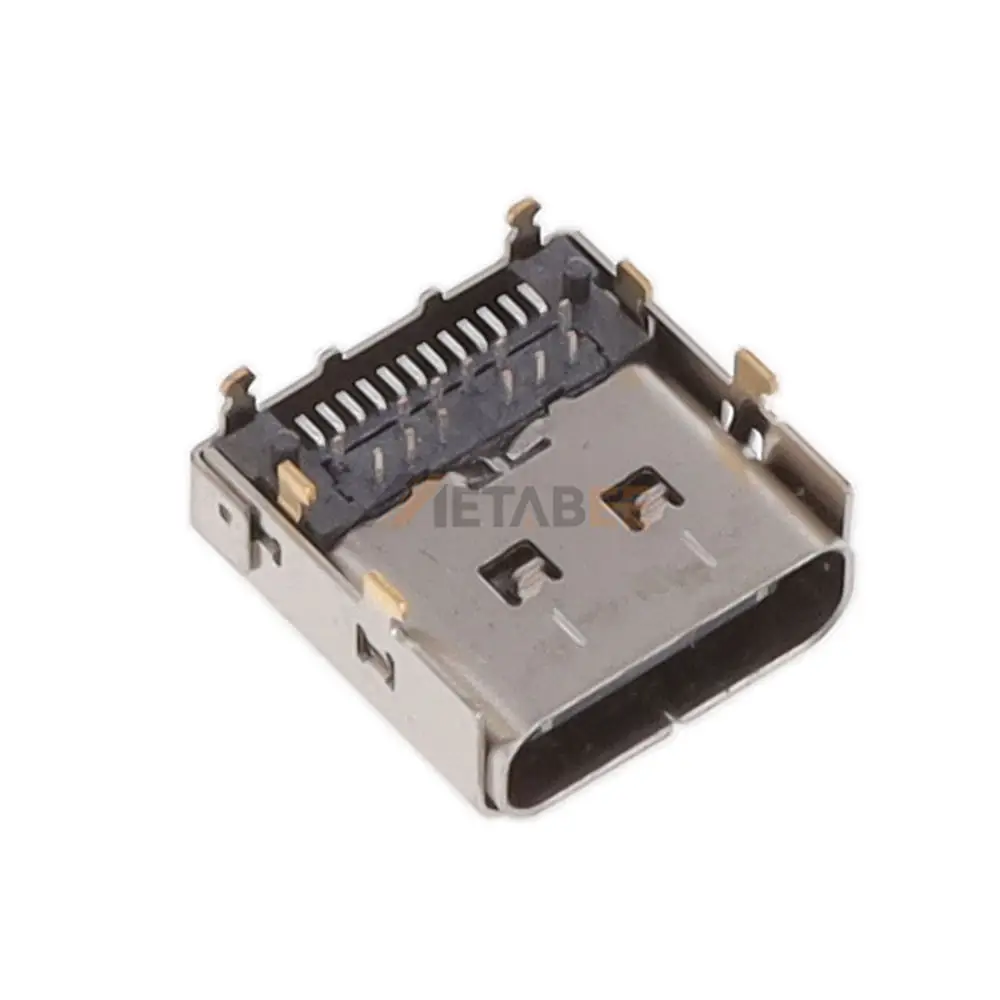

High-Retention USB 3.0 Female Connector, Type C, 24Pin, PCB THT, R/A
Introduction:
The high-retention USB 3.0 Type-C female connector is engineered for reliable, high-performance connectivity in compact electronic designs. Featuring a single-port Type-C interface with a right-angle PCB thru-hole mounting configuration, this receptacle ensures secure board attachment and optimized space utilization. Its high-retention design enhances mating stability, making it ideal for applications requiring frequent plug-in cycles and strong mechanical durability.
Built with a stainless steel shell and nickel plating, the connector provides excellent structural strength and corrosion resistance. The phosphor bronze contacts with gold plating ensure superior electrical conductivity, low contact resistance, and extended service life. Supporting multiple current ratings (0.25A, 1.25A, and 5A), it accommodates both data transmission and power delivery needs. With a UL94V-0 flammability rating and an operating temperature range from -40°C to +85°C, it delivers consistent and safe performance in demanding environments.
Key Features
- High-retention Type-C design for enhanced mating stability
- 24-pin configuration supports high-speed data and power transmission
- Right-angle PCB thru-hole mounting for robust installation
- Stainless steel shell with nickel plating for durability
- Gold-plated phosphor bronze contacts for reliable conductivity
- Wide operating temperature range (-40°C to +85°C), UL94V-0 compliant
Main Specifications:
General Information:
| Product No.: | YC-USB-C31-S-RA-CS12-BK-TR | |
| Connector Series: | Stacked USB Connectors | |
| Connector Type: | Type C | |
| Brand: | Metabee | |
| Number of Contacts: | 24 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Receptacle | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Right Angle | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Through Hole | |
| Shielding: | Shielded | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Stainless Steel | |
| Shell plating: | Nickel Plated | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold plated | |
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Rated Current: | 0.25A, 1.25A, 5A | |
| Rated Voltage: | – |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -40℃ to +85℃ |
Applications of this High-Retention USB 3.0 Female Connector:
USB connectors are versatile interfaces that support both power delivery and data communication across consumer, industrial, and professional devices. Their standardization and plug-and-play design make them among the most ubiquitous connectors in modern electronics.
Here are some key applications:
- Data Transfer
- Charging Mobile Devices
- External Storage Connection
- Audio/video Peripherals
- Gaming Equipment Interfaces
- Networking Adapters
- Automotive Systems
- Medical and Healthcare Equipment
