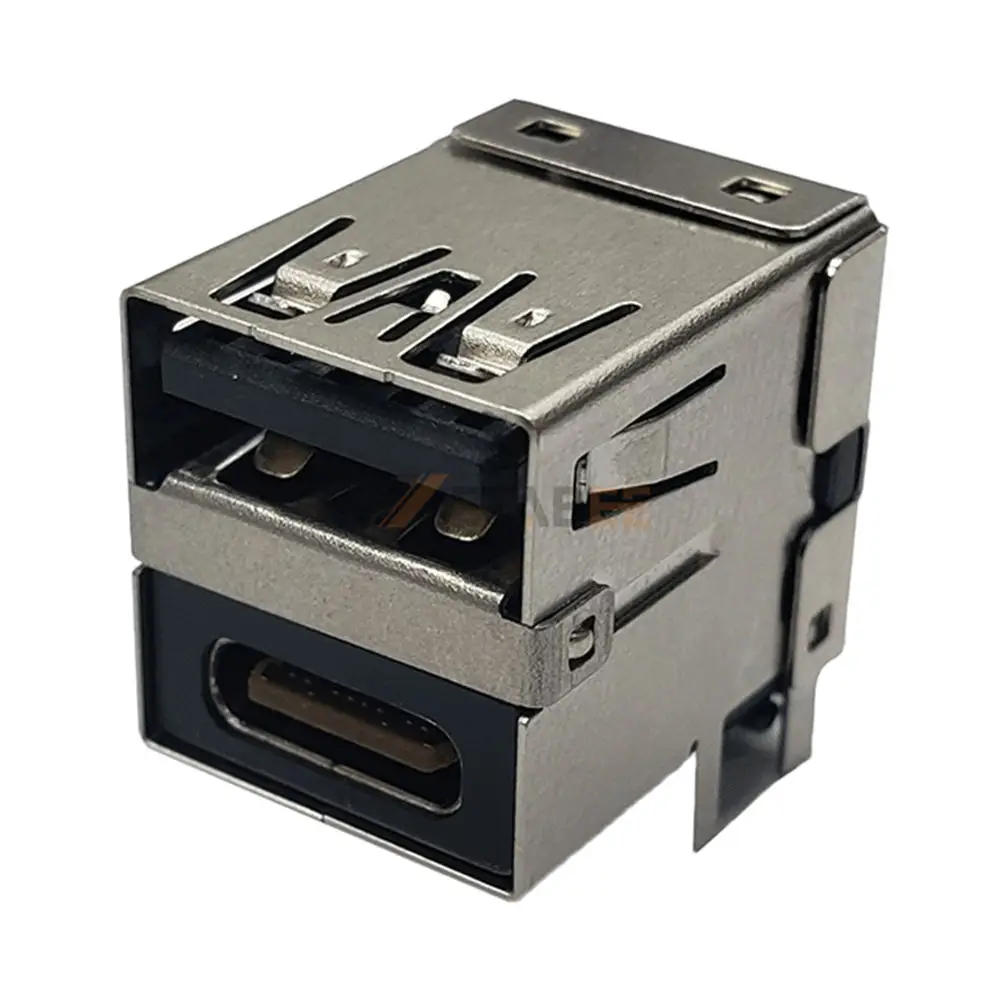

USB 3.0 Female Connector, Stacked Type A over Type C, 9+24 Pin, THT, R/A
Introduction:
The USB 3.0 female connector is a high-density, dual-port interconnect solution engineered for advanced PCB applications requiring both legacy and next-generation USB compatibility. Featuring a stacked USB-A over USB-C configuration, this connector optimizes board space while enabling seamless integration of high-speed data transmission and power delivery in compact electronic designs.
Constructed with a durable copper alloy shell and nickel plating, this connector ensures superior mechanical strength and EMI shielding. The gold-plated copper alloy contacts deliver excellent conductivity, low contact resistance, and enhanced durability for repeated mating cycles. Designed for through-hole PCB mounting with a right-angle orientation, it provides robust board retention and reliable soldering performance in demanding environments.
With a current rating of 1.5A (USB-A) and up to 5A (USB-C), this connector supports both standard data transfer and high-power applications. It operates reliably across a wide temperature range of -40°C to +85°C and meets UL94V-0 flammability standards, ensuring safety and performance in industrial, consumer electronics, and embedded systems.
Key Features
- Stacked USB-A over USB-C dual-port design (9+24 pin)
- Right-angle, through-hole PCB mounting for secure installation
- Copper alloy housing with nickel plating for durability and shielding
- Gold-plated contacts for high conductivity and long lifespan
- Rated current: 1.5A (USB-A) / 5A (USB-C)
- Wide operating temperature: -40°C to +85°C, UL94V-0 compliant
Main Specifications:
General Information:
| Product No.: | YC-USB-A3-C31-D-RA-CS1 | |
| Connector Series: | Stacked USB Connectors | |
| Connector Type: | USB-A and USB-C, Stacked | |
| Brand: | Metabee | |
| Number of Contacts: | 9+24 Pin | |
| Number of Ports: | Dual Port | |
| Connector Gender: | Receptacle | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Vertical | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Thru-Hole | |
| Shielding: | Shielded | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Copper Alloy | |
| Shell plating: | Nickel Plated | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold plated | |
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Rated Current: | 1.5A, 5A | |
| Rated Voltage: | – |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -40℃ to +85℃ |
