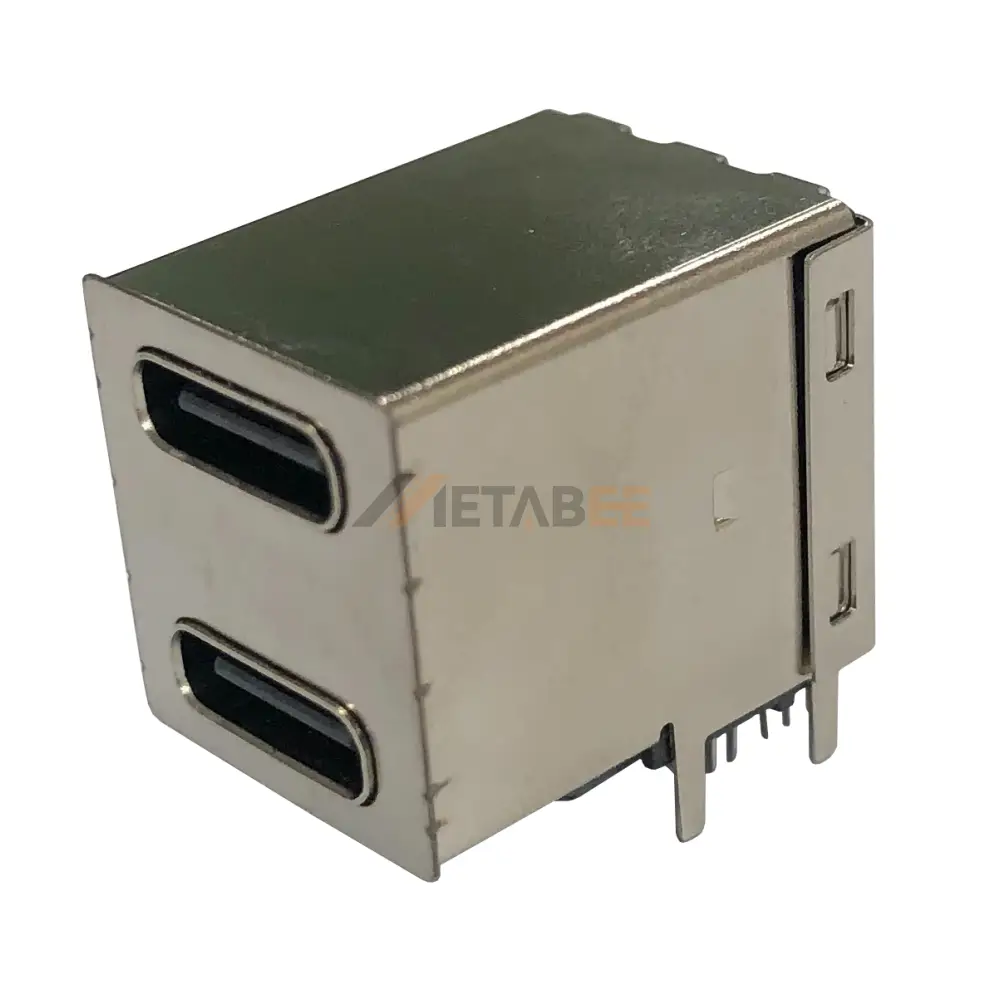

Stacked USB 3.0 Type C Receptacle, 24+24 Pin, PCB Thru-Hole, R/A
Introduction:
The Stacked USB 3.0 Type-C receptacle is a high-density dual-port connector engineered for advanced PCB applications requiring compact integration and enhanced functionality. Featuring a stacked USB-A over USB-C interface, this right-angle receptacle optimizes board space while enabling simultaneous connectivity. Designed with a robust PCB thru-hole mounting structure, it ensures superior mechanical stability and reliable signal transmission in demanding environments.
Constructed with a durable copper alloy shell and nickel plating, this connector offers excellent resistance to corrosion and wear. The copper alloy contacts with gold plating deliver superior conductivity, low contact resistance, and long mating life. Supporting multiple current ratings (0.25A, 1.25A, and 5A), it is suitable for a wide range of power and data transmission requirements. With a UL94V-0 flammability rating and an operating temperature range of -40°C to +85°C, it guarantees safe and stable performance in industrial and commercial applications.
Key Features
- Stacked USB-A over USB-C design for space-saving dual-port integration
- 24+24 pin configuration ensures high-speed data and power efficiency
- Right-angle PCB thru-hole mounting for secure and stable installation
- Copper alloy shell with nickel plating for enhanced durability
- Gold-plated contacts for optimal conductivity and long service life
- Wide operating temperature range (-40°C to +85°C) with UL94V-0 rating
Main Specifications:
General Information:
| Product No.: | YC-USB-C31-D-RA-CS2 | |
| Connector Series: | Stacked USB Connectors | |
| Connector Type: | Type C, Stacked | |
| Brand: | Metabee | |
| Number of Contacts: | 24+24 Pin | |
| Number of Ports: | Dual Port | |
| Connector Gender: | Receptacle | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Right Angle | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Thru-Hole | |
| Shielding: | Shielded | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Copper Alloy | |
| Shell plating: | Nickel Plated | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold plated | |
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Rated Current: | 0.25A, 1.25A, 5A | |
| Rated Voltage: | – |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -40℃ to +85℃ |
Applications of this Stacked USB 3.0 Type C Receptacle:
USB connectors are versatile interfaces that support both power delivery and data communication across consumer, industrial, and professional devices. Their standardization and plug-and-play design make them among the most ubiquitous connectors in modern electronics.
Here are some key applications:
- Data Transfer
- Charging Mobile Devices
- External Storage Connection
- Audio/video Peripherals
- Gaming Equipment Interfaces
- Networking Adapters
- Automotive Systems
- Medical and Healthcare Equipment
