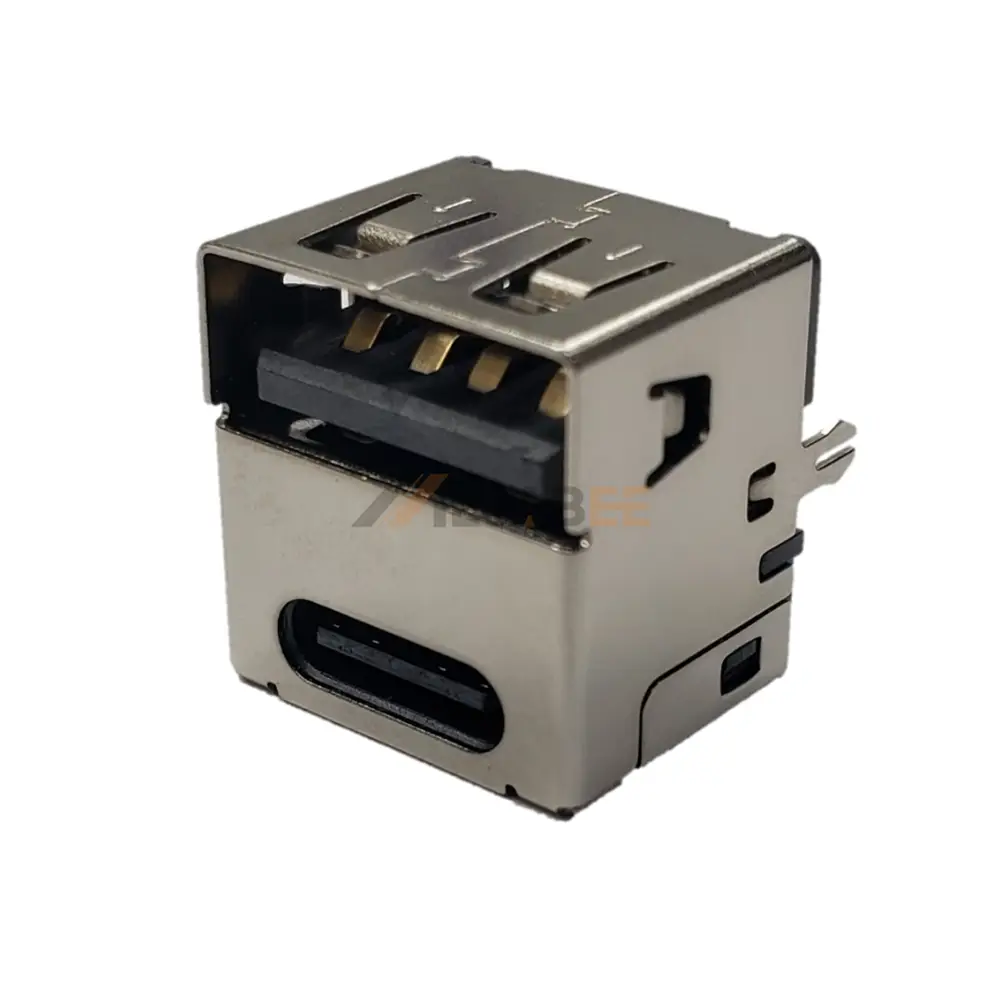

Stacked USB 3.0 Type-A over USB 2.0 Type C Connector, Receptacle, 4+24 Pin, THM, Vertical
Introduction:
The stacked USB 3.0 Type-A over USB 2.0 Type-C connector offers a space-saving dual-port solution for high-density PCB applications. This innovative stacked configuration combines a high-speed USB 3.0 Type-A port with a versatile USB 2.0 Type-C port in a single vertical orientation, streamlining board layout while maximizing functionality. Engineered for through-hole mounting (THM), it ensures robust mechanical retention and reliable solder joint performance. The connector features a copper alloy shell with a nickel-plated finish for superior durability and corrosion resistance, while the contacts are crafted from copper alloy with gold plating to guarantee excellent conductivity and long-term signal integrity. With a wide operating temperature range of -40°C to +85°C and a UL94V-0 flammability rating, this component is built to perform reliably in demanding environments.
This receptacle supports a current rating of 5A for the USB-A port and 8A for the USB-C port, making it suitable for power-intensive applications. The 4+24 pin configuration ensures full compliance with both USB 3.0 and USB 2.0 interfaces, delivering high-speed data transfer alongside reliable power delivery. Its vertical mounting orientation simplifies assembly and is ideal for systems where horizontal board space is at a premium. Whether used in industrial equipment, consumer electronics, or communication devices, this stacked connector provides a compact, durable, and high-performance interconnect solution.
Key Features
- Stacked Dual-Port Design – Combines USB 3.0 Type-A and USB 2.0 Type-C in one vertical receptacle to save PCB space.
- Robust Construction – Copper alloy shell with nickel plating and gold-plated contacts ensures durability and reliable signal transmission.
- High Current Capacity – Rated at 5A (USB-A) and 8A (USB-C) to support power-demanding applications.
- Secure Through-Hole Mounting – Vertical THM design provides strong mechanical anchoring for long-term reliability.
- Wide Temperature Range – Operates from -40°C to +85°C, suitable for harsh environments.
- Flame Retardant – UL94V-0 rated housing for enhanced safety.
Main Specifications:
General Information:
| Product No.: | YC-USB-C31-A-D-VT-CS1 | |
| Connector Series: | Stacked USB Connectors | |
| Connector Type: | USB-A and USB-C, Stacked | |
| Brand: | Metabee | |
| Number of Contacts: | 4+24 Pin | |
| Number of Ports: | Dual Port | |
| Connector Gender: | Receptacle | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Vertical | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Thru-Hole | |
| Shielding: | Shielded | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Copper Alloy | |
| Shell plating: | Nickel Plated | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold plated | |
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Rated Current: | 5A, 8A | |
| Rated Voltage: | – |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -40℃ to +85℃ |
Applications of this Stacked USB 3.0 Type-A over USB 2.0 Type-C Connector:
USB connectors are versatile interfaces that support both power delivery and data communication across consumer, industrial, and professional devices. Their standardization and plug-and-play design make them among the most ubiquitous connectors in modern electronics.
Here are some key applications:
- Data Transfer
- Charging Mobile Devices
- External Storage Connection
- Audio/video Peripherals
- Gaming Equipment Interfaces
- Networking Adapters
- Automotive Systems
- Medical and Healthcare Equipment
