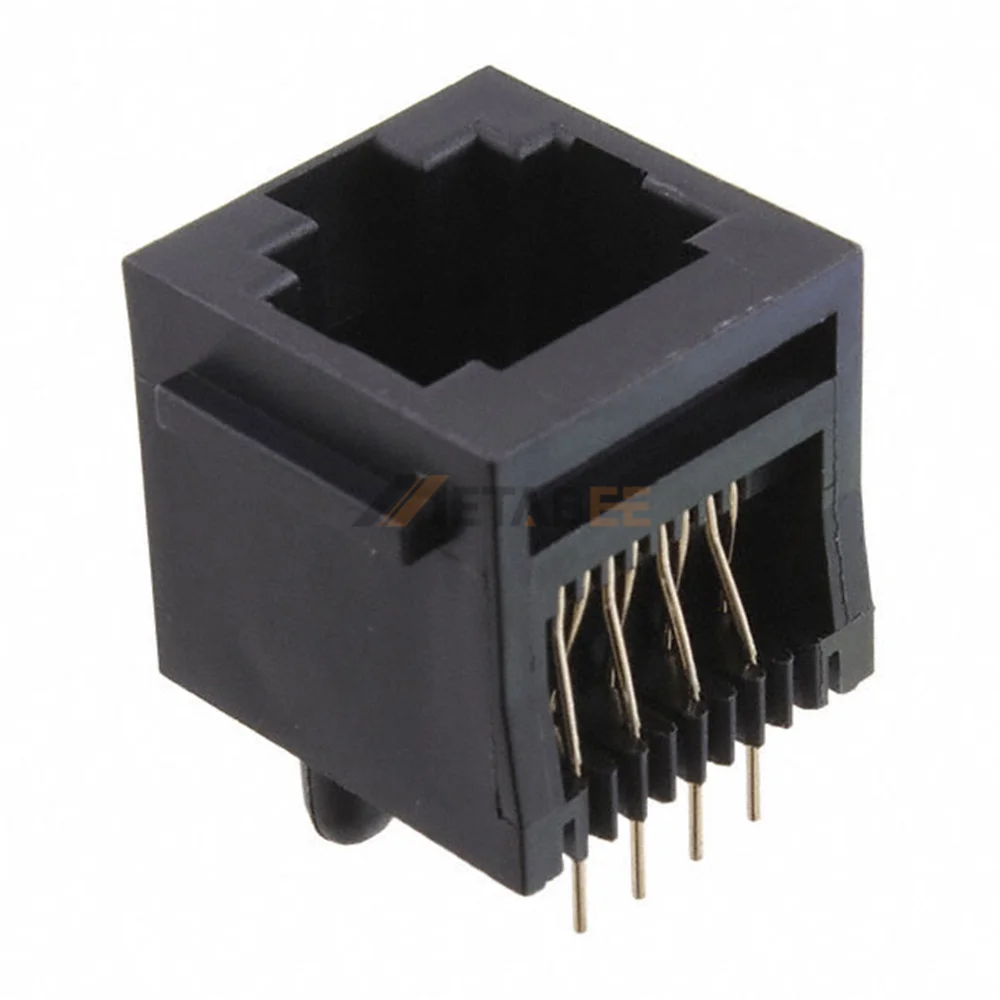

Unshielded Vertical RJ45 8 Pin PCB Mount Jack, 1 Port, 8P8C, Tab-Up, Through Hole, R/A, No LED
Introduction:
This is a single port unshielded vertical RJ45 8 pin connector designed for stable top-entry through hole mounting on printed circuit boards. It features a durable black PBT housing that maintains high thermal stability during soldering and provides an insulation resistance of 500MΩ Min. The Phosphor Bronze contacts are finished with Gold over Nickel plating to ensure superior conductivity and a consistent 1.5A current rating. By utilizing a Tab-Up vertical orientation, this component effectively optimizes board space while handling dielectric voltages up to 1000 VDC for electrical safety. The jack operates reliably across a wide temperature range of -40°C to +85°C to ensure long-term performance. Technicians utilize this modular interface for standard networking hardware and telecommunication systems requiring vertical connectivity.
Key Features
- Vertical Orientation: Optimizes top-entry mounting for compact PCB layouts.
- Gold Plated Contacts: Delivers superior conductivity and lasting oxidation resistance.
- 8P8C Interface: Provides standard modular connectivity for various networking systems.
- High Dielectric Strength: Withstands 1000 VDC for enhanced electrical safety.
- Durable PBT Housing: Performs reliably between -40°C and +85°C environments.
Main Specifications:
General Information:
| Product No.: | MTJ-883X1 | |
| Series: | MTJ | |
| Category: | Single Port RJ45 Jack | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Vertical | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Latch Direction: | Tab-Up | |
| Shielding: | Unshielded | |
| LED indicator: | No LED |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 150V AC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min | |
| Dielectric withstanding voltage: | 1000 VDC or AC Peak for 1 minute |
Materials and Plating:
| Housing Material: | PBT | |
| Housing Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Phosphor Bronze, Tin Plated |
Environmental:
| Operating Temperature: | -40℃ to +125℃ | |
| Flammability Rating: | UL 94 V-0 |
Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
Factory pricing and exceptional product quality. OEM & ODM Services. Get a free quote now!
Metabee is a professional connector manufacturer from China. We can provide all kinds of modular jacks, plugs & couplers.
