Unshielded RJ45 Female Modular Connector, Single Port, 8P8C, Tab-Up, Through Hole, R/A, Grey Insulator, No LED
Introduction:
This is an unshielded single port RJ45 female modular connector designed for stable through hole mounting on networking circuit boards. It features a durable PBT housing with a professional Grey insulator and provides a high insulation resistance of 1000MΩ Min. The Phosphor Bronze contacts are plated with Gold over Nickel to maintain high conductivity and 1.5A current support. By utilizing a Tab-Up right angle configuration, the component effectively saves vertical board space while ensuring stable electrical performance. It withstands peak dielectric voltages of 1000 VDC to ensure user safety across a wide temperature range from -40°C to +85°C. Technicians utilize this modular interface for standard telecommunication systems and data networking hardware where unshielded connectivity is required.
Key Features
- 8P8C RJ45 Design: Provides standard modular connectivity for networking hardware.
- Tab-Up Configuration: Specifically oriented to optimize specialized board layouts.
- Gold Plated Contacts: Ensures superior conductivity and lasting oxidation resistance.
- High Insulation Resistance: Maintains 1000MΩ Min for enhanced electrical safety.
- Grey PBT Housing: Durable insulator performs reliably within -40 to +85°C.
Main Specifications:
General Information:
| Product No.: | MTJ-882BX2 | |
| Series: | MTJ | |
| Category: | Single Port RJ45 Jack | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Latch Direction: | Tab-Up | |
| Shielding: | Unshielded | |
| LED indicator: | No LED |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 125V AC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 1000mΩ Min | |
| Dielectric withstanding voltage: | 1000 VDC or AC Peak for 1 minute |
Materials and Plating:
| Housing Material: | PBT | |
| Housing Color: | Grey | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | N/A |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |

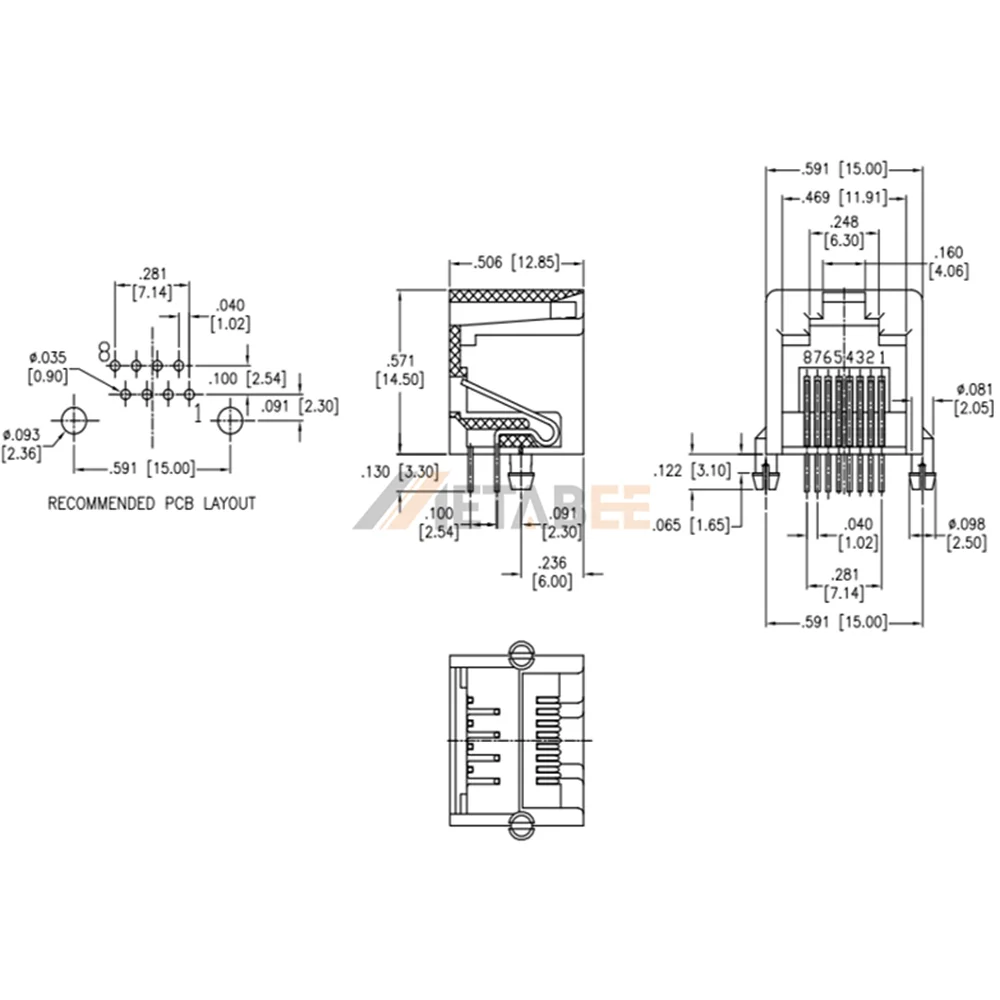

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
