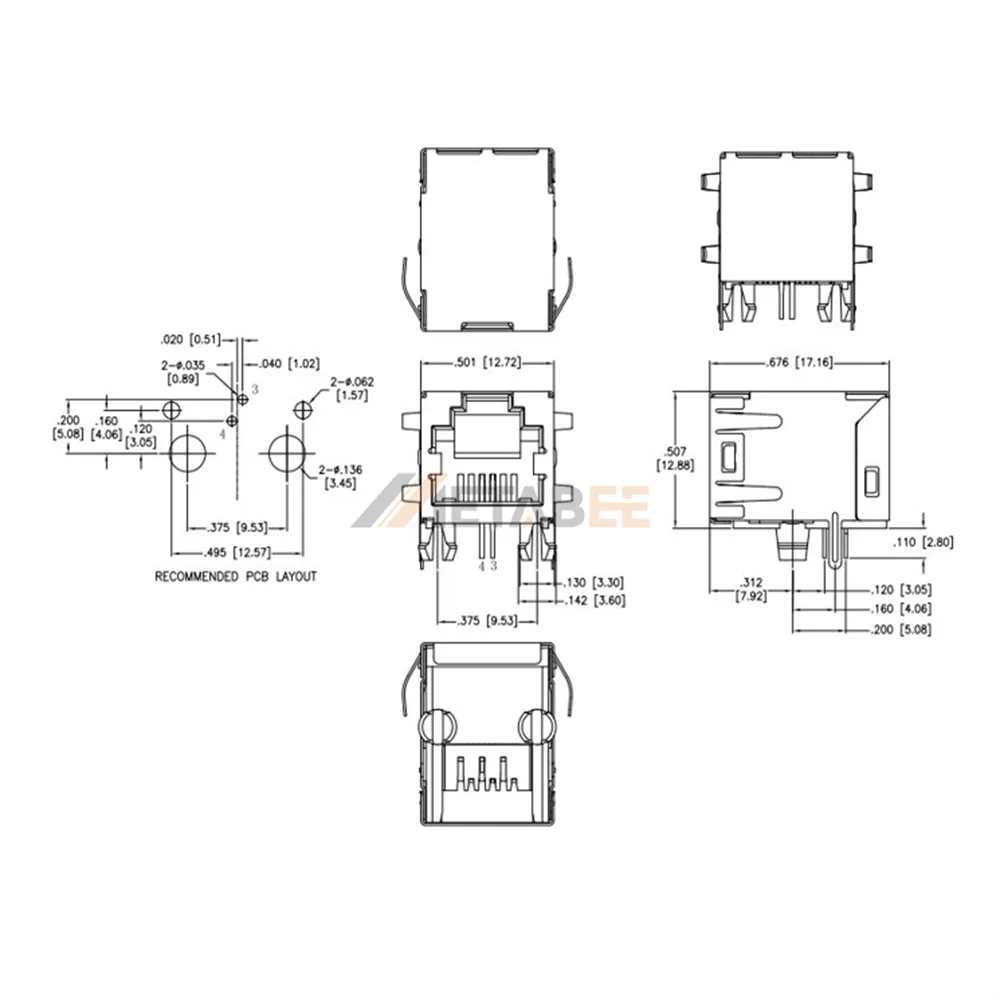

Unshielded 6P2C RJ11 Modular Jack Connector, Through Hole, Right Angle, Tab-Up, No LED
Introduction:
This is a single port unshielded 6P2C RJ11 modular jack connector designed for stable right angle through hole mounting on printed circuit boards. It is constructed with a hi-temp thermoplastic LCP housing that survives intense heat during industrial soldering processes without warping. The Phosphor Bronze contacts feature a premium Gold finish to ensure a low-resistance path and a standard 1.5A current rating. Utilizing a Tab-Up configuration, this component effectively saves vertical board space while providing reliable voice-grade connectivity across a wide -40°C to +85°C range. Technicians utilize this durable modular interface for standard telecommunication equipment and data networking hardware requiring secure board-to-cable links.
Key Features
- RJ11 6P2C Interface: Supports standard modular connectivity for voice networking systems.
- LCP Housing Material: Survives intense heat during industrial soldering processes.
- Gold Plated Contacts: Delivers superior conductivity and lasting signal stability.
- Tab-Up Orientation: Optimizes vertical space for specialized PCB layouts.
- Industrial Temp Range: Performs reliably between -40°C and +85°C.
Main Specifications:
General Information:
| Product No.: | MTJ-62ATX1-FSD-PG4-HT | |
| Series: | MTJ | |
| Category: | Single Port RJ11 Jack | |
| Product Type: | RJ11 Jack | |
| Number of Positions/Contacts: | 6P2C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Latch Direction: | Tab-Up | |
| Shielding: | Unshielded | |
| LED indicator: | No LED |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 125V AC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min | |
| Dielectric withstanding voltage: | 1000 VAC for 1 minute |
Materials and Plating:
| Insulator Material: | Hi-temp thermoplastic(LCP) | |
| Insulator Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | SUS304, Thickness, 0.2mm PRE-Soldering |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |
Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
