Introduction:
This surface mount pogo pin is a vertical connector engineered for precision board-to-board interfaces where space is limited. It features a compact 4.18mm height and a short 0.5mm working stroke that delivers a 100gf spring force for secure contact. The component is rated for 2A and 5V, utilizing brass hardware with a 10u” gold plating to maintain a low contact resistance of 30 mohms. An internal ball and insulating spring design further enhance electrical stability during its 30,000 cycle lifespan. This pogo pin provides reliable vertical connectivity for mobile devices and portable electronics operating between -30°C and +85°C.
Key Features
- High Force: 100gf spring force ensures secure electrical contact.
- SMT Design: Surface mount design enables automated assembly on PCBs.
- Internal Ball: Durable ball design improves current flow stability.
- Gold Plating: Gold plating over brass maintains 30 mohms resistance.
- Compact Space: 4.18mm height optimizes limited vertical board space.
Main Specifications:
General Information:
| Product No.: | PH-MVF-3645-C1-10-10 | |
| Product Family: | Spring Loaded Pins | |
| Number of Positions/Contacts: | 1 | |
| Gender: | Male | |
| Mounting Orientation: | Vertical | |
| Mounting Type: | Surface Mount | |
| Termination Method: | Solder | |
| Initial Height (mm): | 4.18mm | |
| Working Stroke (mm): | 0.5mm | |
| Spring Force: | 100±20gf | |
| Life Test: | 30,000 Cycles |
Electrical:
| Rated Current: | 2A Max | |
| Rated Voltage: | 5V DC | |
| Contact Resistance: | 30mΩ Max |
Materials and Plating:
| Plunger Material: | Brass, 10u” Gold over Nickel plated | |
| Barrel Material: | Brass, 10u” Gold over Nickel plated | |
| Spring Material: | SUS304, Insulating spring |
Environmental:
| Operating Temperature: | -30°C to +85°C | |
| Flammability Rating: | UL 94 V-0 |
Types of Pogo Pins

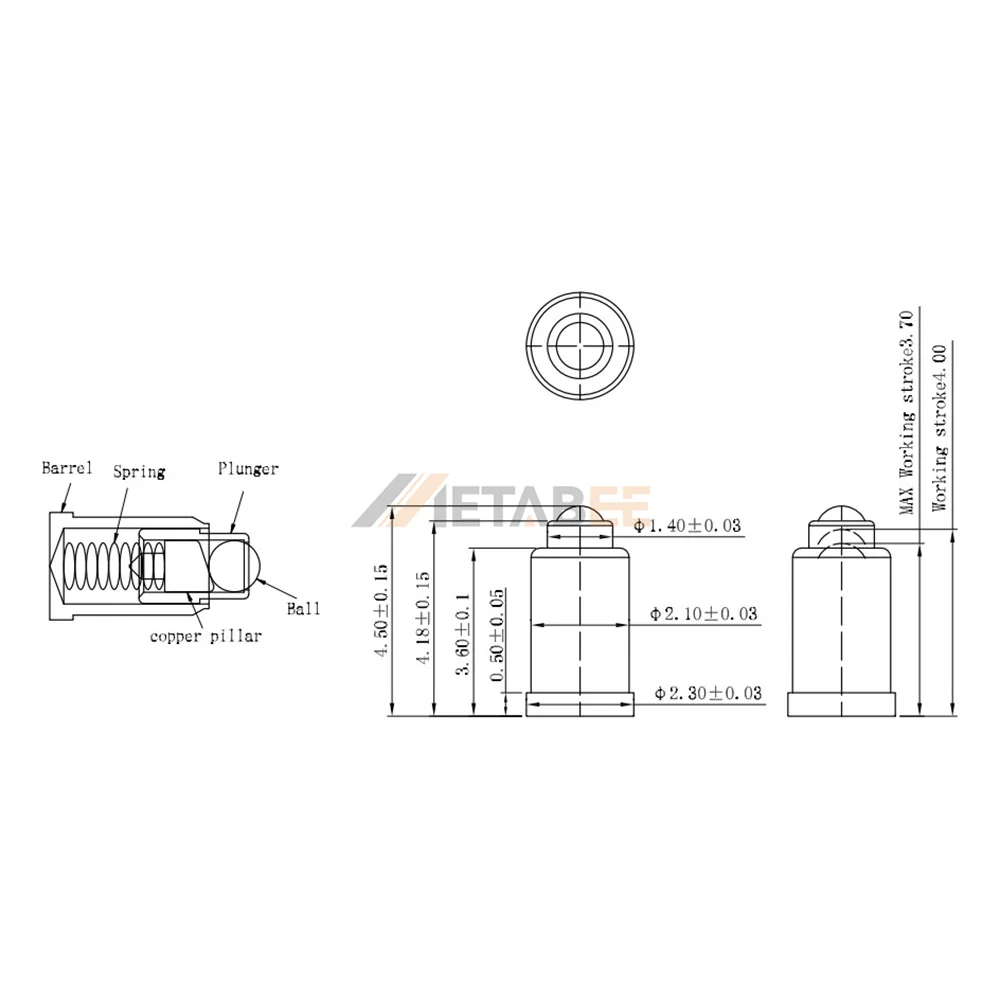

Structure of Pogo Pin Connector
Applications:
Pogo pin connectors, also known as spring-loaded pin connectors, provide reliable electrical contact for power, signal, and data transmission. Their spring-loaded design enables stable connections and repeated mating cycles.
- Consumer Electronics
- Wearable Devices
- Charging Docks & Cradles
- Smart Home & IoT Devices
- Medical Equipment
- Industrial Automation
- Automotive Electronics
- Custom OEM & ODM Solutions
