Introduction:
The RJ45 connector with magnetics is a high-density 2×4 stacked multi-port component used for industrial Ethernet applications. Reliable 10/100 Base-T network speeds remain consistent across a wide industrial temperature range from -40 to 85 degrees Celsius. A robust nickel-plated brass shield encloses the black thermoplastic housing to block electromagnetic interference effectively during operation. Precise component positioning on the PCB relies on the integrated board guide and solder retention features. Visual status updates rely on built-in yellow and green LED indicators positioned within the stacked tab-up and down profile. Furthermore, gold-plated phosphor bronze contacts strictly maintain electrical resistance below 20 milliohms in this RJ45 connector with magnetics. Secure mechanical termination uses a right-angle through-hole configuration for multi-port networking setups.
Key Features
- 2×4 Multi-port Profile: Connects eight Ethernet devices using a stacked module.
- 10/100 Base-T Speed: Supports reliable Fast Ethernet data transmission rates.
- Industrial Temperature Range: Operates flawlessly between -40 and 85 degrees Celsius.
- Full Brass Shielding: Blocks severe electromagnetic interference for clear signals.
- Stable THT Mounting: Integrated board guide ensures precise PCB alignment.
Main Specifications:
General Information:
| Product No.: | MTJG-8-88JX1-V-FSG-PG-LG-M4C-WOT | |
| Series: | MTJ | |
| Category: | RJ45 Magnetic Jacks | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 2×4 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Speed: | 10/100 Base-T | |
| Integral Magnetics: | Yes | |
| PoE Rating: | Non-PoE | |
| Latch Direction: | Tab-Up & Down | |
| Shielding: | Full Shielded | |
| LED indicator: | Left: Yellow, Right: Green |
Electrical:
| Rated Voltage: | 150V AC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min |
Materials and Plating:
| Insulator Material: | Thermoplastic | |
| Insulator Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Brass, Nickel plated |
Environmental:
| Operating Temperature: | -40°C ~ +85°C | |
| Flammability Rating: | UL 94 V-0 |

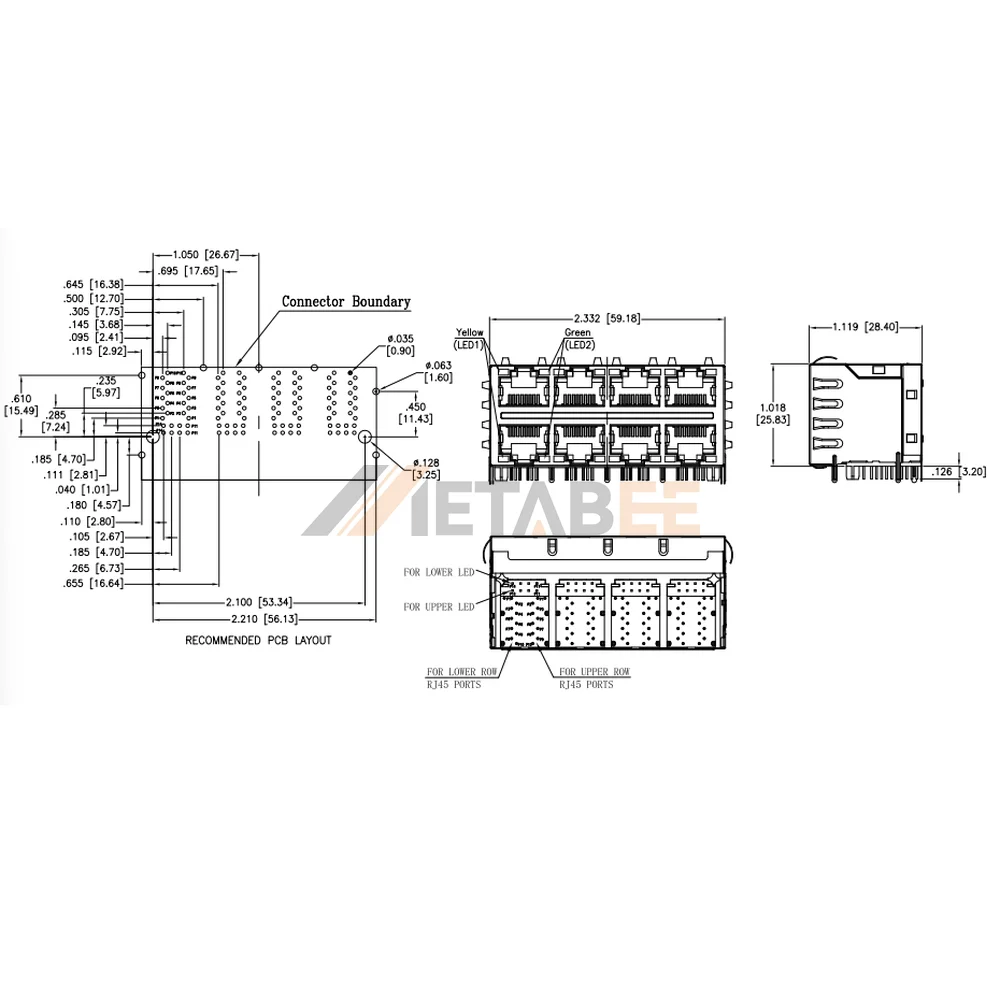

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
