Introduction:

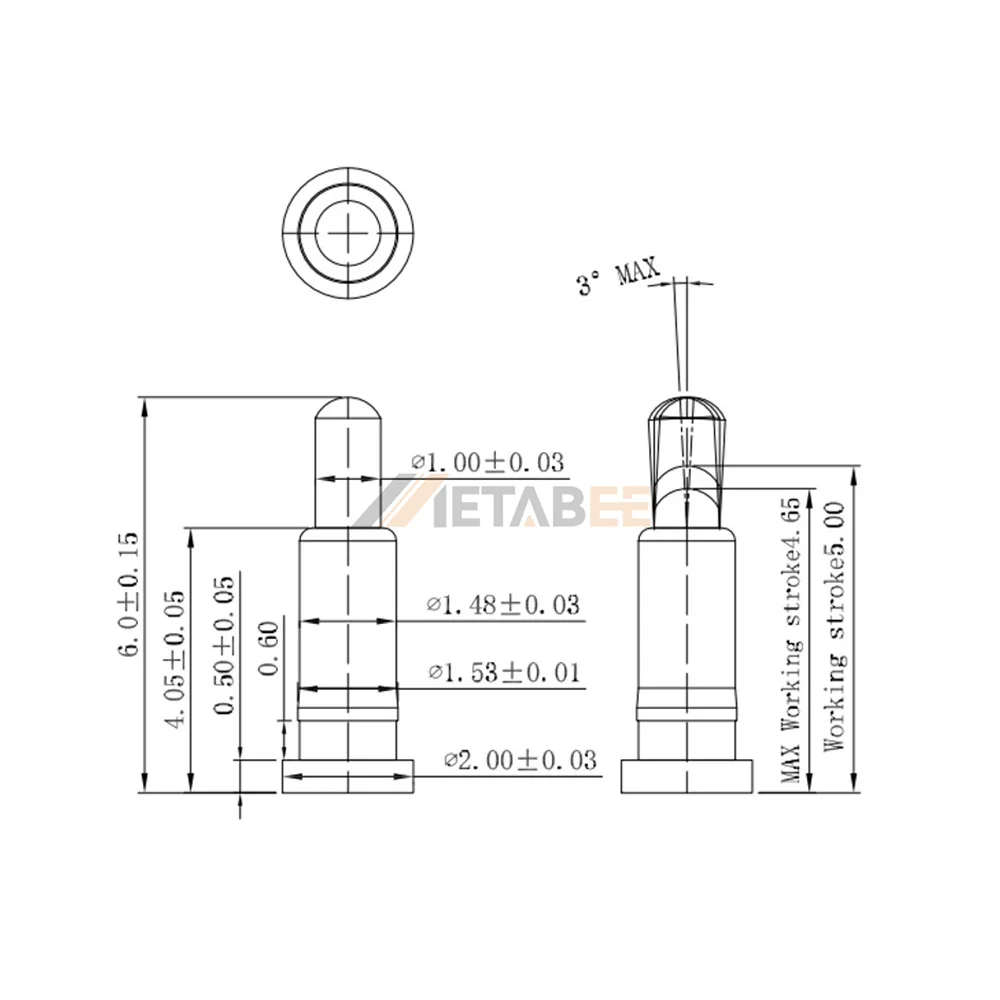

This spring loaded brass contact pin is a vertical SMT connector designed for automated pick-and-place assembly on a PCB. It features an initial height of 6mm and provides a 1mm working stroke with a consistent 100gf spring force to ensure contact stability. The terminal supports a 3A current and 12V DC, utilizing brass components with a 1u” gold plate to maintain a maximum resistance of 30 mohms. A SUS304 spring provides mechanical reliability over a 10,000 cycle lifespan within a -30°C to +85°C temperature range. This pin serves as a durable electrical link for power charging or signal transfer in modular electronic systems.
Key Features
- SMT Design: Surface mount orientation supports efficient automated assembly.
- Stable Contact: 100gf spring force ensures consistent electrical conductivity.
- Gold Plate: 1u” gold plating prevents oxidation and brass corrosion.
- Reliable Stroke: 1mm working stroke maintains dependable pressure for pins.
- Vertical Layout: 6mm initial height optimizes space on PCB boards.
Main Specifications:
General Information:
| Product No.: | PH-MVF-4060-C1 | |
| Product Family: | Spring Loaded Pins | |
| Number of Positions/Contacts: | 1 | |
| Gender: | Male | |
| Mounting Orientation: | Vertical | |
| Mounting Type: | Surface Mount | |
| Termination Method: | Solder | |
| Initial Height (mm): | 6mm | |
| Working Stroke (mm): | 1mm | |
| Spring Force: | 100±20gf | |
| Life Test: | 10,000 Cycles |
Electrical:
| Rated Current: | 3A Max | |
| Rated Voltage: | 12V DC | |
| Contact Resistance: | 30mΩ Max |
Materials and Plating:
| Plunger Material: | Brass, 1u” Gold plate | |
| Barrel Material: | Brass, 1u” Gold plate | |
| Spring Material: | SUS304 |
Environmental:
| Operating Temperature: | -30°C to +85°C | |
| Flammability Rating: | UL 94 V-0 |
Types of Pogo Pins
Structure of Pogo Pin Connector
Applications:
Pogo pin connectors, also known as spring-loaded pin connectors, provide reliable electrical contact for power, signal, and data transmission. Their spring-loaded design enables stable connections and repeated mating cycles.
- Consumer Electronics
- Wearable Devices
- Charging Docks & Cradles
- Smart Home & IoT Devices
- Medical Equipment
- Industrial Automation
- Automotive Electronics
- Custom OEM & ODM Solutions
