Introduction:
This smt pogo pin is a vertical spring connector designed for automated pick-and-place assembly on a PCB. It features a compact 4.4mm initial height and utilizes lead free brass components with a heavy 40u” gold over nickel plating for enhanced electrical stability. The terminal supports a 1A rated current and 12V DC, maintaining a maximum contact resistance of 50 mohms. A spring force of 30±10gf is provided over a 1mm working stroke to ensure consistent pressure. This pin functions as a precision signal or low-power interface in portable consumer electronics and compact medical devices.
Key Features
- SMT Design: Surface mount design supports efficient automated PCB assembly.
- Compact Height: Vertical 4.4mm height optimizes space in small electronics.
- Heavy Gold: Thick 40u” gold plating ensures reliable electrical contact.
- Consistent Force: Provides stable 30gf force over a 1mm stroke.
- Durable Life: Tested for 10,000 cycles for dependable internal links.
Main Specifications:
General Information:

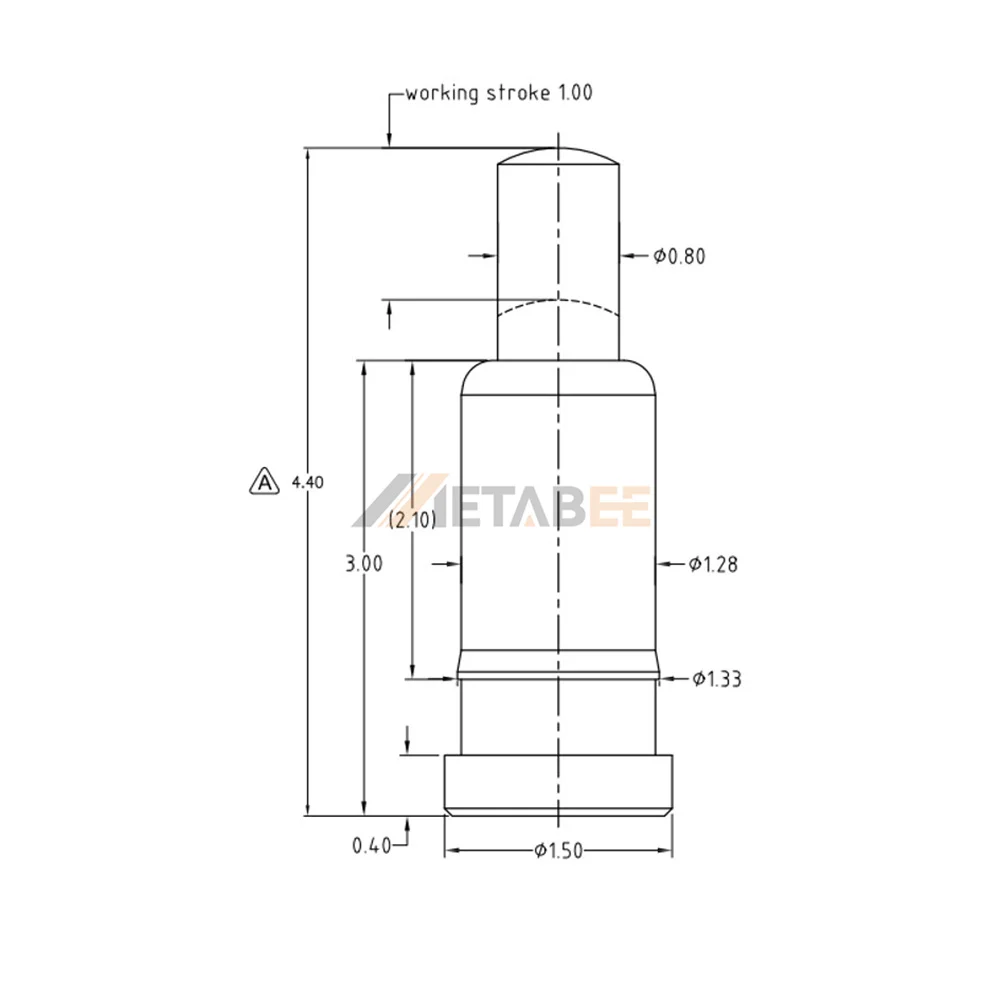

| Product No.: | PH-MVF-3044-40-40 | |
| Product Family: | Spring Loaded Pins | |
| Number of Positions/Contacts: | 1 | |
| Gender: | Male | |
| Mounting Orientation: | Vertical | |
| Mounting Type: | Surface Mount | |
| Termination Method: | Solder | |
| Initial Height (mm): | 4.4mm | |
| Working Stroke (mm): | 1mm | |
| Spring Force: | 30±10gf @ 1.0mm | |
| Life Test: | 10,000 Cycles |
Electrical:
| Rated Current: | 1A | |
| Rated Voltage: | 12V DC | |
| Contact Resistance: | 50mΩ Max |
Materials and Plating:
| Plunger Material: | Lead Free Brass, 40u” Gold over Nickel plated | |
| Barrel Material: | Lead Free Brass, 40u” Gold over Nickel plated | |
| Spring Material: | SUS, Gold Plated |
Environmental:
| Operating Temperature: | -55°C to +125°C | |
| Flammability Rating: | UL 94 V-0 |
Types of Pogo Pins
Structure of Pogo Pin Connector
Applications:
Pogo pin connectors, also known as spring-loaded pin connectors, provide reliable electrical contact for power, signal, and data transmission. Their spring-loaded design enables stable connections and repeated mating cycles.
- Consumer Electronics
- Wearable Devices
- Charging Docks & Cradles
- Smart Home & IoT Devices
- Medical Equipment
- Industrial Automation
- Automotive Electronics
- Custom OEM & ODM Solutions
