Introduction:

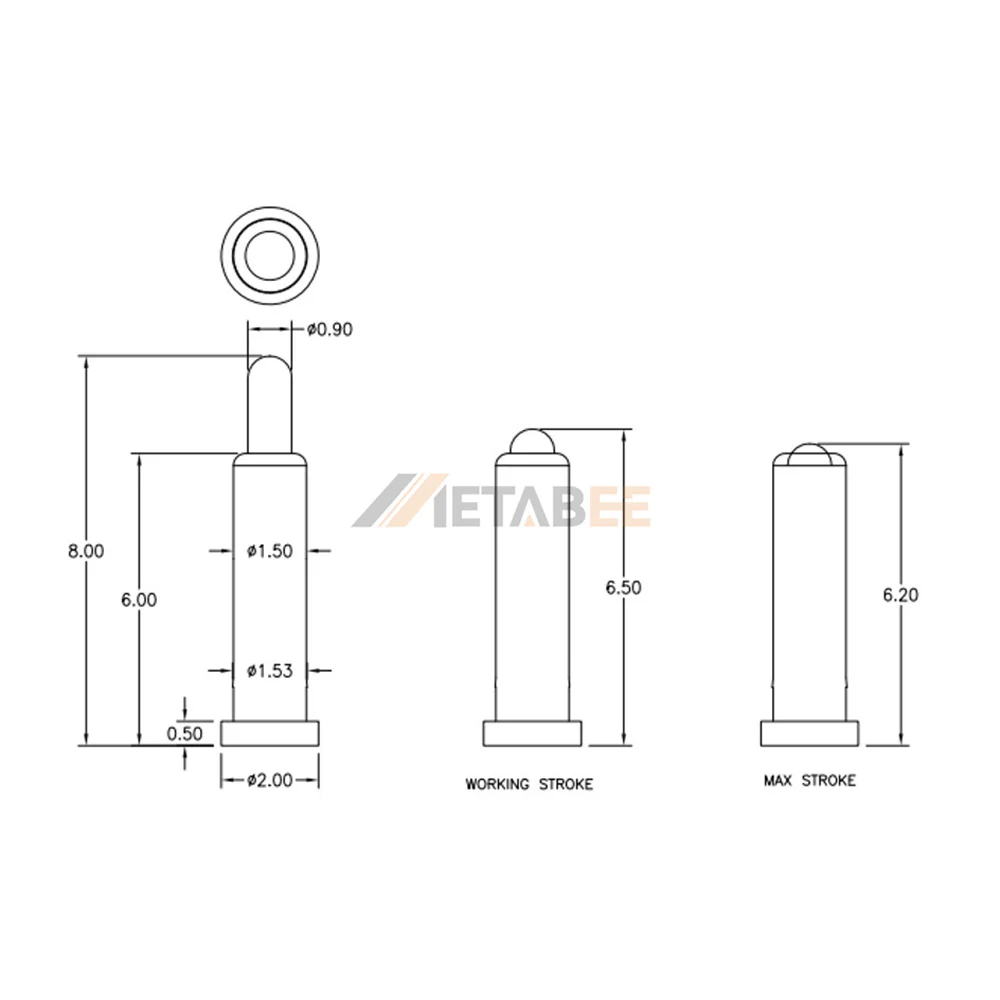

This smd spring loaded pin is a vertical brass terminal designed for surface mount assembly on a PCB. It features an 8mm initial height and a 1.3mm working stroke, providing a spring force of 60gf to ensure stable electrical contact. The terminal supports a 1A rated current and 5V DC, utilizing gold plated plunger and barrel components to maintain a maximum resistance of 30 mohms. A SUS stainless steel spring ensures mechanical reliability over 10,000 cycles within a -30°C to +85°C temperature range. This component functions as a reliable signal or low-power link for internal board-to-board connections in consumer electronics.
Key Features
- SMT Mounting: Surface mount design supports efficient automated PCB assembly.
- Long Stroke: 1.3mm working stroke ensures reliable electrical contact.
- Gold Plating: 1u” gold finish prevents oxidation and brass corrosion.
- Vertical Height: 8mm height optimizes internal vertical clearance for boards.
- SUS Spring: Stainless steel spring provides 10,000 cycles of mechanical life.
Main Specifications:
General Information:
| Product No.: | PH-MVF-6080-C1 | |
| Product Family: | Spring Loaded Pins | |
| Number of Positions/Contacts: | 1 | |
| Gender: | Male | |
| Mounting Orientation: | Vertical | |
| Mounting Type: | Surface Mount | |
| Termination Method: | Solder | |
| Initial Height (mm): | 8mm | |
| Working Stroke (mm): | 1.3mm | |
| Spring Force: | 60±20gf | |
| Life Test: | 10,000 Cycles |
Electrical:
| Rated Current: | 1A | |
| Rated Voltage: | 5V DC | |
| Contact Resistance: | 30mΩ Max |
Materials and Plating:
| Plunger Material: | Brass, 1u” Gold plate | |
| Barrel Material: | Brass, 1u” Gold plate | |
| Spring Material: | SUS304 |
Environmental:
| Operating Temperature: | -30°C to +85°C | |
| Flammability Rating: | UL 94 V-0 |
Types of Pogo Pins
Structure of Pogo Pin Connector
Applications:
Pogo pin connectors, also known as spring-loaded pin connectors, provide reliable electrical contact for power, signal, and data transmission. Their spring-loaded design enables stable connections and repeated mating cycles.
- Consumer Electronics
- Wearable Devices
- Charging Docks & Cradles
- Smart Home & IoT Devices
- Medical Equipment
- Industrial Automation
- Automotive Electronics
- Custom OEM & ODM Solutions
