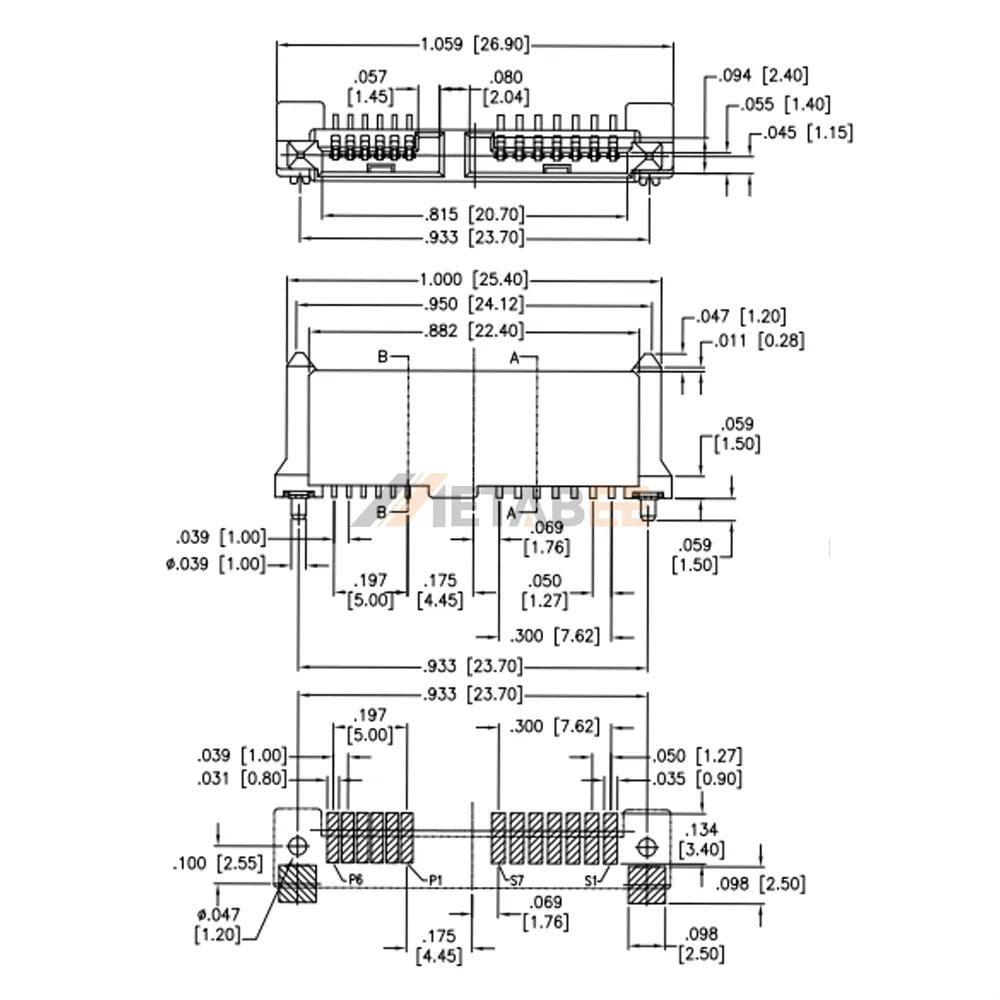

Slimline SATA Data & Power Receptacle, 13 Pin, Dual Port, SMT, R/A
Introduction:
Slimline sata data & power receptacle, 13 pin, dual port, smt, r/a. this female connector features a dual port design with 7+6 pin configuration and right angle mounting orientation. it is designed for pcb thru hole installation, making it suitable for compact storage applications.
Rated current 1.5a, contact resistance 30 mohms max, insulation resistance 1,000 mohms min, and dielectric withstanding voltage 500 vac. the connector meets ul94v-0 flammability rating and operates from -55°c to 85°c.
Key Features
- Female dual port, 7+6 pin
- Right angle mounting
- PCB thru hole type
- 1.5A rated current
- UL94v-0 flame retardant
- -55°c to 85°c operating temperature
Main Specifications:
General Information:
| Product No.: | SATA-A2-PM-VSMT-P | |
| Connector Series: | SATA Connectors | |
| Brand: | Metabee | |
| Number of Contacts: | 7+6 Pin | |
| Number of Ports: | Dual Port | |
| Connector Gender: | Female | |
| Mounting Orientation: | Vertical | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | SMT | |
| Polarization: | Middle Polarization | |
| Mating Cycles: | 500 Cycles | |
| Other Feature: | None |
Materials and Plating:
| Contact Material: | Brass | |
| Plating: | Gold flash over nickel underplate on mating area, Tin over nickel underplate on tails |
|
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Current rating: | 1.5 ampere per contact. | |
| Contact resistance: | 30 mOhms max. | |
| Insulation resistance: | 1,000 Mohms min | |
| Dielectric withstanding voltage: | 500 VAC |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -55℃ to +85℃ |
Part Number Configuration
Applications:
SATA Connector is an interface system for connecting SATA storage devices to host systems, primarily supporting data transmission and power delivery in HDDs, SSDs, servers, NAS systems, and industrial computers.
Here are some key applications:
- Computer Systems
- Storage Systems
- Servers
- Industrial Equipment
- Consumer Electronics
