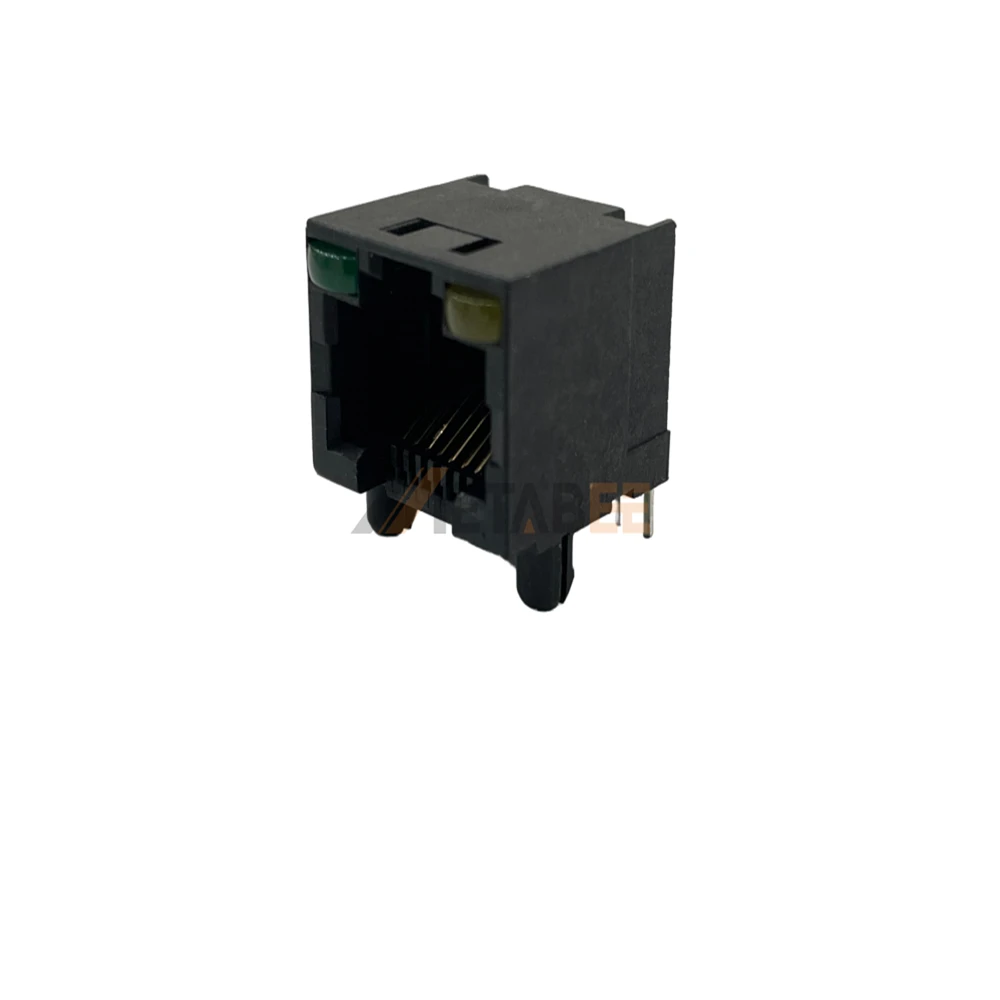

Single Port RJ45 UTP Jack Modular Socket, 8P8C, Tab-Up, Through Hole, R/A, Green/Yellow
Introduction:
This is a single port RJ45 UTP jack modular socket designed for reliable through hole mounting on networking circuit boards. It features a glass-reinforced PA46 housing that provides exceptional structural strength and maintains stability during intense soldering processes. The Phosphor Bronze contacts are finished with Gold over Nickel plating to ensure superior signal integrity for various 1.5A circuits. Utilizing a Tab-Up right angle configuration, this component optimizes board surface area while providing instant link diagnostics via integrated Green and Yellow LEDs. Technicians utilize this unshielded interface for telecommunication gear and data networking hardware requiring consistent 8P8C connectivity across a wide temperature range of -40°C to +85°C.
Key Features
- Integrated Status LEDs: Provides instant visual diagnostics for network activity.
- Glass-Reinforced PA46: High-strength housing withstands intense industrial assembly heat.
- Tab-Up Orientation: Optimizes vertical clearance for specialized PCB layouts.
- Gold Plated Contacts: Ensures high conductivity and lasting signal stability.
- 1500 Vrms Strength: Offers high dielectric withstanding voltage for safety.
Main Specifications:
General Information:
| Product No.: | MTJ-88ARX1-LH | |
| Series: | MTJ | |
| Category: | Single Port RJ45 Jack | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Latch Direction: | Tab-Up | |
| Shielding: | Unshielded | |
| LED indicator: | Left: Green, Right: Yellow |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 150V AC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min | |
| Dielectric withstanding voltage: | 1500 Vrms for 1 minute |
Materials and Plating:
| Housing Material: | PA46, Glass reinforced | |
| Housing Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Brass, Nickel plated |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |
