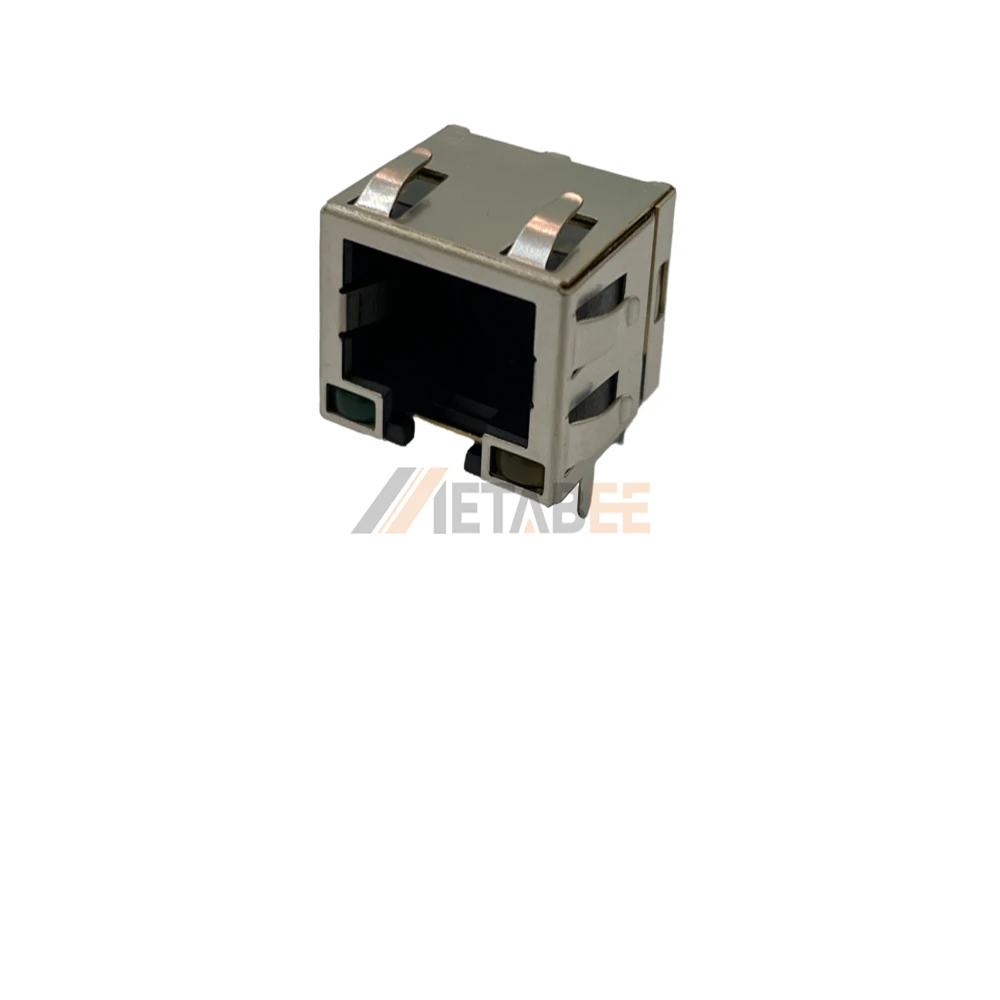

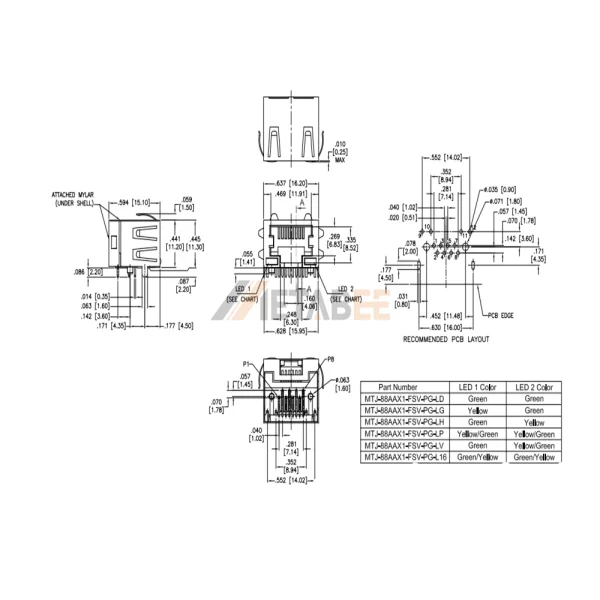

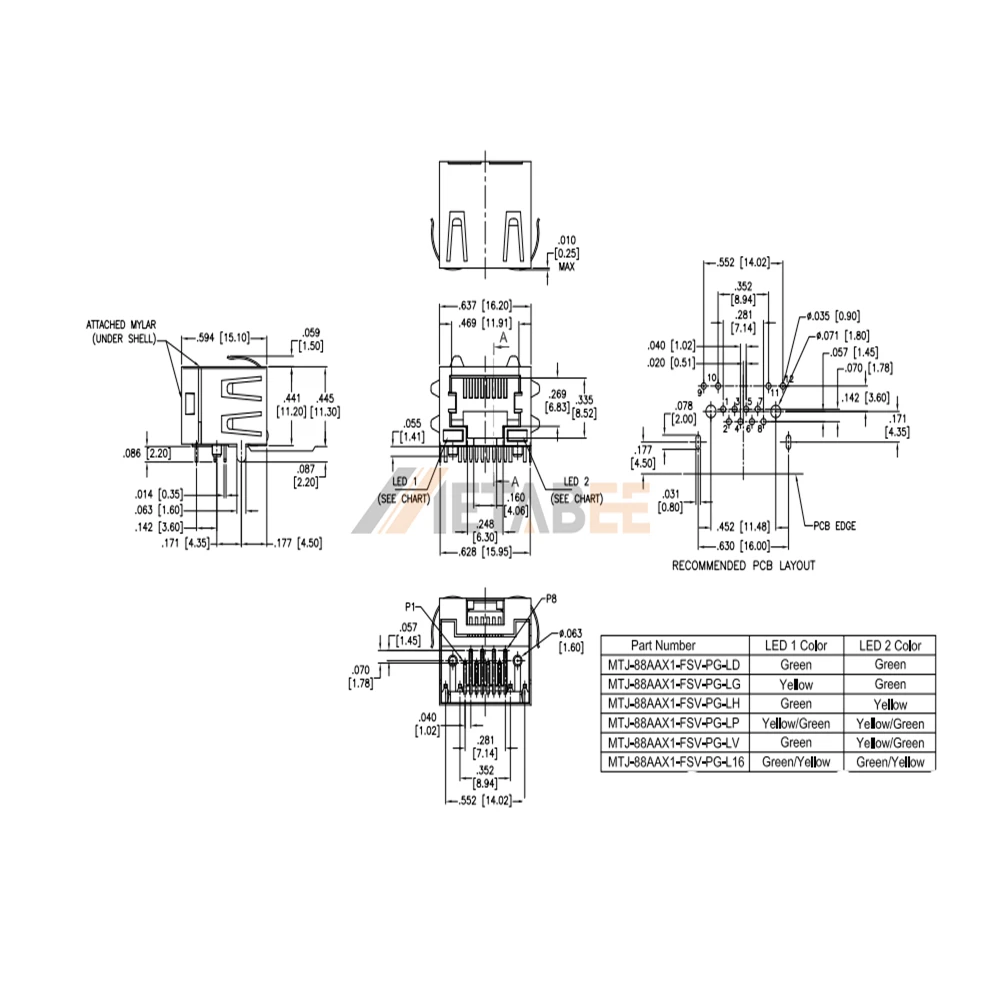

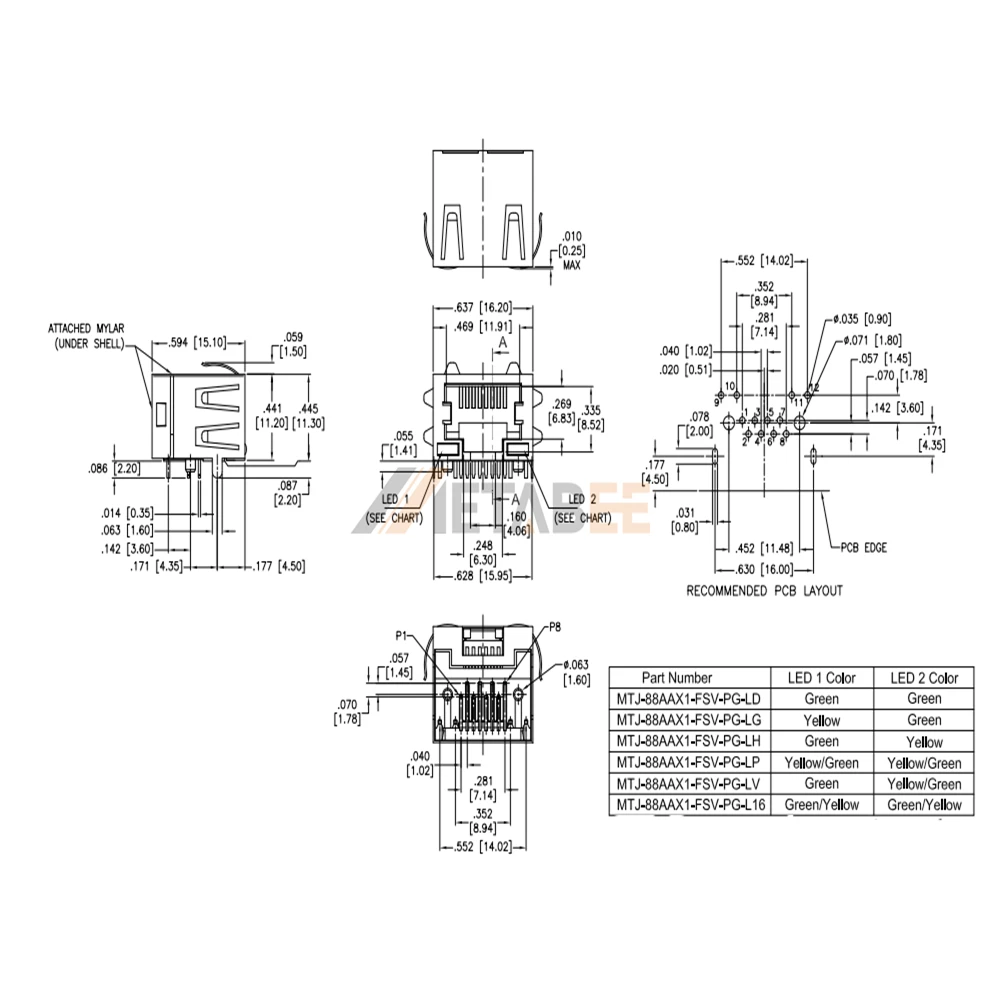

Single Port RJ45 Female Connector With LEDs, Shielded with EMI Finger, 8P8C, Tab-Down, Through Hole, R/A
Introduction:
This is a single port shielded RJ45 female connector designed for stable through hole mounting on networking circuit boards. Integrated EMI FINGERS on the metallic shell provide critical protection against electrical noise to ensure signal integrity in high-interference areas. Constructed from glass-reinforced NYLON 46, the internal housing survives intense heat during industrial wave soldering processes without any physical warping. Premium GOLD plated contacts support a standard 1.5A current rating while maintaining stable conductivity across a range of -40°C to +85°C. Designers can choose between multiple integrated LED color options for instant visual monitoring of network activity and link status. Technicians utilize this modular interface for industrial automation systems and data networking hardware requiring secure links and visual feedback.
Key Features
- EMI Finger Shielding: Metallic shell with fingers blocks interference effectively.
- Integrated LED Indicators: Offers multiple color combinations for status monitoring.
- Hi-Temp Nylon Housing: Withstands intense heat during industrial wave soldering.
- Gold Plated Contacts: Ensures high conductivity and lasting oxidation resistance.
- Tab-Down Design: Fits standard right angle PCB layouts for networks.
Main Specifications:
General Information:
| Product No.: | MTJ-88AAX1-FSV-PG | |
| Series: | MTJ | |
| Category: | Single Port RJ45 Jack | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Latch Direction: | Tab-Down | |
| Shielding: | Full Shield | |
| LED indicator: | Multiple combinations |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 150V AC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min | |
| Dielectric withstanding voltage: | 1500 VAC for 1 minute |
Materials and Plating:
| Insulator Material: | Nylon46, Glass reinforced | |
| Insulator Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Brass, Nickel plated |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |
