Single Port 8 Pin Vertical RJ45 SMT Female Connector, 8P8C, 1 Port, Shielded, Tab-Down, No LED
Introduction:
This is a single port vertical RJ45 SMT female connector designed for stable top-entry surface mount attachment to printed circuit boards. It features a rugged nickel-plated brass shell that provides a full shield against electromagnetic interference to safeguard signal integrity in busy networking environments. The hi-temp thermoplastic housing is specifically engineered to survive intense industrial reflow soldering processes without warping. Phosphor Bronze contacts with Gold over Nickel plating ensure high conductivity for 1.5A circuits across a wide temperature range of -40°C to +85°C. Utilizing a Tab-Down vertical orientation, the component provides a high dielectric withstanding voltage of 1500 VAC while effectively minimizing board surface area. Technicians utilize this reliable modular interface for compact telecommunication devices and industrial networking hardware.
Key Features
- Vertical SMT Design: Optimizes top-entry connectivity for compact PCB layouts.
- Full EMI Shielding: Metallic brass shell blocks external signal interference.
- Hi-Temp Material: Survives intense heat during industrial reflow soldering.
- Gold Plated Contacts: Ensures superior conductivity and lasting signal stability.
- Industrial Temperature Range: Performs reliably between -40°C and +85°C.
Main Specifications:
General Information:
| Product No.: | MTJ-88HX1-FS-KT-TR | |
| Series: | MTJ | |
| Category: | Single Port RJ45 Jack | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Vertical | |
| Mounting Type: | Surface Mount | |
| Termination Method: | Solder | |
| Latch Direction: | Tab-Down | |
| Shielding: | Full Shield | |
| LED indicator: | No LED |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 150V AC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min | |
| Dielectric withstanding voltage: | 1500 VAC for 1 minute |
Materials and Plating:
| Insulator Material: | Hi-temp thermoplastic | |
| Insulator Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Brass, Nickel plated |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |

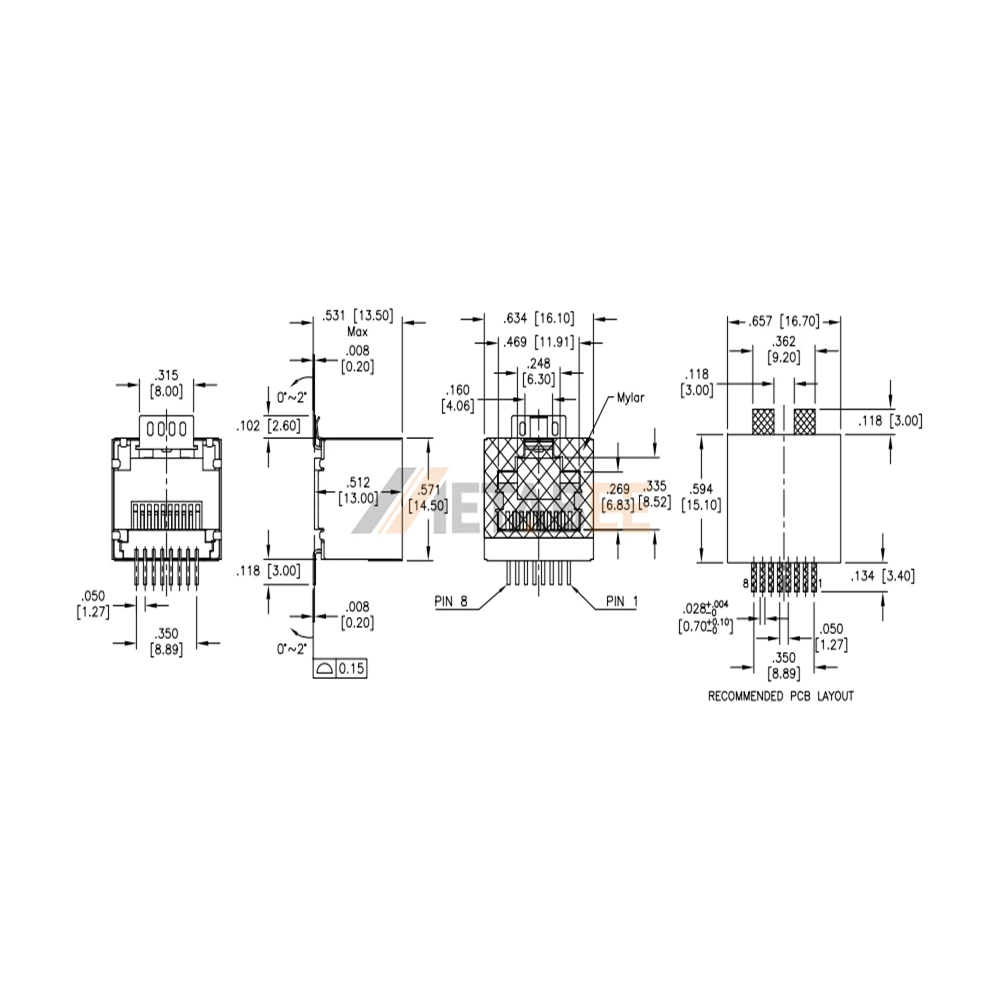

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
