Single Port 8 Pin RJ45 Jack Female Connector, 8P8C, Unshielded, Tab-Up, Through Hole, R/A, No LED
Introduction:
This is a single port 8 pin RJ45 female connector designed for durable Through Hole mounting on printed circuit boards. It is manufactured from Hi-temp thermoplastic to survive intensive soldering processes while providing a high insulation resistance of 1000MΩ Min. The Phosphor Bronze contacts are plated with Gold over Nickel to ensure consistent conductivity and 1.5A current support. Utilizing a Tab-Up right angle configuration, this component optimizes vertical clearance for specific layout requirements. It maintains electrical integrity within a temperature range of -40°C to +85°C and can withstand dielectric voltages up to 1000 VDC. Technicians utilize this unshielded interface for standard networking hardware and telecommunication systems where reliable board-level connectivity is required.
Key Features
- 8P8C Interface: Provides standard modular connectivity for networking systems.
- Tab-Up Design: Optimizes vertical space for specialized board layouts.
- Gold Plated Contacts: Ensures superior conductivity and lasting oxidation resistance.
- Hi-Temp Material: Withstands intense heat during industrial soldering processes.
- Wide Temperature Range: Performs reliably from -40°C to +85°C.
Main Specifications:
General Information:
| Product No.: | MTJ-882BX1-HT | |
| Series: | MTJ | |
| Category: | Single Port RJ45 Jack | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Latch Direction: | Tab-Up | |
| Shielding: | Unshielded | |
| LED indicator: | No LED |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 125V AC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min | |
| Dielectric withstanding voltage: | 1000 VDC or AC Peak for 1 minute |
Materials and Plating:
| Housing Material: | Hi-temp thermoplastic | |
| Housing Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Brass, Nickel plated |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |

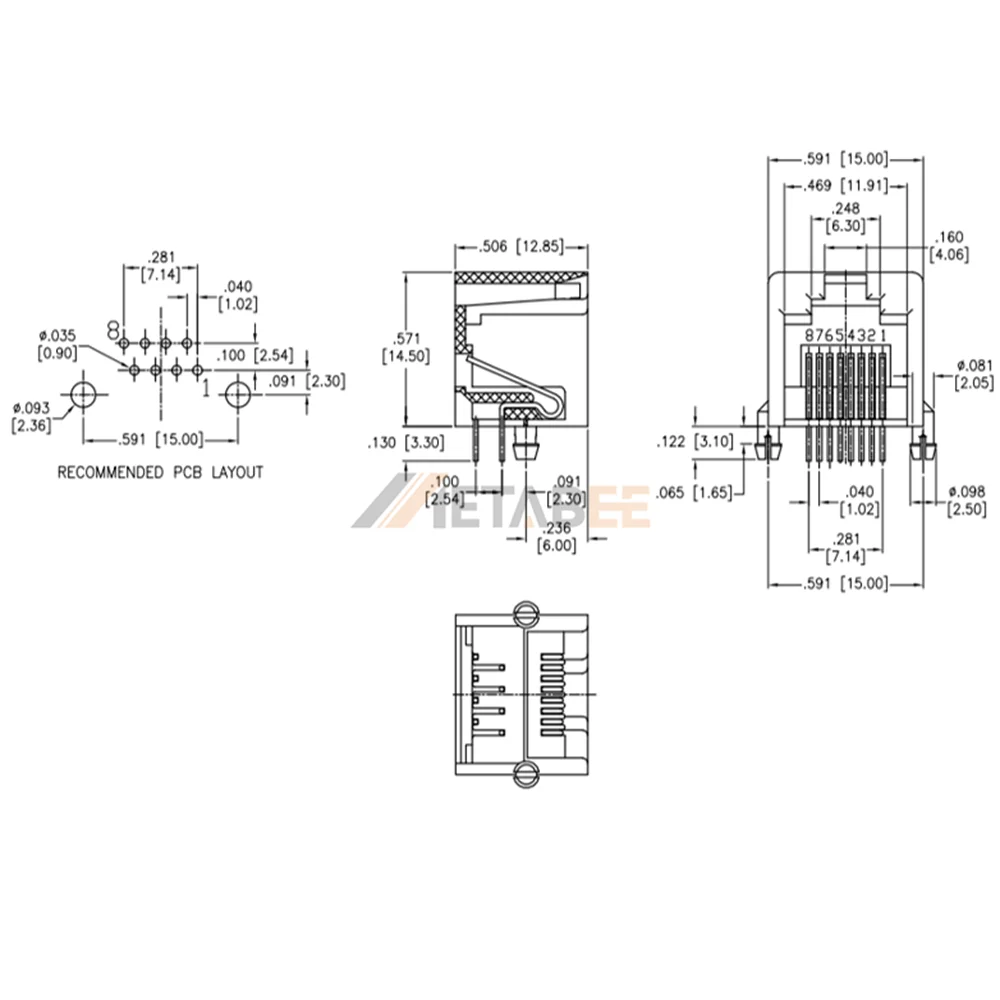

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
