Shielded RJ45 Socket Female Connector with LEDs, 8P8C, 1 Port, Tab-Down, Through Hole, R/A
Introduction:
This is a single port shielded RJ45 socket female connector designed for stable through hole mounting on networking circuit boards. It features a nickel-plated brass shell that provides full EMI shielding to ensure high signal integrity in busy electronic environments. The internal housing is constructed from glass-reinforced Nylon46 to withstand intense industrial wave soldering heat without warping. To meet different diagnostic needs, this series offers various integrated LED color combinations such as green and yellow for instant link status monitoring. Gold over Nickel plated contacts provide superior conductivity and a 1.5A current rating within a wide temperature range of -40°C to +85°C. Technicians utilize this reliable socket for telecommunication hardware and industrial gear requiring secure, unshielded 8P8C connectivity and visual feedback.
Key Features
- Full EMI Shielding: Metallic brass shell blocks external signal interference.
- Integrated Status LEDs: Multiple color options enable immediate link diagnostics.
- Hi-Temp Nylon Housing: Survives intense heat during industrial wave soldering.
- Gold Plated Contacts: Ensures high conductivity and lasting signal stability.
- Wide Temperature Range: Performs reliably between -40°C and +85°C.
Main Specifications:
General Information:
| Product No.: | MTJ-88AAX1-FSV | |
| Series: | MTJ | |
| Category: | Single Port RJ45 Jack | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Latch Direction: | Tab-Down | |
| Shielding: | Full Shield | |
| LED indicator: | Multiple combinations |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 150V AC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min | |
| Dielectric withstanding voltage: | 1500 VAC for 1 minute |
Materials and Plating:
| Insulator Material: | Nylon46, Glass reinforced | |
| Insulator Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Brass, Nickel plated |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |

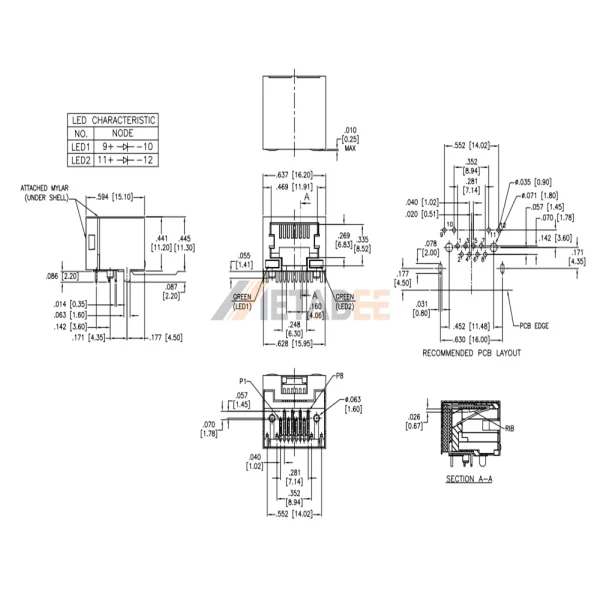

Structure of Modular Jack

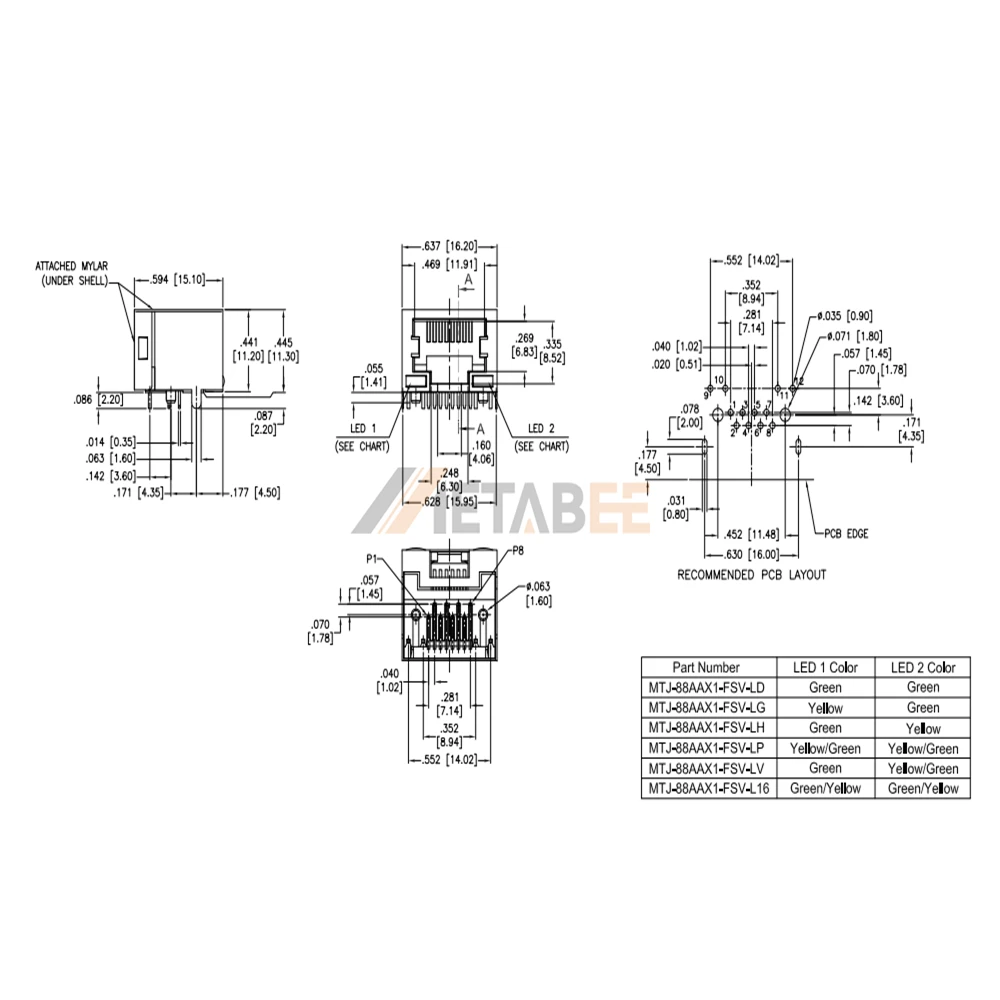

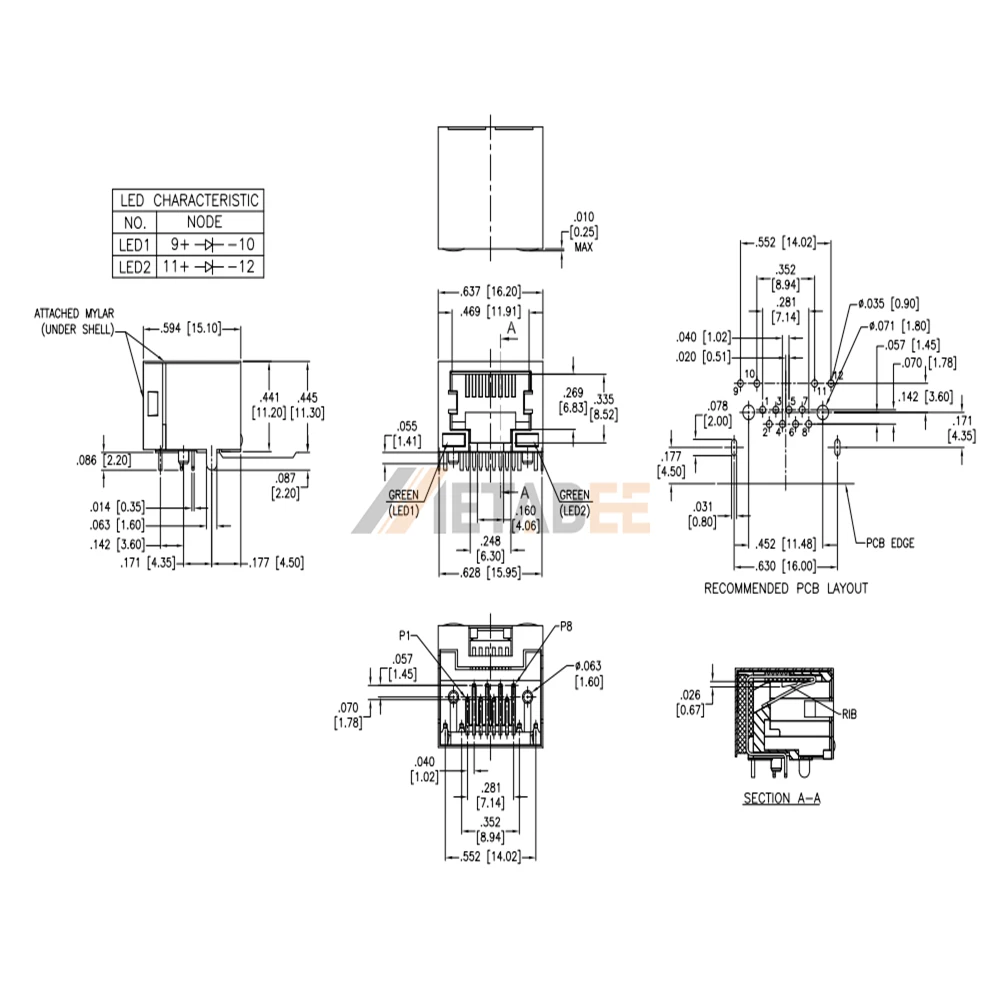

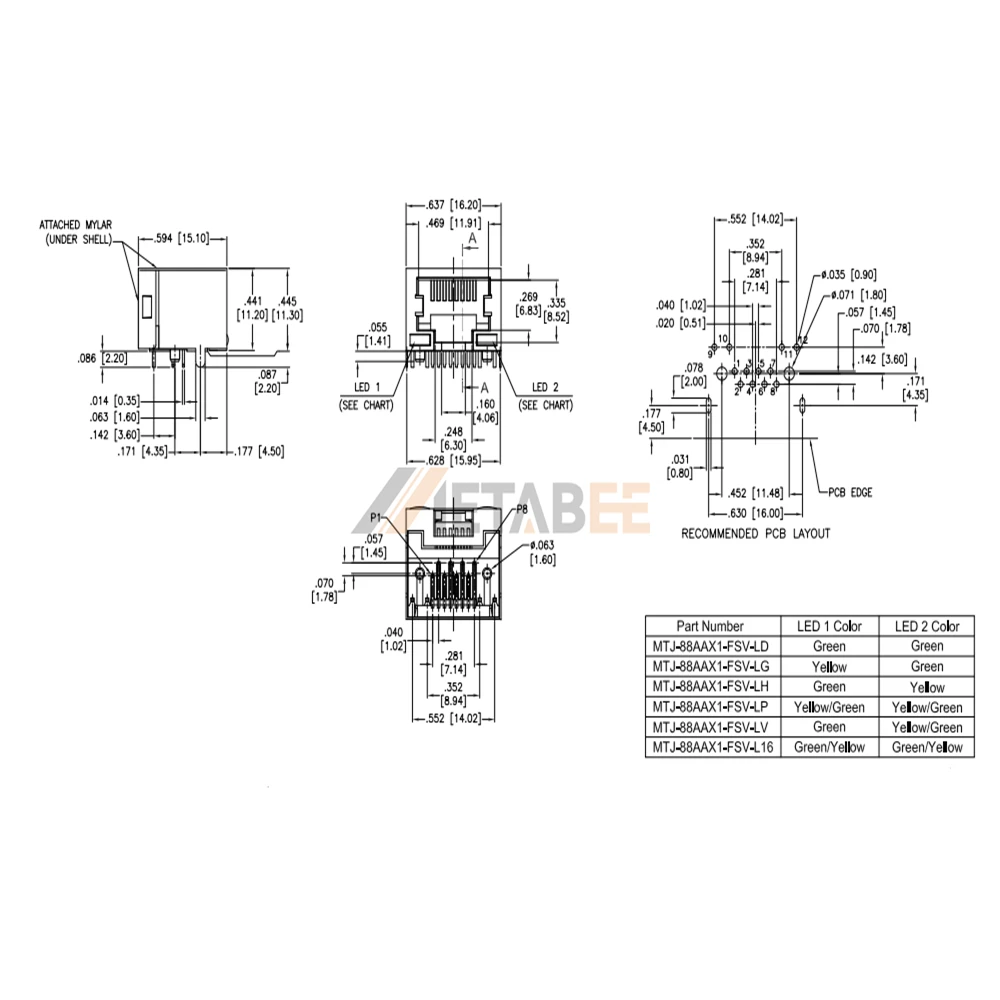

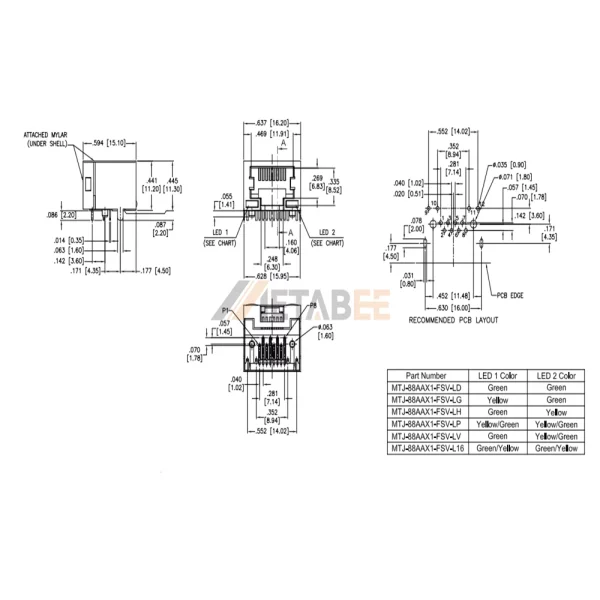

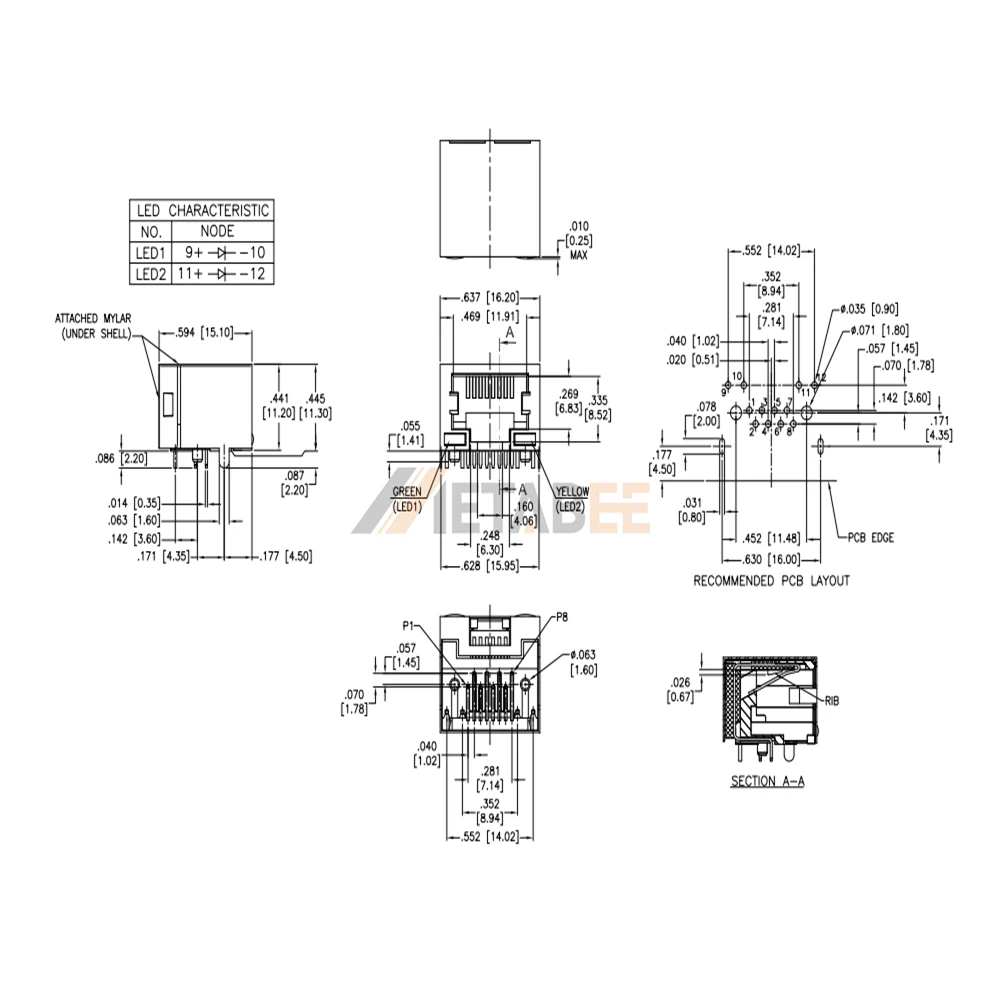

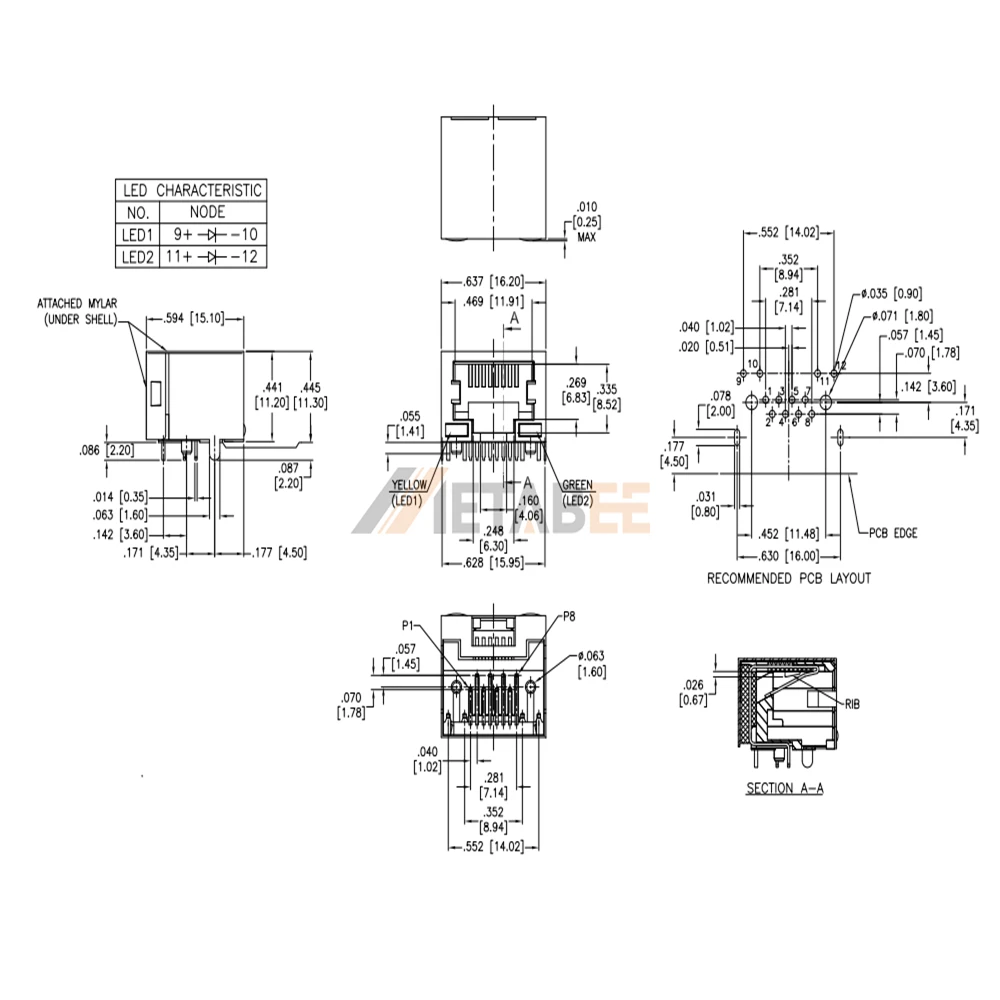

Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
