Introduction:
The RJ45 socket with transformer is a shielded 1×4 multi-port connector used for Ethernet communication equipment. Reliable 10/100 Base-T networking speeds remain stable between 0 and 70 degrees Celsius for all connected devices. A robust nickel-plated brass shield wraps the module to reject electromagnetic interference effectively during high-speed traffic. Mechanical stability on the PCB depends on through hole mounting and integrated board guide features. Visual network feedback relies on built-in green and yellow LEDs positioned in the tab-down profile. Furthermore, gold-plated copper alloy contacts strictly maintain electrical resistance below 20 milliohms in this RJ45 socket with a transformer.
Key Features
- 1×4 Multi-Port Design: Connects four Ethernet devices using a single module.
- 10/100 Base-T Speed: Supports reliable Fast Ethernet data transmission rates.
- Full Brass Shielding: Blocks electromagnetic interference for clear signal transmission.
- Stable THT Mounting: Board guide and solder retention ensure PCB stability.
- Integrated Status LEDs: Green and yellow lights display network activity status.
Main Specifications:
General Information:
| Product No.: | MTJG-4-88TX1-FS-PG-LH-M5C | |
| Series: | MTJ | |
| Category: | RJ45 Magnetic Jacks | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×4 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Speed: | 10/100 Base-T | |
| Integral Magnetics: | Yes | |
| PoE Rating: | Non-PoE | |
| Latch Direction: | Tab-Down | |
| Shielding: | Full Shielded | |
| LED indicator: | Left: Green, Right: Yellow |
Electrical:
| Rated Voltage: | 150VAC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min |
Materials and Plating:
| Insulator Material: | Thermoplastic | |
| Insulator Color: | Black | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Brass, Nickel plated |
Environmental:
| Operating Temperature: | 0°C ~ +70°C | |
| Flammability Rating: | UL 94 V-0 |

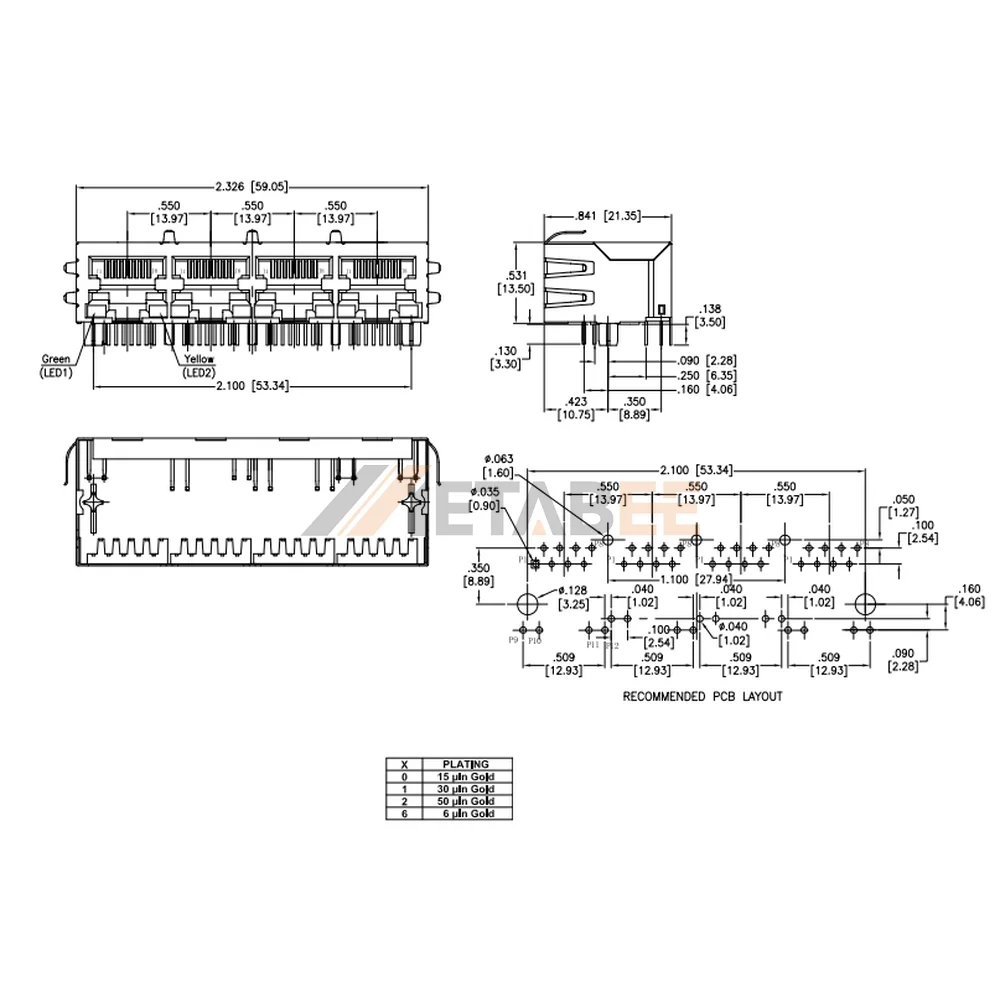

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
