Introduction:
This product is a ganged 1×2 modular interface featuring two side-by-side ports for high-density networking. Operating stability is maintained throughout a wide -40C to +70C temperature range for consistent connectivity. A robust nickel-plated brass shield encloses the yellow hi-temp thermoplastic housing to reject electromagnetic interference effectively. Visual link status relies on integrated green and yellow LED indicators positioned within the tab-up profile. Furthermore, gold-plated phosphor bronze contacts strictly maintain electrical resistance below 30 miliohms in this ganged RJ45 jack. Secure mechanical termination relies on the right-angle through hole configuration for stable board integration. Networking hubs, industrial routers, and server peripherals frequently incorporate this specialized component.
Key Features
- Ganged 1×2 configuration: Connects two network links side-by-side efficiently.
- Industrial temperature range: Operates reliably from -40C up to +70C.
- Full brass shielding: Blocks severe electromagnetic interference for clear signals.
- Hi-temp thermoplastic housing: Withstands demanding assembly and thermal stress.
- Low contact resistance: Gold plating ensures strictly under 30 miliohms.
Main Specifications:
General Information:
| Product No.: | MTJG-2-88ARX1-FSW-PG-LH-P114C-HT-A | |
| Series: | MTJG | |
| Category: | Multi Port RJ45 Jack | |
| Product Type: | Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×2 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Interface Type: | Ganged | |
| Latch Direction: | Tab-Up | |
| Shielding: | Full Shield | |
| LED indicator: | Left: Green, Right: Yellow |
Electrical:
| Rated Voltage: | 150VAC | |
| Rated Current: | 1.5 Amp | |
| Contact Resistance: | 30mΩ Max | |
| Insulation Resistance: | 500mΩ Min | |
| Dielectric withstanding voltage: | 1000 VDC or AC Peak for 1 minute |
Materials and Plating:
| Insulator Material: | Hi-temp thermoplastic | |
| Insulator Color: | Yellow | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Brass, Nickel plated |
Environmental:
| Operating Temperature: | -40°C to +70°C | |
| Flammability Rating: | UL 94 V-0 |

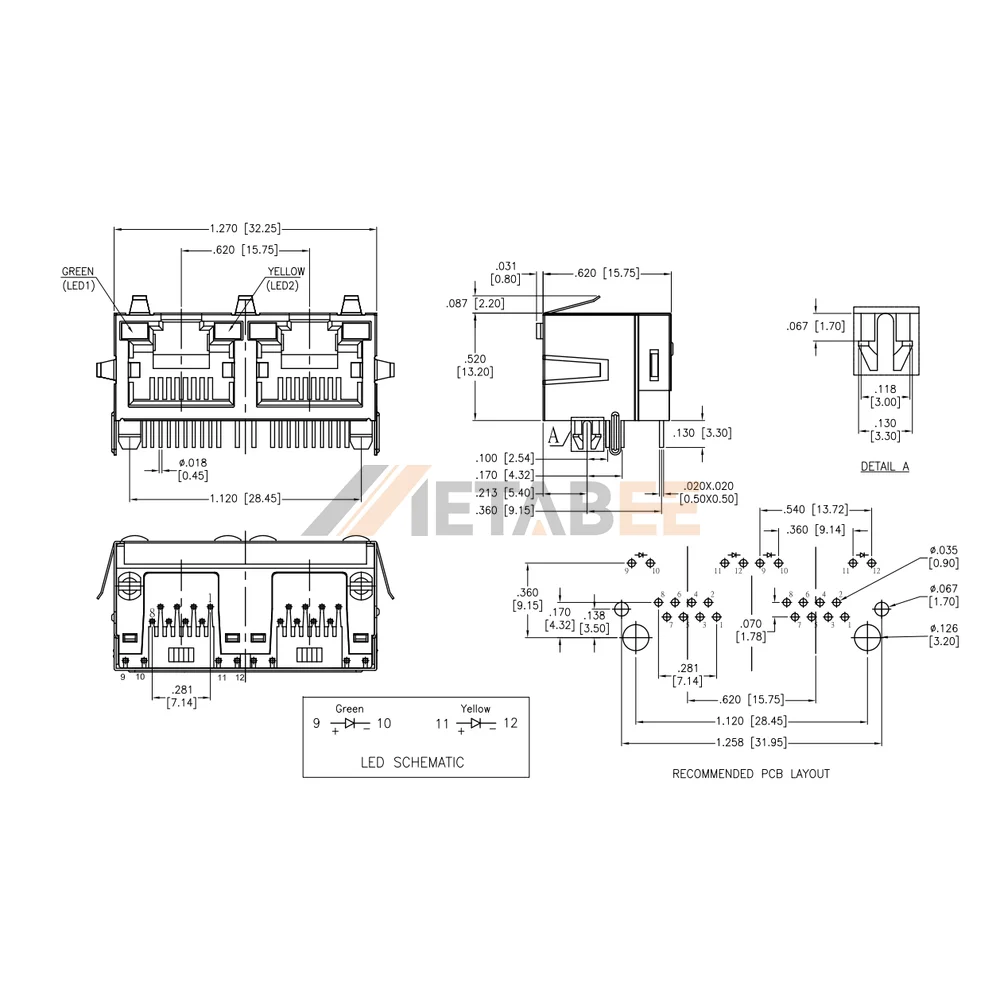

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
