Shielded Ethernet RJ45 Vertical PCB Jack, 8P8C, 1 Port, Tab-Down, Through Hole, No LED
Introduction:
This is a single port shielded Ethernet RJ45 jack designed for stable vertical through hole mounting on networking circuit boards. It features a full metallic shell that provides a robust barrier against electromagnetic interference to safeguard signal integrity across the 8P8C interface. The durable black PBT housing provides high thermal stability and supports an extreme operating temperature range from -40°C up to +125°C. With Phosphor Bronze contacts finished in Gold flash over Nickel, the unit maintains high conductivity and a consistent 1.5A current rating. Technicians utilize this reliable interface for industrial automation systems and outdoor networking hardware requiring secure vertical connectivity.
Key Features
- Vertical Mounting Design: Optimizes top-entry connectivity for compact PCB layouts.
- Full Metallic Shielding: Blocks external signal interference for high integrity.
- Industrial Temperature Range: Performs reliably between -40°C and +125°C.
- Gold Plated Contacts: Ensures superior conductivity and lasting signal stability.
- Durable PBT Material: Maintains structural integrity during industrial assembly processes.
Main Specifications:
General Information:
| Product No.: | MTJ-88FX1-FS | |
| Series: | MTJ | |
| Category: | Single Port RJ45 Jack | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Vertical | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Latch Direction: | Tab-Down | |
| Shielding: | Full Shield | |
| LED indicator: | No LED |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 150V AC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min | |
| Dielectric withstanding voltage: | 1000 VAC for 1 minute |
Materials and Plating:
| Insulator Material: | PBT | |
| Insulator Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | N/A |
Environmental:
| Operating Temperature: | -40℃ to +125℃ | |
| Flammability Rating: | UL 94 V-0 |

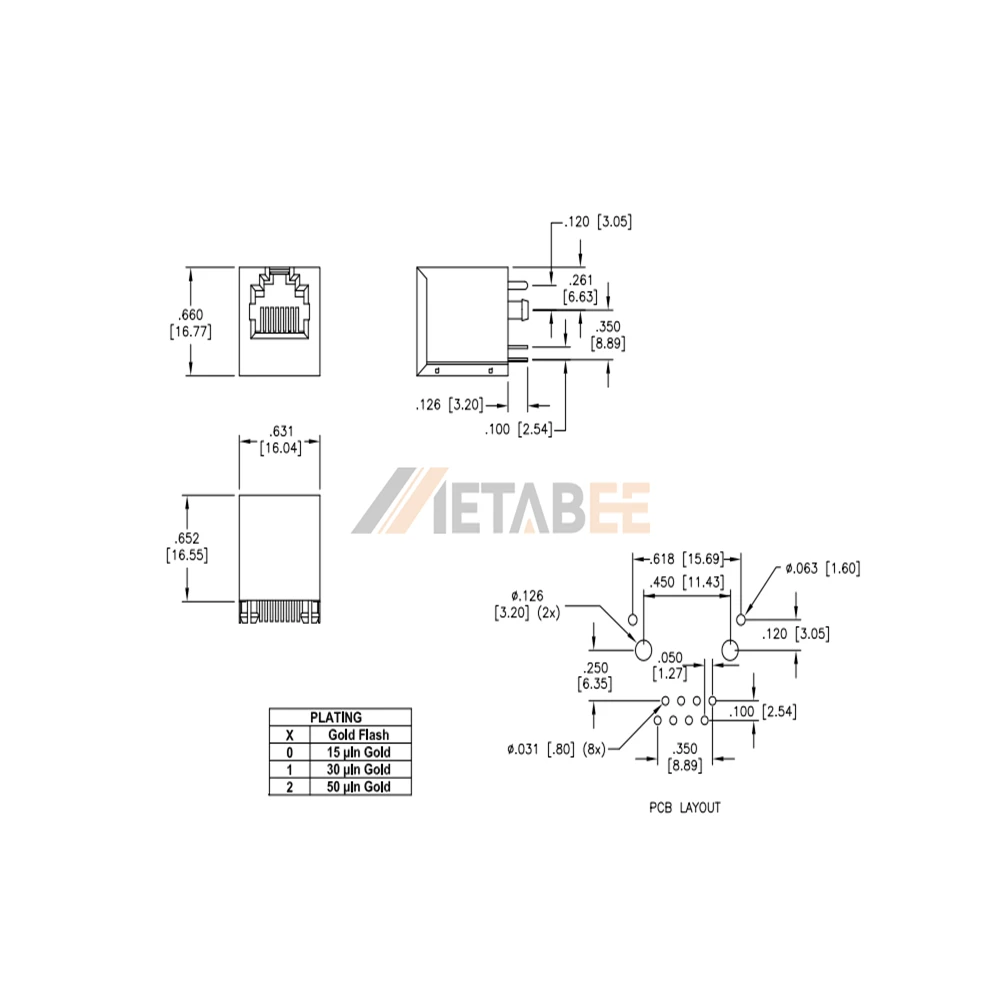

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
