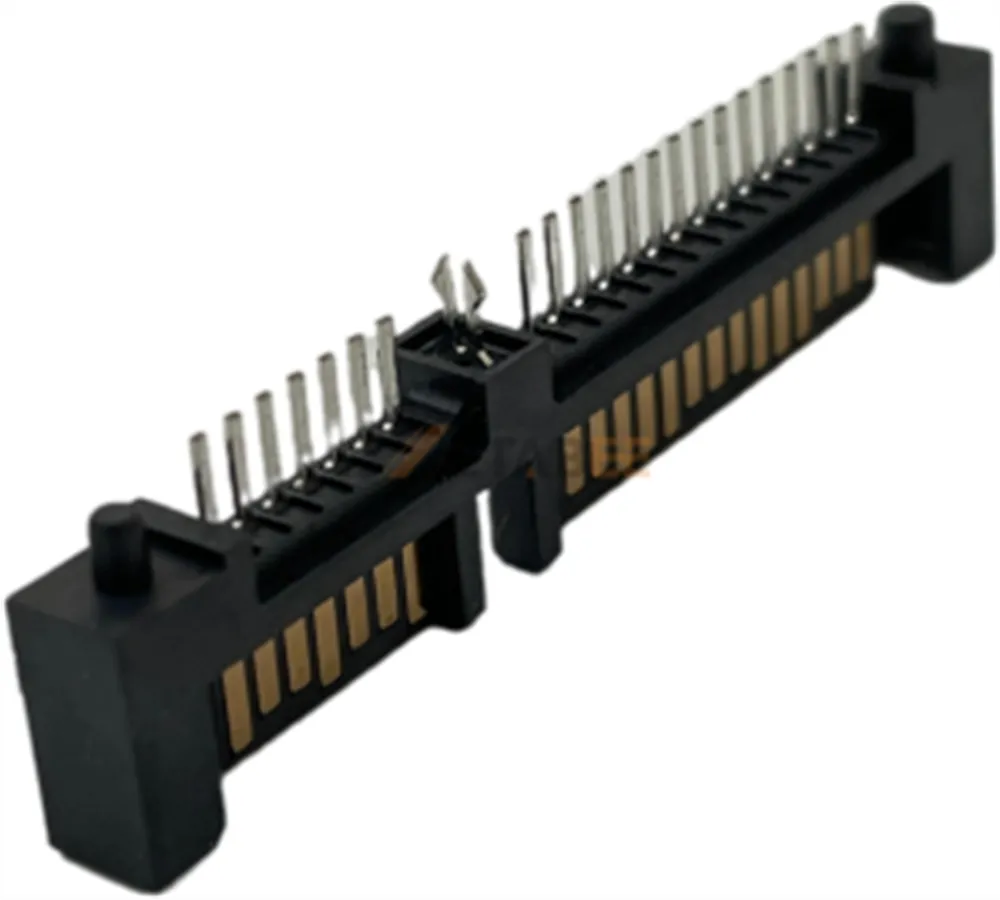

Serial ATA Combo Plug, 7+15 Pin, SMT, Vertical
Introduction:
The sata 7+15 pin combo data power receptacle is designed for reliable data and power connectivity in storage devices, servers, computers, and other sata applications. Its vertical orientation and straddle mount configuration provide efficient pcb integration and stable mechanical support.
With a rated current of 1.5a, this female receptacle delivers reliable electrical performance with 30 mOhms max contact resistance and 1,000 mOhms min insulation resistance. It supports 500 vac dielectric withstanding voltage and reliable operation from -55°c to +85°c, with a ul94v-0 flame-retardant housing.
Key Features
- Male dual port 7+15 pin combo
- Straddle mount, vertical, smt
- 1.5a current rating
- 30 mohms max contact resistance
- 500 vac dielectric withstanding
- Ul94v-0, -55°c to 85°c
Main Specifications:
General Information:
| Product No.: | SATA-G-PM-SMT | |
| Connector Series: | SATA Connectors | |
| Brand: | Metabee | |
| Number of Contacts: | 7+15 Pin | |
| Number of Ports: | Dual Port | |
| Connector Gender: | Male | |
| Mounting Orientation: | Vertical | |
| Mounting Method: | Surface Mount | |
| Mounting Feature: | N/A | |
| Polarization: | Middle Polarization | |
| Mating Cycles: | 500 Cycles | |
| Other Feature: | None |
Materials and Plating:
| Contact Material: | Phosphor Bronze | |
| Plating: | Gold flash over nickel underplate on mating area, Tin over nickel underplate on tails |
|
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Current rating: | 1.5 ampere per contact. | |
| Contact resistance: | 30 mOhms max. | |
| Insulation resistance: | 1,000 Mohms min | |
| Dielectric withstanding voltage: | 500 VAC |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -55℃ to +85℃ |
Part Number Configuration
Applications:
SATA Connector is an interface system for connecting SATA storage devices to host systems, primarily supporting data transmission and power delivery in HDDs, SSDs, servers, NAS systems, and industrial computers.
Here are some key applications:
- Computer Systems
- Storage Systems
- Servers
- Industrial Equipment
- Consumer Electronics
