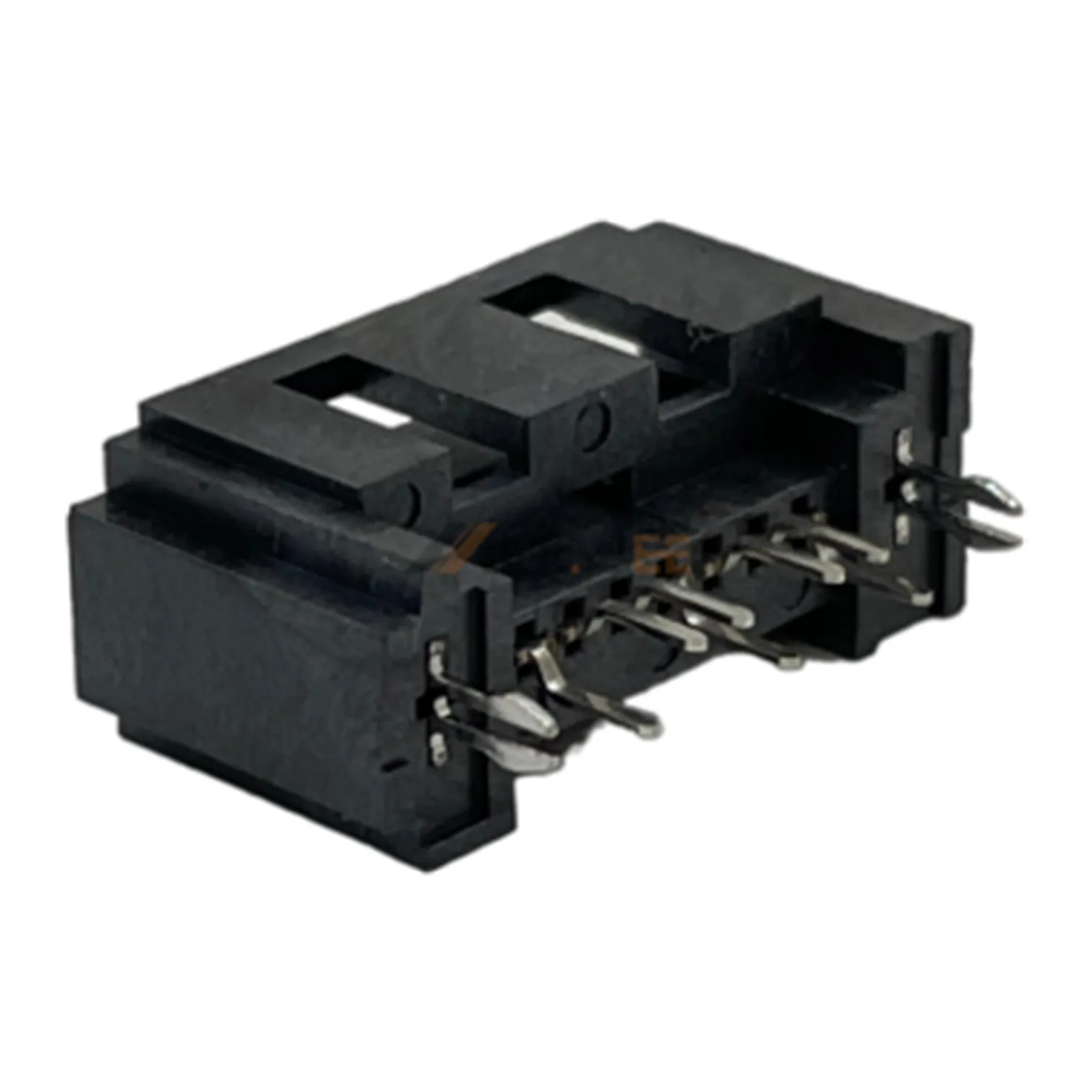

SATA 7 Pin Male Data Connector for PCB, Thru Hole, Vertical
Introduction:
Sata 7 pin male data connector for pcb is designed for reliable high-speed data connection in storage devices, embedded systems, industrial equipment, and other electronic applications. the single-port, 7-pin configuration features vertical mounting and thru hole termination, providing secure mechanical attachment and stable pcb integration.
With a rated current of 1.5a and contact resistance of 30 milliohms max, this connector supports consistent electrical performance. it offers a minimum insulation resistance of 1,000 megohms and a dielectric withstanding voltage of 500 vac. the ul94v-0 flame-retardant housing and -55°c to 85°c operating temperature range make it suitable for demanding environments.
Key Features
- 7 pin male sata connector
- single-port configuration
- vertical pcb mounting
- thru hole termination
- 1.5a rated current
- -55°c to 85°c operating temperature
Main Specifications:
General Information:
| Product No.: | SATA-A16-PL-VT-K | |
| Connector Series: | SATA Connectors | |
| Brand: | Metabee | |
| Number of Contacts: | 7 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Male | |
| Mounting Orientation: | Vertical | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Thru Hole | |
| Polarization: | Left Polarization | |
| Mating Cycles: | 500 Cycles | |
| Other Feature: | None |
Materials and Plating:
| Contact Material: | Brass | |
| Plating: | Gold flash over nickel underplate on mating area, Tin over nickel underplate on tails |
|
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Current rating: | 1.5 ampere per contact. | |
| Contact resistance: | 30 mOhms max. | |
| Insulation resistance: | 1,000 Mohms min | |
| Dielectric withstanding voltage: | 500 VAC |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -55℃ to +85℃ |
Part Number Configuration
Applications:
SATA Connector is an interface system for connecting SATA storage devices to host systems, primarily supporting data transmission and power delivery in HDDs, SSDs, servers, NAS systems, and industrial computers.
Here are some key applications:
- Computer Systems
- Storage Systems
- Servers
- Industrial Equipment
- Consumer Electronics
