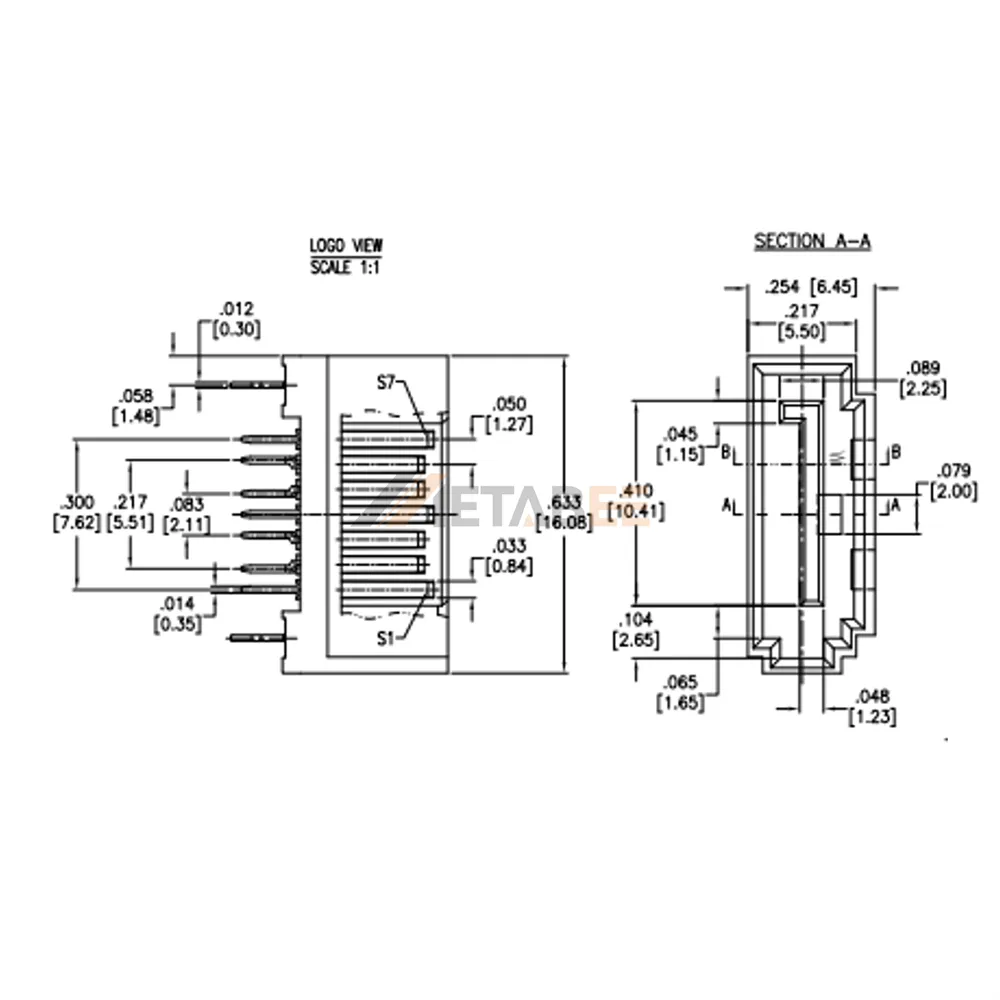

SATA 3.0 7 Pin Male Connector for PCB, Thru Hole, Vertical
Introduction:
This vertical SATA 3.0 7 pin male connector is engineered for high-speed, reliable data transmission directly onto printed circuit boards. Featuring a single-port, through-hole design, this connector provides robust mechanical anchoring and dependable signal integrity for internal storage interfaces, industrial computing systems, and server backplanes. Fully aligned with Serial ATA 3.0 specifications, it ensures seamless integration and durable performance in space-constrained PCB layouts.
Built to withstand demanding electronic environments, the housing features a high-grade UL94V-0 flame-retardant thermoplastic construction with an operating temperature range from -55°C to 85°C. With an electrical rating of 1.5A, low contact resistance, and a 500 VAC dielectric withstanding voltage, this connector delivers exceptional electrical stability and long-term connection security for critical data hardware.
Key Features
- Standard configuration: Single-port 7 pin male interface designed for standard SATA 3.0 data connections.
- Vertical PCB mount: Straight, vertical orientation optimizes board real estate and simplifies cable routing.
- Secure thru-hole design: Through-hole pins provide superior mechanical strength and vibration resistance.
- Stable electrical ratings: Supports 1.5A current with a maximum contact resistance of 30 mOhms.
- High dielectric safety: Delivers minimum 1,000 MOhms insulation resistance and 500 VAC dielectric withstanding voltage.
- Rugged durability: UL94V-0 flammability rating with a wide operating temperature span from -55°C to 85°C.
Main Specifications:
General Information:
| Product No.: | SATA-3A-PL-VT-K | |
| Connector Series: | SATA Connectors | |
| Brand: | Metabee | |
| Number of Contacts: | 7 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Male | |
| Mounting Orientation: | Vertical | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Thru Hole | |
| Polarization: | Left Polarization | |
| Mating Cycles: | 500 Cycles | |
| Other Feature: | None |
Materials and Plating:
| Contact Material: | Brass | |
| Plating: | Gold flash over nickel underplate on mating area, Tin over nickel underplate on tails |
|
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Current rating: | 1.5 ampere per contact. | |
| Contact resistance: | 30 mOhms max. | |
| Insulation resistance: | 1,000 Mohms min | |
| Dielectric withstanding voltage: | 500 VAC |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -55℃ to +85℃ |
Part Number Configuration
Applications:
SATA Connector is an interface system for connecting SATA storage devices to host systems, primarily supporting data transmission and power delivery in HDDs, SSDs, servers, NAS systems, and industrial computers.
Here are some key applications:
- Computer Systems
- Storage Systems
- Servers
- Industrial Equipment
- Consumer Electronics
