Introduction:
This magnetic pogo pin charging cable is a 1-meter USB Type-A assembly designed for low-profile charging interfaces. It features a circular magnetic head that enables automatic self-alignment, allowing for effortless one-handed connection and quick detachment to prevent device damage. The internal 1-pin contact is gold plated to achieve an ultra-low resistance of 2 mohms, supporting a 2A maximum current at 5V DC. Encased in a flexible TPE jacket, this cable maintains mechanical reliability over a tested 10,000-cycle lifespan. This assembly acts as a secure electrical link for smart wearables, portable consumer electronics, and medical devices requiring a waterproof and dustproof charging port.
Key Features
- Magnetic Alignment: Circular magnetic head enables automatic self-aligning connection.
- Efficient Charging: Supports 2A current for stable 5V DC power.
- Ultra-Low Resistance: Gold-plated contacts ensure maximum 2 mohms resistance.
- Flexible TPE: 1000mm TPE jacket offers superior cable durability.
- Durable Life: Reliable 10,000-cycle life ensures long-term daily use.

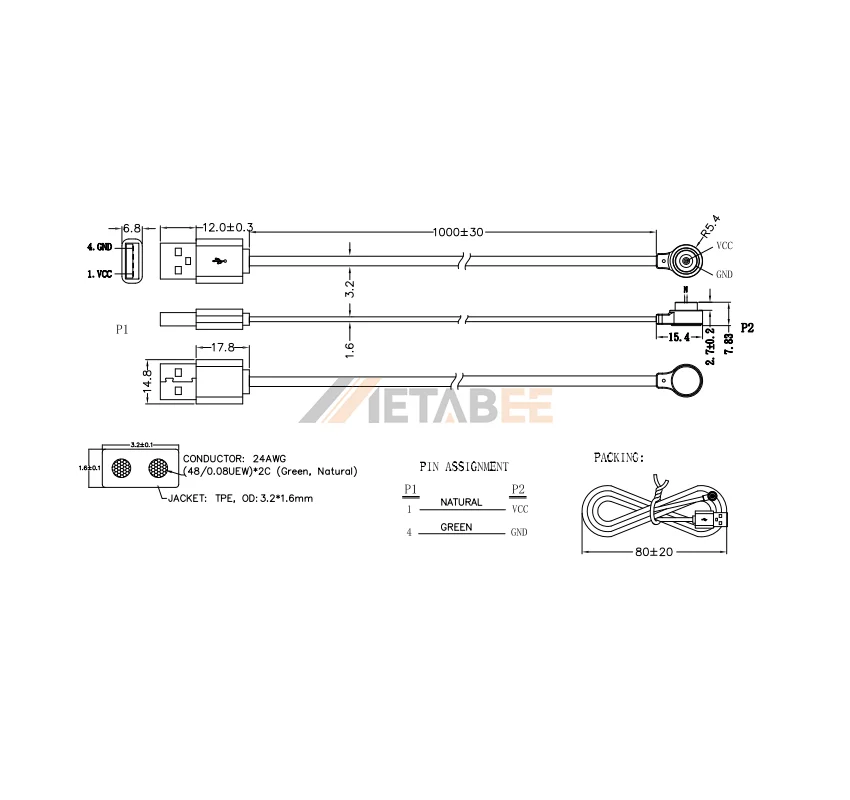

Main Specifications:
General Information:
| Product No.: | CA-RA2-PHR-265778-M | |
| Product Type: | Magnetic Cable Assemblies | |
| Connector 1: | USB Type-A Male | |
| Connector 2: | Male Pogo Pin Connector | |
| Pin Count: | 1 | |
| Connector 2-Shape: | Circular | |
| Connector 2-Orientation: | Right Angle | |
| Contact Material: | N/A | |
| Contact Plating: | Gold Flash Plated | |
| Cable Type: | Round Cable | |
| Wire Gauge: | N/A | |
| Cable Length: | 1000±30 mm | |
| Jacket Material & Color: | TPE, Black |
Electrical:
| Rated Current: | 2A Max | |
| Rated Voltage: | 5V DC | |
| Contact Resistance: | 2 mohms max | |
| Insulation Resistance: | 10 Mohms min | |
| Dielectric Withstanding Voltage: | N/A |
Mechanical:
| Contact Force: | 60gf max | |
| Working Stroke: | 0.8mm | |
| Full Stroke: | N/A | |
| Durability: | 100,000 cycles |
Environmental:
| Operating Temperature: | -30°C to +85°C | |
| Flammability Rating: | UL 94 V-0 |
Applications:
Pogo pin magnetic cable assemblies combine magnetic alignment with spring-loaded contacts to provide fast, reliable connections for power and signal transmission. Their self-aligning design supports easy mating, repeated connection cycles, and stable electrical performance in compact electronic devices.
- Consumer Electronics
- Wearable Devices
- Charging Docks & Cradles
- Smart Home & IoT Devices
- Medical Equipment
- Industrial Automation
- Automotive Electronics
- Custom OEM & ODM Solutions
