Introduction:
The RJ45 8 port modular jack is a high-density 1×8 ganged network interface used for advanced communication equipment. Reliable performance is maintained across a wide industrial temperature range from -40C to +85C for severe environments. A robust nickel plated brass shield encloses the black PBT insulator to reject electromagnetic interference effectively. Visual link activity is tracked via built-in yellow and green LED indicators positioned within the tab-up profile. Furthermore, gold flash over nickel phosphor bronze contacts strictly maintain electrical resistance below 20 miliohms while through hole termination ensures stable PCB retention. Communication switches, telecom servers, and industrial hubs frequently utilize these reliable sockets to optimize board space.
Key Features
- Ganged 1×8 Configuration: Connects eight network devices side-by-side efficiently.
- Industrial Temperature Range: Operates reliably between -40C and +85C.
- Full Brass Shielding: Blocks severe electromagnetic interference for signals.
- Integrated Status LEDs: Yellow and green indicators track link activity.
- Low Resistance Contacts: Gold flash ensures conductivity below 20 miliohms.
Main Specifications:
General Information:
| Product No.: | MTJG-8-88ARX1-FSM-PG-LG | |
| Series: | MTJG | |
| Category: | Multi Port RJ45 Jack | |
| Product Type: | Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×8 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Interface Type: | Ganged | |
| Latch Direction: | Tab-Up | |
| Shielding: | Full Shield | |
| LED indicator: | Left: Yellow, Right: Green |
Electrical:
| Rated Voltage: | 150VAC | |
| Rated Current: | 1.5 Amp | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 1000mΩ Min | |
| Dielectric withstanding voltage: | 1000 VAC for 1 minute |
Materials and Plating:
| Insulator Material: | PBT | |
| Insulator Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Brass, Nickel plated |
Environmental:
| Operating Temperature: | -40°C to +85°C | |
| Flammability Rating: | UL 94 V-0 |

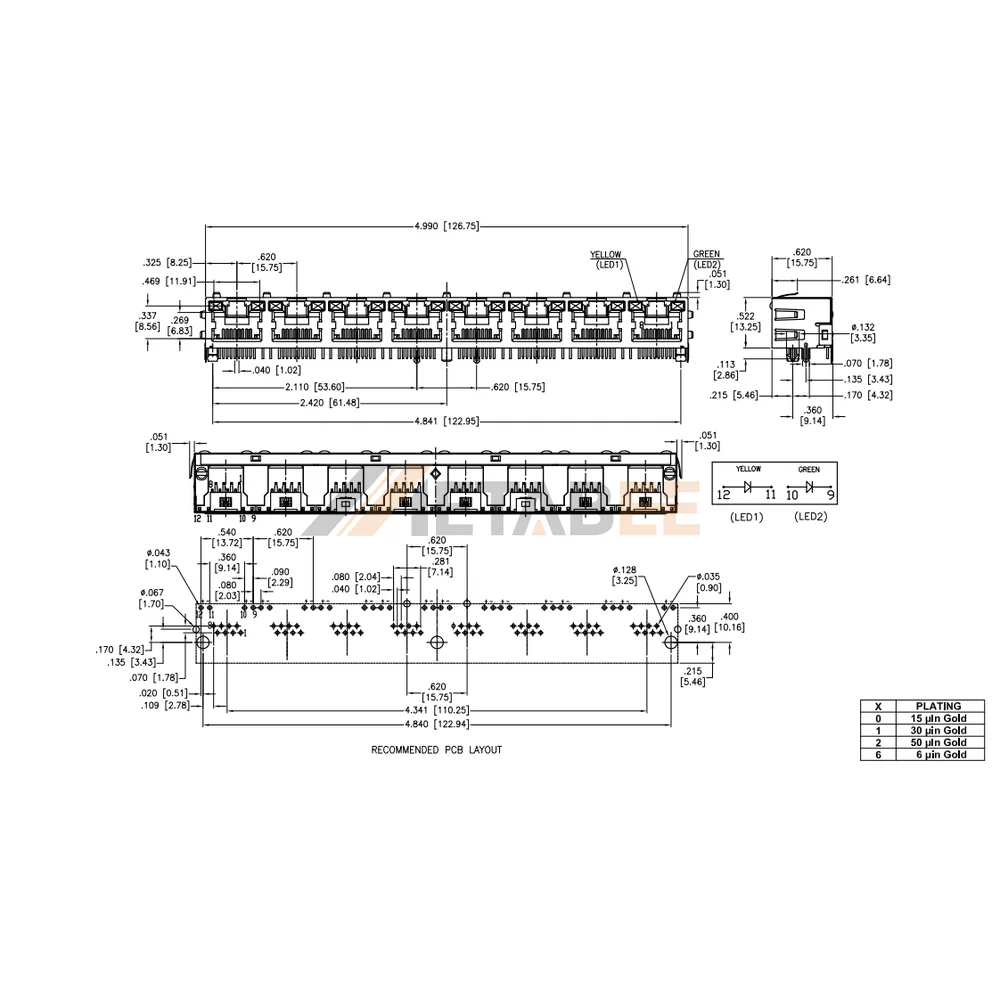

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
