Introduction:

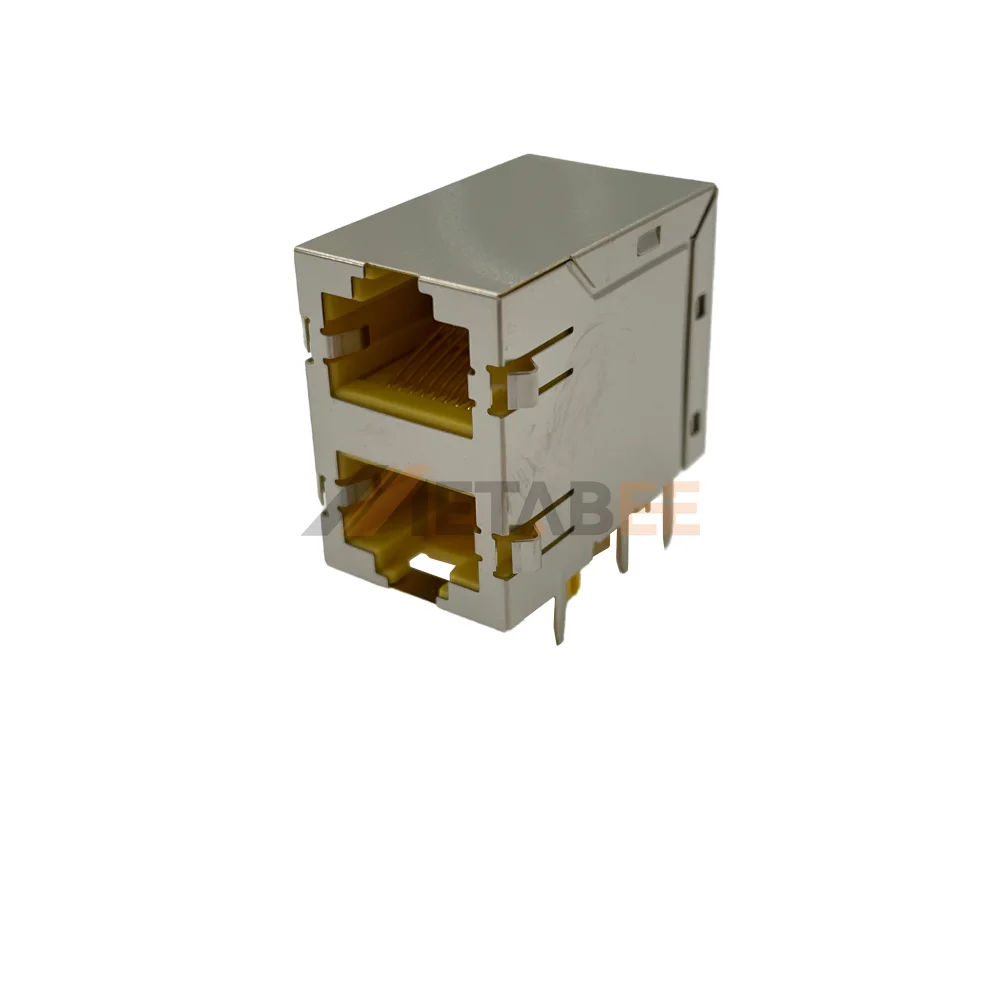

The RJ45 multi port jack is a stacked 2×1 network interface developed for high-density Ethernet applications. Standard data transmission is supported through dual 8P8C ports for reliable connectivity. Successful operation is maintained across the industrial -40C ~ +85C temperature range for severe environments. A robust nickel plated brass shield encloses the yellow PBT insulator to reject electromagnetic interference effectively. Secure mechanical termination relies on the right angle THT configuration with built-in board locks. Visual indicators are excluded for this streamlined no LED profile to suit compact PCB layouts. Gold over nickel plating on phosphor bronze contacts strictly maintains electrical resistance below 20 miliohms. Server motherboards, networking switches, and automated industrial controllers frequently utilize this rj45 multi port jack.
Key Features
- Stacked 2×1 configuration: Facilitates two side-by-side network ports efficiently.
- Industrial temperature range: Operates reliably between -40C and +85C.
- Full brass shielding: Blocks severe electromagnetic interference for signals.
- Low contact resistance: Gold plating ensures conductivity below 20 miliohms.
- Secure THT mounting: Right angle termination ensure stable PCB alignment.
Main Specifications:
General Information:
| Product No.: | MTJG-2-88JX1-FSG-PG-P114C | |
| Series: | MTJG | |
| Category: | Multi Port RJ45 Jack | |
| Product Type: | Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 2×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Interface Type: | Stacked | |
| Latch Direction: | Up & Down | |
| Shielding: | Full Shield | |
| LED indicator: | No LED |
Electrical:
| Rated Voltage: | 150VAC | |
| Rated Current: | 1.5 Amp | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 1000mΩ Min | |
| Dielectric withstanding voltage: | 1000 VDC or AC Peak for 1 minute |
Materials and Plating:
| Insulator Material: | PBT | |
| Insulator Color: | Yellow | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Brass, Nickel plated |
Environmental:
| Operating Temperature: | -40°C to +85°C | |
| Flammability Rating: | UL 94 V-0 |
Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
