Introduction:
The RJ45 multi port jack is a ganged 1×3 modular component designed for high-density industrial communication systems. Reliable data transmission is maintained across three side-by-side 8P8C ports for standard Ethernet networking. Consistent performance is achieved throughout the wide -40C ~ +85C industrial temperature range in rugged environments. The robust black PBT insulator ensures high housing integrity during the right angle through hole soldering process. Gold over nickel plating on phosphor bronze contacts strictly maintains electrical resistance below 35 miliohms. Visual indicators are omitted for this streamlined tab-down profile which functions without built-in LED lights. Network switches, automated controllers, and multi-port telecom hubs frequently utilize this resilient rj45 multi port jack.
Key Features
- Ganged 1×3 configuration: Facilitates three side-by-side network ports efficiently.
- Industrial temperature range: Operates reliably between -40C and +85C.
- Unshielded 8P8C design: Optimizes board space for cost-effective hubs.
- Durable PBT housing: Ensures mechanical stability during soldering process.
- Low contact resistance: Gold plating ensures conductivity below 35 miliohms.
Main Specifications:
General Information:
| Product No.: | MTJG-3-885X1 | |
| Series: | MTJG | |
| Category: | Multi Port RJ45 Jack | |
| Product Type: | Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×3 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Interface Type: | Ganged | |
| Latch Direction: | Tab-Down | |
| Shielding: | Unshielded | |
| LED indicator: | No LED |
Electrical:
| Rated Voltage: | 125VAC | |
| Rated Current: | 1.5 Amp | |
| Contact Resistance: | 35mΩ Max | |
| Insulation Resistance: | 1000mΩ Min | |
| Dielectric withstanding voltage: | 1000 VAC for 1 minute |
Materials and Plating:
| Insulator Material: | PBT | |
| Insulator Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | N/A |
Environmental:
| Operating Temperature: | -40°C to +85°C | |
| Flammability Rating: | UL 94 V-0 |

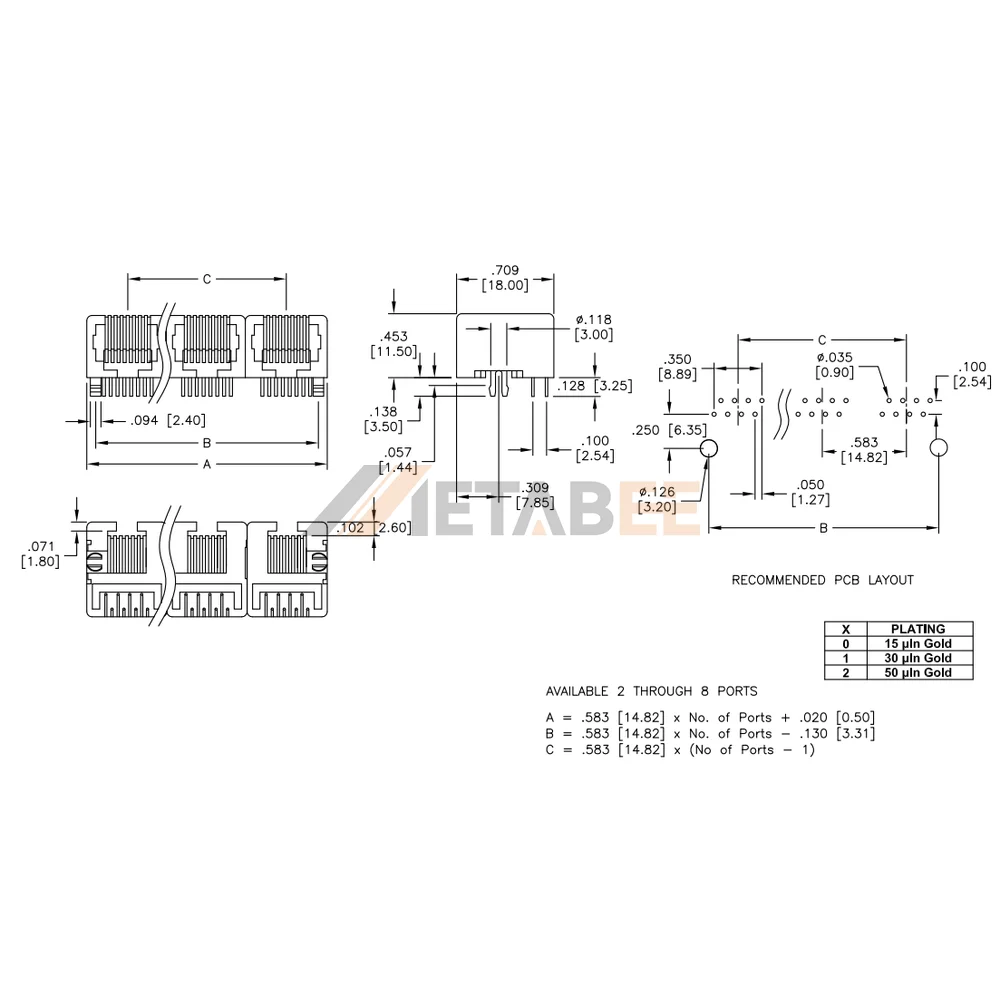

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
