RJ45 Modular Jack Connector without LEDs, 8P8C, 1 Port, Shielded, Tab-Up, Through Hole, R/A
Introduction:
This is a single port RJ45 modular jack connector designed for stable through hole mounting on networking circuit boards. It features a Hi-temp Nylon 46 housing specifically engineered to withstand the intense thermal stress of industrial wave soldering without any deformation. The full brass shield with nickel plating provides a robust barrier against electromagnetic interference to maintain high signal integrity across the 8P8C interface. Utilizing a Tab-Up right angle configuration, the component effectively optimizes board space while supporting a consistent 1.5A current rating. The unit provides a high dielectric withstanding voltage of 1500 Vrms and operates reliably across an industrial temperature range of -40°C to +85°C. Technicians utilize this modular interface for telecommunication gear and data networking hardware needing secure shielded connectivity.
Key Features
- Full EMI Shielding: Metallic brass shell blocks external noise effectively.
- Hi-Temp Nylon Housing: Withstands intense heat during industrial soldering processes.
- Tab-Up Configuration: Optimizes vertical space for specialized board layouts.
- Gold Plated Contacts: Ensures superior conductivity and lasting signal stability.
- 1500 Vrms Strength: Provides high dielectric withstanding voltage for safety.
Main Specifications:
General Information:
| Product No.: | MTJ-88ARX1-FSM-HT | |
| Series: | MTJ | |
| Category: | Single Port RJ45 Jack | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Latch Direction: | Tab-Up | |
| Shielding: | Full Shield | |
| LED indicator: | No LED |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 150V AC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min | |
| Dielectric withstanding voltage: | 1500 Vrms for 1 minute |
Materials and Plating:
| Housing Material: | (Nylon46)Hi-temp thermoplastic | |
| Housing Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Brass, Nickel plated |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |
Structure of Modular Jack

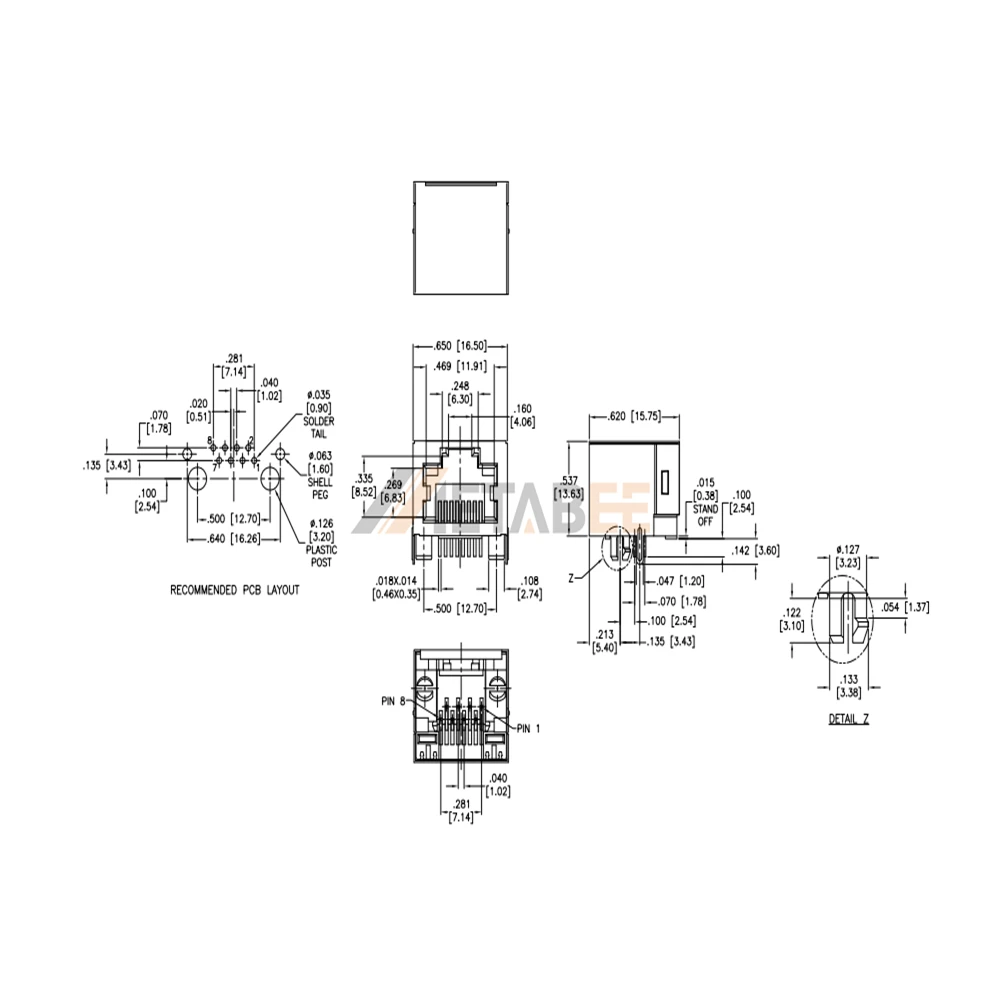

Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
