Introduction:
The RJ45 Ethernet MagJack is a high-density 1×4 multi-port connector used for integrated networking applications. Standard 10/100 Base-T data transmission remains stable across all four ports within the 0 to 70 degrees Celsius commercial temperature range. A robust pre-soldered stainless steel shield encloses the black hi-temp thermoplastic housing to block electromagnetic interference effectively. Mechanical alignment on the PCB relies on the integrated board guide during the THT soldering process. Space-conscious designs benefit from the streamlined tab-down profile that functions without visual LED indicators. Gold-plated phosphor bronze contacts ultimately maintain electrical resistance below 20 milliohms in this RJ45 Ethernet MagJack.
Key Features
- 10/100 Base-T Speed: Supports reliable Fast Ethernet data transmission rates.
- 1×4 Multi-port Profile: Connects four network devices using a single module.
- Stainless Steel Shielding: Blocks severe electromagnetic interference for clear signals.
- Stable THT Mounting: Integrated board guide ensures secure PCB alignment.
- Streamlined No LED: Compact tab-down profile operates without visual indicators.
Main Specifications:
General Information:
| Product No.: | MTJG-4-88TX1-FSD-M5Y-HT | |
| Series: | MTJ | |
| Category: | RJ45 Magnetic Jacks | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×4 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Speed: | 10/100 Base-T | |
| Integral Magnetics: | Yes | |
| PoE Rating: | Non-PoE | |
| Latch Direction: | Tab-Down | |
| Shielding: | Full Shielded | |
| LED indicator: | No LED |
Electrical:
| Rated Voltage: | N/A | |
| Contact Resistance: | N/A | |
| Insulation Resistance: | 500mΩ Min |
Materials and Plating:
| Insulator Material: | Hi-temp Thermoplastic | |
| Insulator Color: | Black | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Stainless Steel, Pre-Soldering |
Environmental:
| Operating Temperature: | 0°C ~ +70°C | |
| Flammability Rating: | UL 94 V-0 |

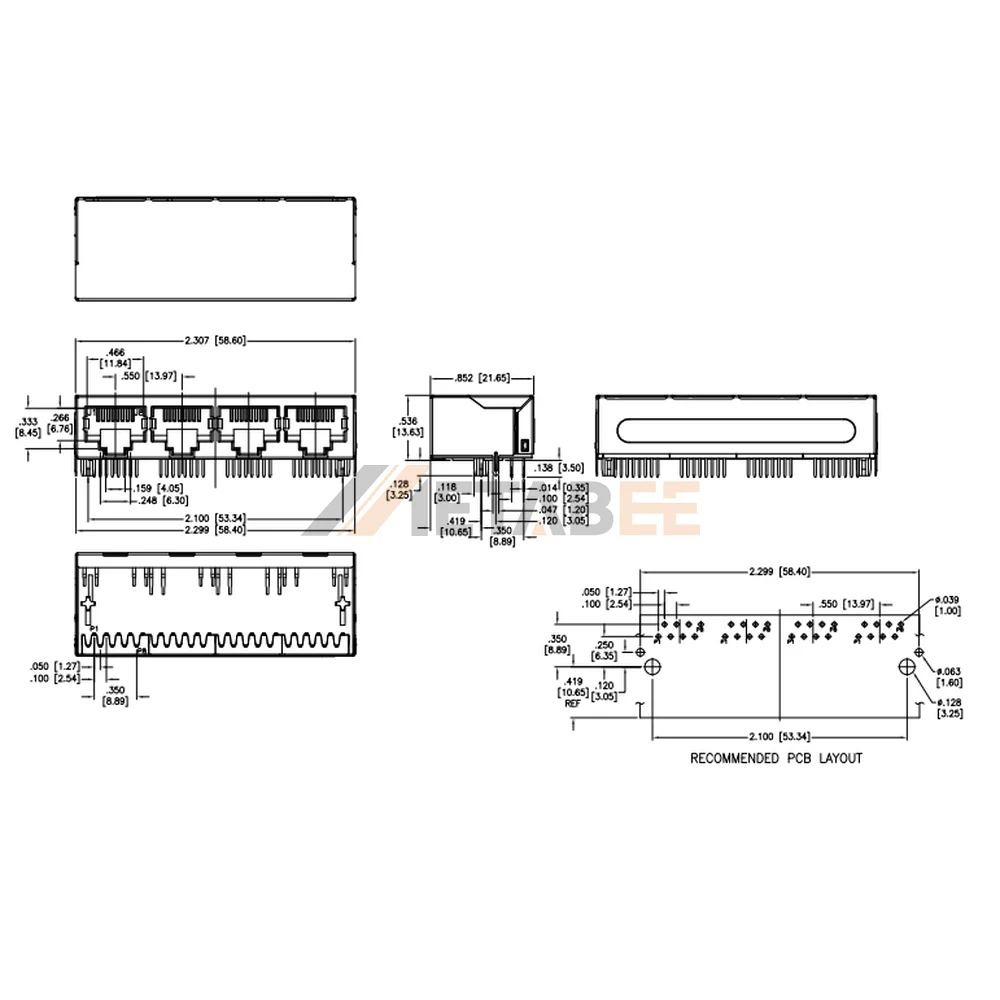

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
