RJ45 8P8C Modular Ethernet Socket, 1 Port, Unshielded, Tab-Down, Through Hole, R/A, No LED
Introduction:
This is a single port RJ45 8P8C modular Ethernet socket designed for stable through-hole mounting on networking circuit boards. Its Hi-temp Nylon housing is specifically engineered to withstand extreme thermal stress during industrial wave soldering without any warping. The Phosphor Bronze contacts feature a premium Gold over Nickel finish, ensuring a low-resistance electrical link and 1.5A current support. Utilizing a Tab-Down right angle configuration, the component effectively reduces vertical clearance while maintaining high insulation resistance across an impressive range of -40°C to +125°C. The robust unshielded design provides a compact footprint and lasting mechanical durability. Technicians utilize this socket for industrial controllers and automotive systems requiring consistent performance in harsh environments.
Key Features
- Industrial Operating Temperature: Performs reliably from -40°C up to +125°C.
- Hi-Temp Nylon Housing: Withstands intense heat during industrial wave soldering.
- Gold Plated Contacts: Delivers superior conductivity and lasting oxidation resistance.
- Tab-Down Configuration: Optimizes vertical space on through hole boards.
- 8P8C Unshielded Interface: Supports standard network and data communication links.
Main Specifications:
General Information:
| Product No.: | MTJ-880X1-N-HT | |
| Series: | MTJ | |
| Category: | Single Port RJ45 Jack | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Latch Direction: | Tab-Down | |
| Shielding: | Unshielded | |
| LED indicator: | No LED |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 150V AC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min | |
| Dielectric withstanding voltage: | 1000 VAC for 1 minute |
Materials and Plating:
| Housing Material: | Hi-temp Nylon | |
| Housing Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | N/A |
Environmental:
| Operating Temperature: | -40℃ to +125℃ | |
| Flammability Rating: | UL 94 V-0 |

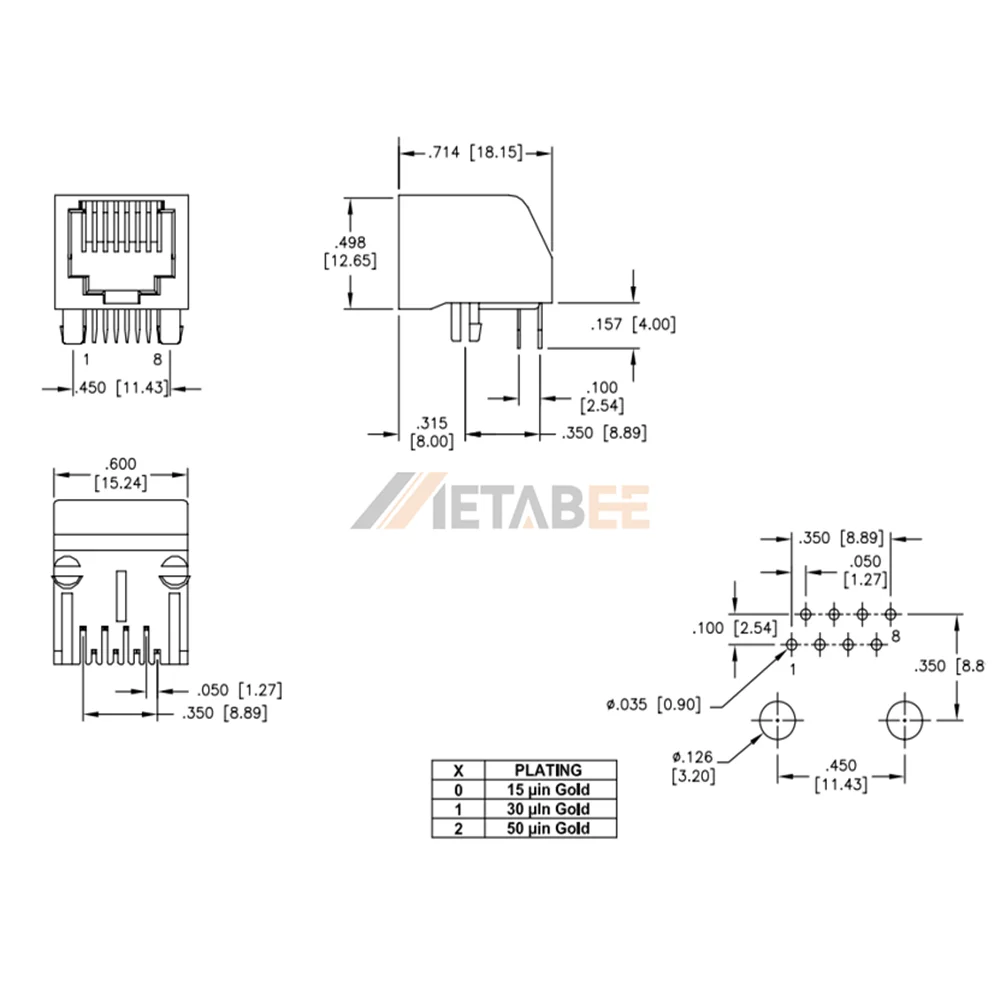

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
