Introduction:
This right angle spring loaded pogo pin is an interconnect solution developed for circuit boards with horizontal mounting requirements. It utilizes a through hole termination style to ensure strong mechanical board retention during repeated compression cycles. The pin’s core structure consists of gold plated brass components, which maintain a maximum contact resistance of 20 mohms at 12V DC. With a 1mm working stroke and 70g spring force, the plunger provides consistent conductivity across its 1,000,000 cycle lifespan. This component acts as a durable signal or power interface in industrial electronics and consumer handheld devices that operate between -55°C and +125°C.
Key Features
- Durable Link: 1,000,000 cycles ensure long-term mechanical reliability.
- Right Angle: Side-entry mounting optimizes space on compact boards.
- Low Resistance: Gold plated contacts maintain stable conductivity at 12V.
- Secure Fit: Through hole design offers strong board retention force.
- Wide Range: Reliable operation from -55°C to +125°C temperatures.

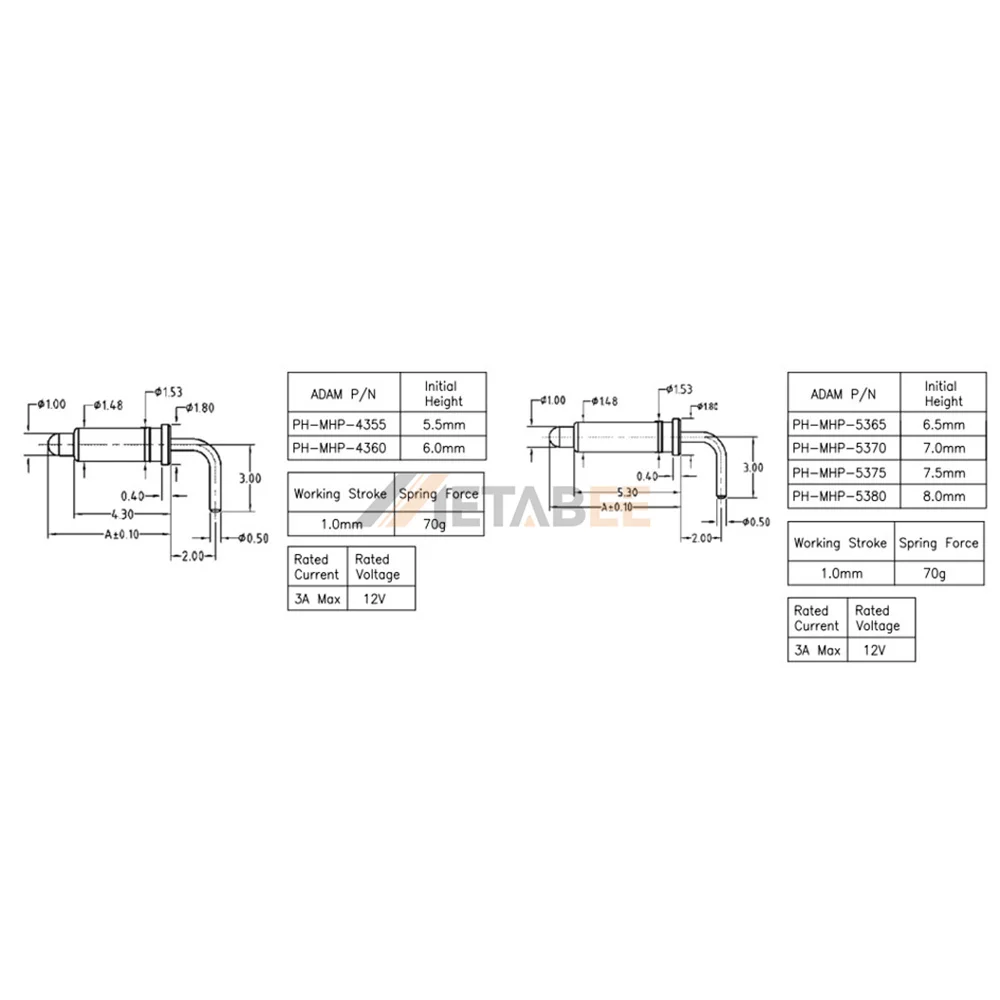

Main Specifications:
General Information:
| Product No.: | PH-MHP-XXXX | |
| Product Family: | Spring Loaded Pins | |
| Number of Positions/Contacts: | 1 | |
| Gender: | Male | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Initial Height (mm): | 5.5mm/6mm/6.5mm/7mm/7.5mm/8mm | |
| Working Stroke (mm): | 1mm | |
| Spring Force: | 70gf |
Electrical:
| Rated Current: | 3A Max | |
| Rated Voltage: | 12V | |
| Contact Resistance: | 20mΩ Max |
Materials and Plating:
| Plunger Material: | Brass, Gold plated | |
| Barrel Material: | Brass, Gold plated | |
| Spring Material: | SUS Surface treatment |
Environmental:
| Operating Temperature: | -55°C to +125°C | |
| Flammability Rating: | UL 94 V-0 |
Types of Pogo Pins
Structure of Pogo Pin Connector
Applications:
Pogo pin connectors, also known as spring-loaded pin connectors, provide reliable electrical contact for power, signal, and data transmission. Their spring-loaded design enables stable connections and repeated mating cycles.
- Consumer Electronics
- Wearable Devices
- Charging Docks & Cradles
- Smart Home & IoT Devices
- Medical Equipment
- Industrial Automation
- Automotive Electronics
- Custom OEM & ODM Solutions
