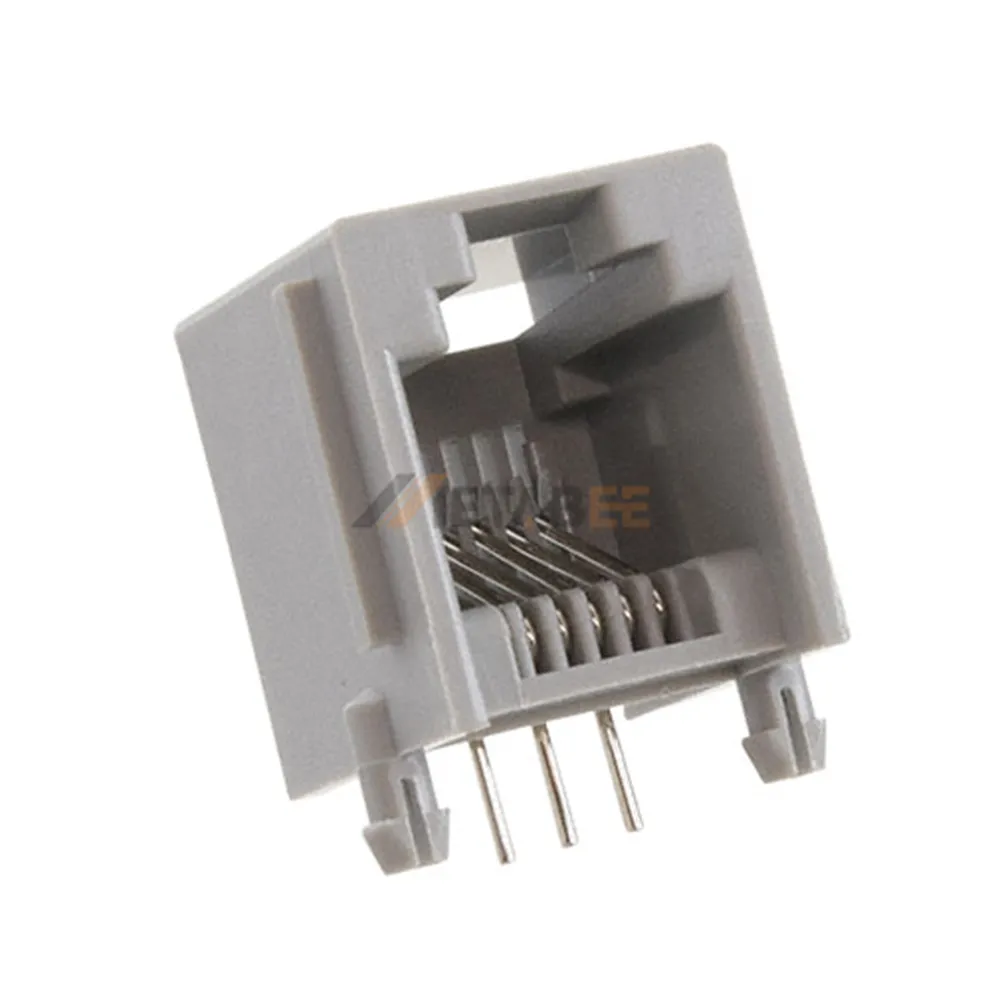

Right Angle RJ12/RJ25 6P6C Modular Jack, 1 Port, Unshielded, PCB Mount, R/A, Tab-Up, No LED
Introduction:
This is a single port RJ12/RJ25 6P6C modular jack designed for reliable through hole mounting on printed circuit boards. It features a durable PBT housing available in multiple colors like Black, Green, or Gray to help technicians distinguish between different signal lines during hardware assembly. The Phosphor Bronze contacts are finished with premium Gold plating to ensure high conductivity and a standard 1.5A current rating. Utilizing a Tab-Up right angle orientation, this unshielded component effectively optimizes board space while maintaining a high insulation resistance of 1000 Mohms. It effectively handles dielectric voltages up to 1000 VAC to maintain electrical safety. Technicians utilize this modular interface for standard telecommunication systems and networking hardware requiring secure 6-pin connectivity.
Key Features
- 6P6C Modular Design: Supports standard RJ11, RJ12, and RJ25 connectivity.
- Gold Plated Contacts: Ensures high conductivity and signal integrity.
- Tab-Up Orientation: Optimizes vertical clearance for specialized board layouts.
- Diverse Color Options: Available in Green, Gray, or Black insulators.
- Durable PBT Housing: Performs reliably within -40°C to +85°C range.
Main Specifications:
General Information:
| Product No.: | MTJ-662X1, MTJ-662X1-P362C, MTJ-662X2 | |
| Series: | MTJ | |
| Category: | Single Port RJ11 Jack | |
| Product Type: | Jack | |
| Number of Positions/Contacts: | 6P6C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Latch Direction: | Tab-Up | |
| Shielding: | Unshielded | |
| LED indicator: | No LED |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 150V AC | |
| Contact Resistance: | 35mΩ Max | |
| Insulation Resistance: | 1000 mΩ Min | |
| Dielectric withstanding voltage: | 1000 VAC for 1 minute |
Materials and Plating:
| Insulator Material: | PBT | |
| Insulator Color: | Black / Pantone P355C Green / Gray | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | N/A |
Environmental:
| Operating Temperature: | 40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |

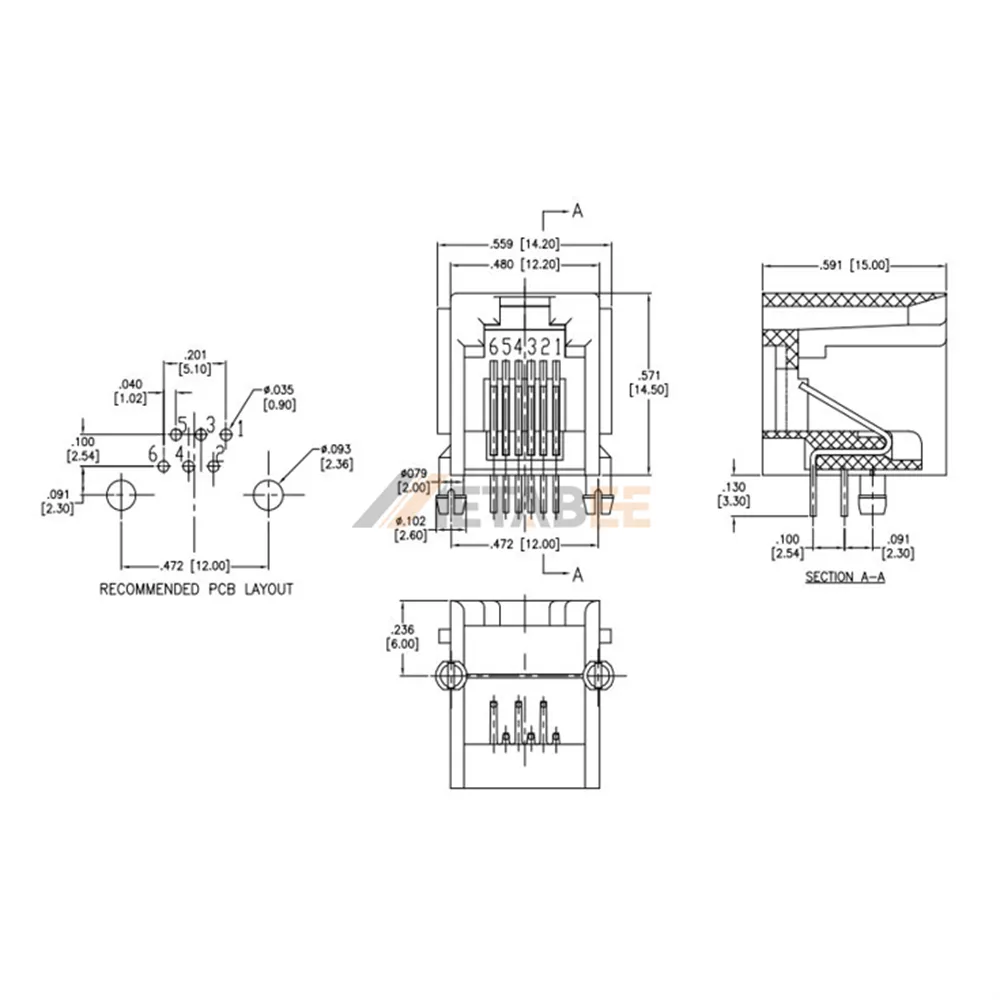

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
