Right Angle PCB Mount Modular RJ45 Jack With LEDs, One Port, Shielded, Tab-Down, Through Hole
Introduction:
This is a single port right angle PCB mount modular rj45 jack designed for reliable through hole installation on networking boards. It features a rugged glass-reinforced PBT housing that provides exceptional structural integrity and heat resistance during wave soldering. The nickel-plated copper alloy shell acts as a full shield against electromagnetic interference to ensure high signal quality across the 8P8C interface. Premium Phosphor Bronze contacts are finished with Gold over Nickel plating to support a consistent 1.5A current rating. Utilizing integrated Green and Yellow LEDs, the unit offers immediate link diagnostics for various data systems. Technicians utilize this shielded interface for industrial telecommunication gear and networking hardware requiring secure board-level connectivity.
Key Features
- Full EMI Shielding: Metallic copper alloy shell blocks external signal interference.
- Integrated Status LEDs: Green and yellow lights show network activity instantly.
- Glass-Reinforced PBT: High-strength housing withstands intense industrial assembly heat.
- Gold Plated Contacts: Delivers superior conductivity and lasting signal stability.
- Right Angle Layout: Optimizes vertical space for specialized board layouts.
Main Specifications:
General Information:
| Product No.: | MTJ-88GX1-FSD | |
| Series: | MTJ | |
| Category: | Single Port RJ45 Jack | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Latch Direction: | Tab-Down | |
| Shielding: | Full Shield | |
| LED indicator: | Multiple combinations |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 150V AC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min | |
| Dielectric withstanding voltage: | 1500 VAC for 1 minute |
Materials and Plating:
| Insulator Material: | PBT, glass reinforced | |
| Insulator Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Copper Alloy, Nickel plated |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |

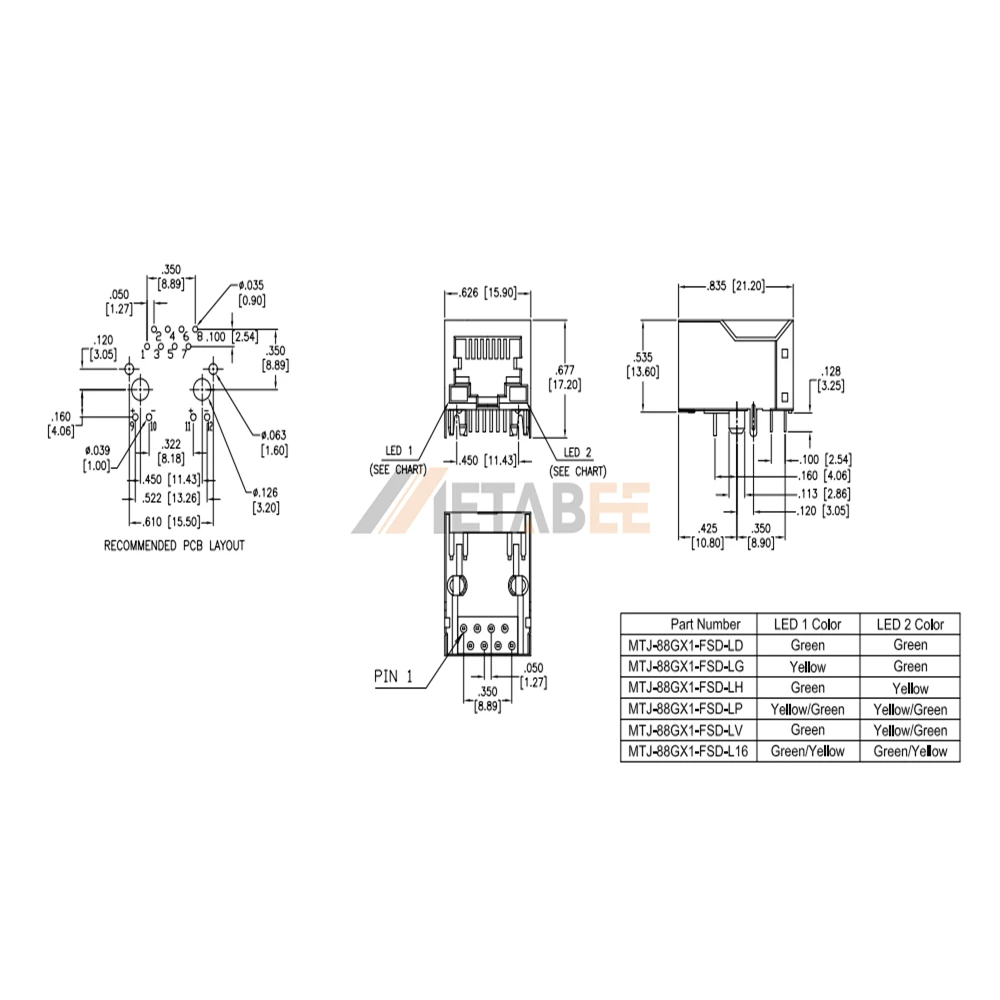

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
