Introduction:
This pogo pin charging cable is a specialized 1.2-meter white power assembly designed with a circular right angle magnetic head. It features 20AWG round cabling to facilitate an efficient 3A current rating while handling an unusually high 52VDC rated voltage. The magnetic attraction mechanism enables automatic self-alignment for a secure connection with specialized electronic hardware or industrial modules. Gold flash plated contacts are utilized to maintain low resistance and prevent terminal oxidation over time. This white PVC cable functions as a reliable charging interface for high-voltage portable devices where space-saving orientation and quick-release connectivity are required.
Key Features
- Efficient Power: Supports 2A current for 15V dc charging tasks.
- Durable Plating: 3u” Gold finish prevents brass contact oxidation.
- Long Reach: 1000mm PVC cable offers flexible device connection.
- Reliable Force: Internal spring maintains stable 70gf contact pressure.
- Space Saving: Right angle orientation optimizes tight device layouts.

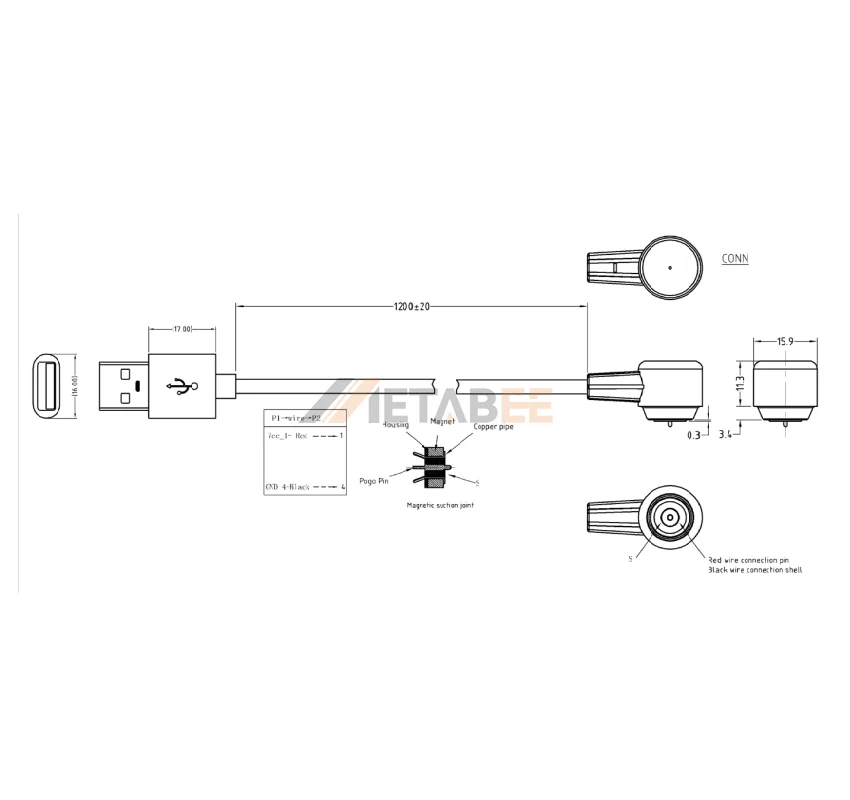

Main Specifications:
General Information:
| Product No.: | CA-RA2-PHR-34113-M-WT | |
| Product Type: | Magnetic Cable Assemblies | |
| Connector 1: | USB Type-A Male | |
| Connector 2: | Male Pogo Pin Connector | |
| Pin Count: | 1 | |
| Connector 2-Shape: | Circular | |
| Connector 2-Orientation: | Right Angle | |
| Contact Material: | N/A | |
| Contact Plating: | Gold flash plated | |
| Cable Type: | Round Cable | |
| Wire Gauge: | 20AWG | |
| Cable Length: | 1200±20mm | |
| Jacket Material & Color: | PVC 55P, White |
Electrical:
| Rated Current: | 3A Max | |
| Rated Voltage: | 52V DC | |
| Contact Resistance: | 50 mohms max | |
| Insulation Resistance: | N/A | |
| Dielectric Withstanding Voltage: | N/A |
Mechanical:
| Contact Force: | N/A | |
| Working Stroke: | N/A | |
| Full Stroke: | N/A | |
| Durability: | N/A |
Environmental:
| Operating Temperature: | -30°C to +85°C | |
| Flammability Rating: | UL 94 V-0 |
Applications:
Pogo pin magnetic cable assemblies combine magnetic alignment with spring-loaded contacts to provide fast, reliable connections for power and signal transmission. Their self-aligning design supports easy mating, repeated connection cycles, and stable electrical performance in compact electronic devices.
- Consumer Electronics
- Wearable Devices
- Charging Docks & Cradles
- Smart Home & IoT Devices
- Medical Equipment
- Industrial Automation
- Automotive Electronics
- Custom OEM & ODM Solutions
