Right Angle 6P6C RJ11 RJ12 Female PCB Jack, 1 Port, Unshielded, Through Hole, Tab-Down, No LED
Introduction:
This is a single port right angle 6P6C RJ11 RJ12 female PCB jack designed for stable through hole mounting on networking circuit boards. It is constructed from hi-temp thermoplastic to survive intense industrial wave soldering heat without warping or physical damage. The Phosphor Bronze contacts feature premium Gold plating to ensure a low-resistance path and a standard 1.5A current rating for voice and data signals. Utilizing a Tab-Down orientation, this unshielded connector optimizes vertical board space while operating reliably across an impressive temperature range from -40°C to +125°C. Technicians utilize this modular socket for standard telephone systems and industrial communication gear requiring durable board-to-cable links.
Key Features
- 6P6C RJ12 Interface: Supports standard modular connectivity for voice networking systems.
- Industrial Temperature Range: Performs reliably between -40°C and +125°C environments.
- Gold Plated Contacts: Ensures superior conductivity and lasting signal stability.
- Hi-Temp Material: Survives intense heat during industrial soldering processes.
- Tab-Down Layout: Optimizes vertical space for specialized board layouts.
Main Specifications:
General Information:
| Product No.: | MTJ-665X1-HT | |
| Series: | MTJ | |
| Category: | Single Port RJ11 Jack | |
| Product Type: | Jack | |
| Number of Positions/Contacts: | 6P6C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Latch Direction: | Tab-Down | |
| Shielding: | Unshielded | |
| LED indicator: | No LED |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 150V AC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500 mΩ Min | |
| Dielectric withstanding voltage: | 1000 VAC for 1 minute |
Materials and Plating:
| Insulator Material: | Hi-temp thermoplastic | |
| Insulator Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | N/A |
Environmental:
| Operating Temperature: | -40℃ to +125℃ | |
| Flammability Rating: | UL 94 V-0 |

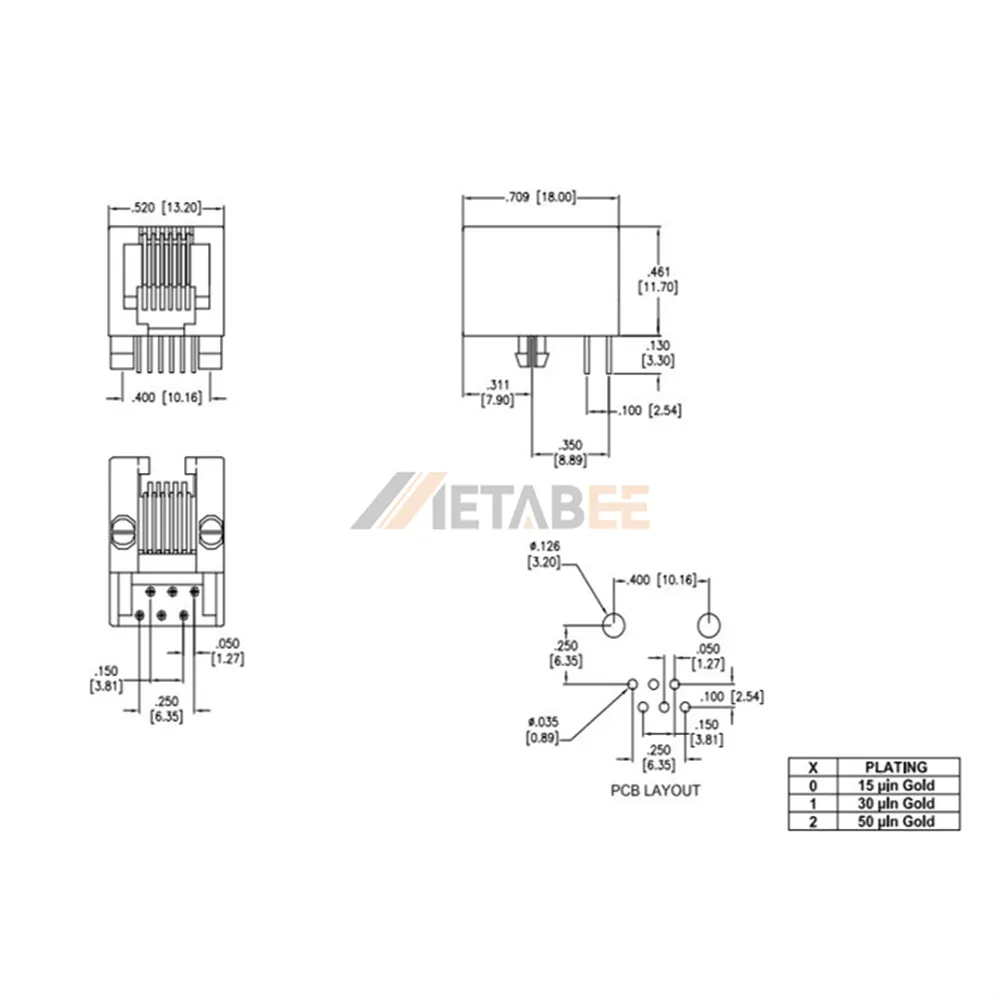

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
