GPS L1 Band Antenna, SMA Male with RG174 Cable, 1575.42 MHz, 5dBi, IP66
Introduction:
ptimize your satellite tracking capabilities with this high-gain GPS L1 Band Antenna. Operating at the standard 1575.42 MHz frequency, this antenna delivers an impressive 5dBi gain, providing superior sensitivity and faster Time-To-First-Fix (TTFF) for precision navigation systems. Its omni-directional radiation pattern ensures consistent signal locking from all angles, making it an ideal choice for fleet management, telematics, and autonomous vehicle integration.
Built for the most demanding environments, this antenna features an upgraded IP66-rated enclosure, offering complete protection against dust and powerful water jets. The integration of a standard SMA Male connector and RG174 cable allows for easy deployment across various hardware platforms. With a robust operating temperature range of -30 °C to 75 °C, this antenna maintains peak performance and signal integrity under extreme thermal conditions.
Key Features
- High 5dBi Gain: Enhanced signal strength for superior satellite reception and accuracy.
- IP66 Weatherproof: Advanced protection against heavy rain and dust for outdoor reliability.
- Omni-directional Pattern: Provides reliable 360° coverage with vertical polarization.
- Low VSWR (≤1.92): Maximizes signal efficiency and reduces power loss across the 50 Ohm system.
- Precision Tuning: Specifically optimized for the GPS L1 band at 1575.42 MHz.
- Industrial Build: Durable SMA Male connection with flexible RG174 cabling for easy routing.
General Information:
| Product No.: | YC-GP00054 | |
| Connector Series: | GPS/GNSS Antennas | |
| Brand: | Metabee | |

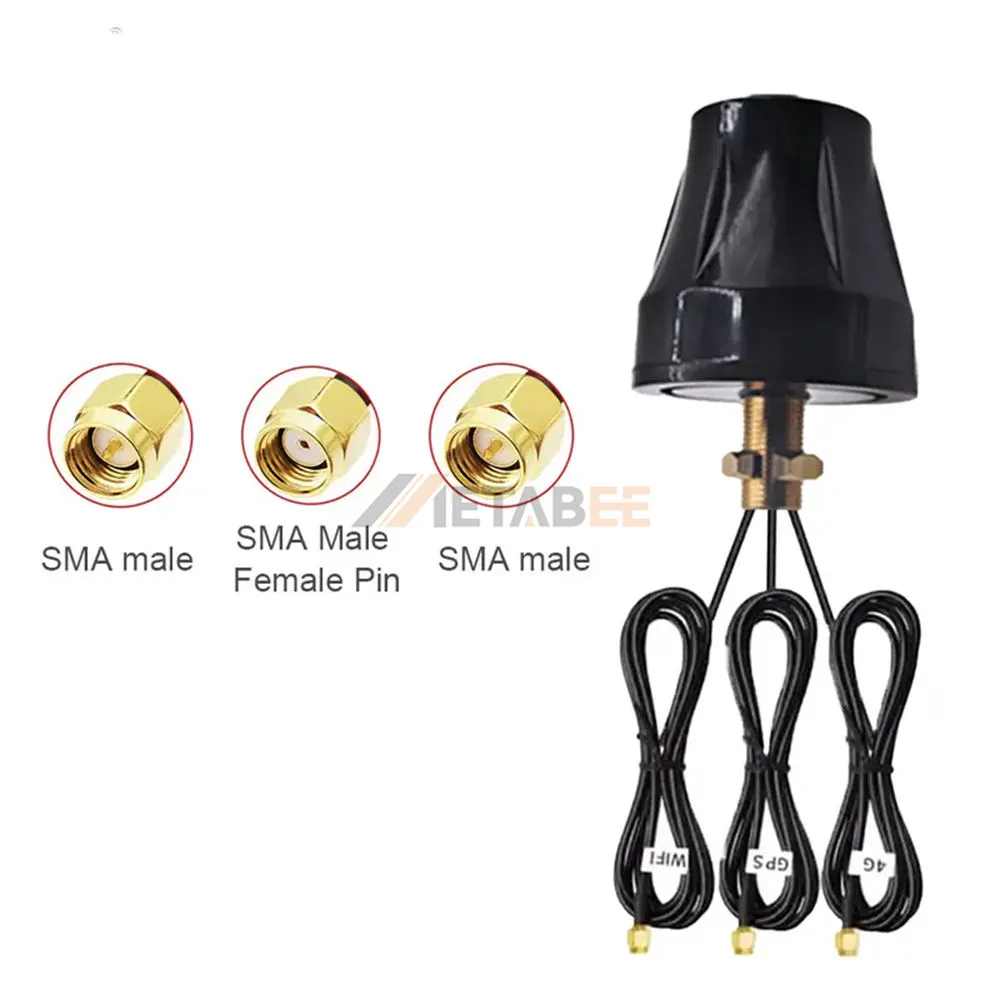

| Connector Type: | SMA Male | |
| Connector Orientation: | Straight | |
| Casing Material: | ASA | |
| Size: | – | |
| IP Rating: | IP66 | |
| Operating Temperature: | -30℃ to +75℃ | |
| Color: | Black | |
| Other Feature: | None |
Electrical Performance:
| Frequency Range: | 1575.5MHz | |
| Gain: | 5dBi | |
| VSWR: | ≦1.92 | |
| Impedance: | 50 Ohms | |
| Radiation Pattern: | Omni-directional | |
| Polarization: | Vertical | |
| Max Power: | 50W |
GPS/GNSS Antennas
GPS/GNSS Antenna Structure
Applications of this GPS L1 Band Antenna:
GPS antennas are crucial for various applications across many industries, enabling precise location, navigation, and timing.
Here are some key applications:
- Automotive Navigation and Fleet Management
- Consumer Devices
- Surveying and Mapping
- Aviation
- Marine Applications
- Drones and UAVs
- Agriculture
- Emergency Services
- Industrial IoT (Internet of Things)
- Scientific Research and Geodetic Surveying
