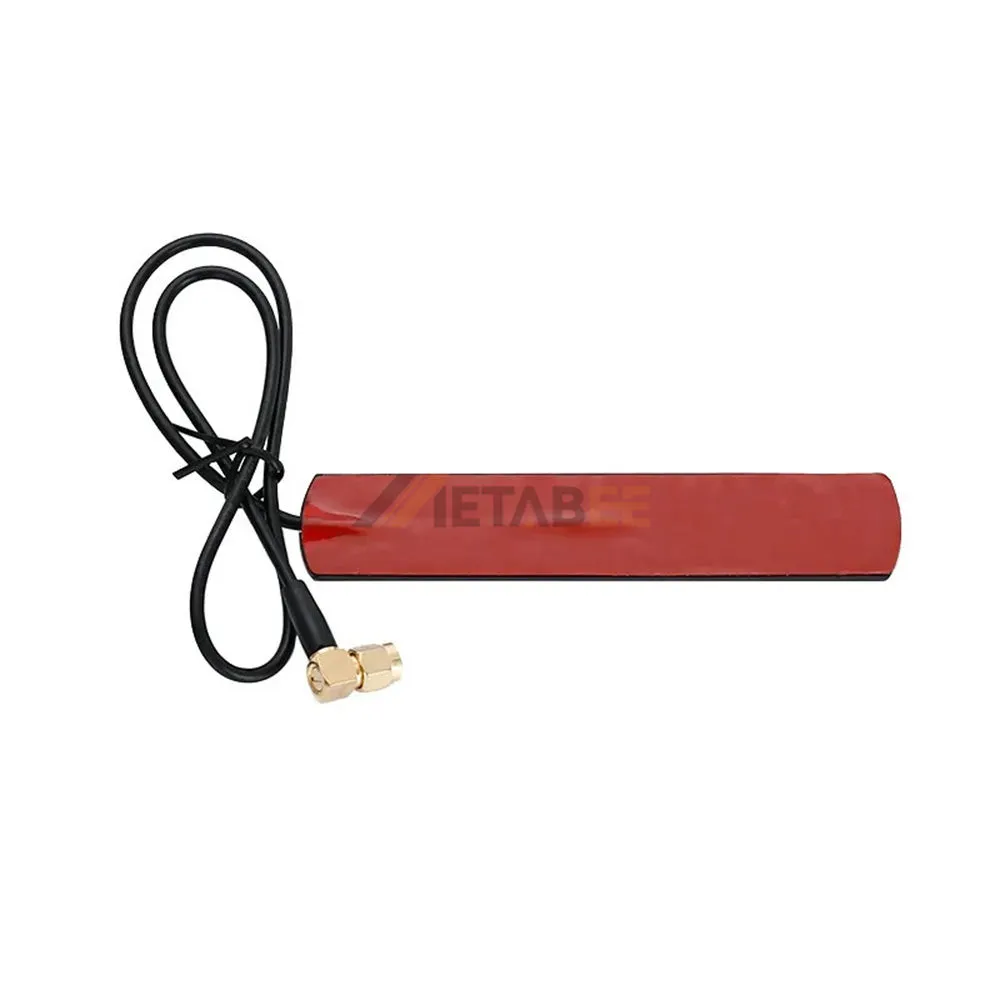

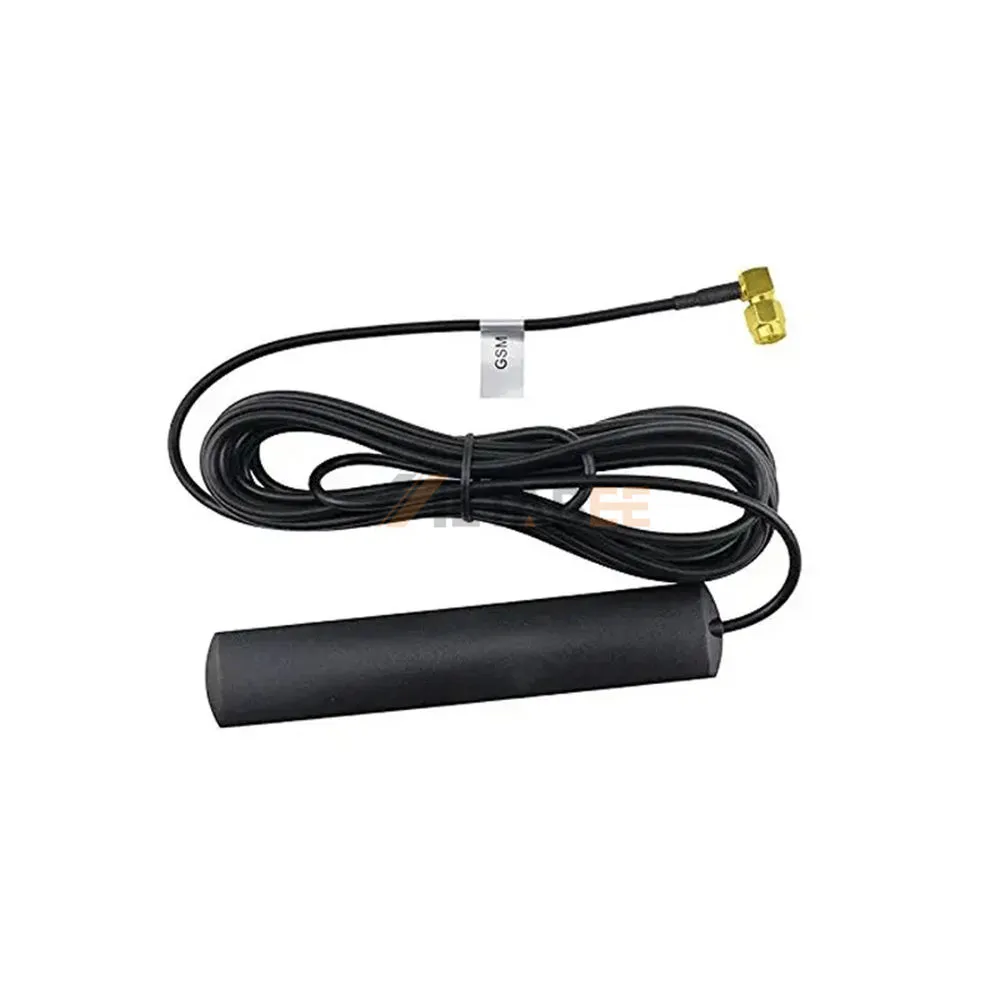

L1 Band GPS/GSM Antenna, SMA Male with RG174 Cable, 1575.42MHz, 4dBi, IP67
Introduction:
This GLONASS L1 Band Outdoor Antenna is engineered for reliable signal reception at 1602 MHz, making it an ideal choice for precision timing, navigation, and tracking systems. With a 3dBi gain and an omnidirectional radiation pattern, it ensures consistent coverage across all directions, eliminating the need for constant reorientation. The vertical polarization and low VSWR (≤1.92) guarantee efficient signal transmission with minimal loss, while supporting a maximum input power of 50W and 50 Ohm impedance for stable system integration.
Built for demanding outdoor environments, this antenna features an SMA Male connector paired with a durable LMR200 cable, simplifying installation on rugged devices, telematics units, or base stations. The IP67 rating provides complete dust-tight protection and withstands temporary water immersion, ensuring long-term reliability. With an operating temperature range from -30°C to 75°C, it performs flawlessly in extreme heat or freezing conditions, making it a robust choice for fleet management, agriculture, and asset tracking applications.
Key Features
- 1602 MHz GLONASS L1 Band – Optimized for Russian satellite navigation systems.
- 3dBi Omni-directional Gain – Consistent 360° signal coverage.
- SMA Male + LMR200 Cable – Secure connection with low-loss cabling.
- IP67 Rated – Fully dustproof and waterproof for outdoor use.
- VSWR ≤1.92 – Low signal reflection for high efficiency.
- Wide Temp Range (-30°C to 75°C) – Reliable in extreme climates.
General Information:
| Product No.: | YC-GP00014 | |
| Connector Series: | GPS/GNSS Antennas | |
| Brand: | Metabee | |
| Connector Type: | SMA Male or Customized | |
| Connector Orientation: | Straight | |
| Casing Material: | ASA | |
| IP Rating: | IP67 | |
| Operating Temperature: | -30℃ to +75℃ | |
| Color: | Black | |
| Other Feature: | None |
Electrical Performance:
| Frequency Range: | 1602MHz | |
| Gain: | 3dBi | |
| VSWR: | ≤1.92 | |
| Impedance: | 50 Ohms | |
| Radiation Pattern: | Omni-directional | |
| Polarization: | Vertical | |
| Max Power: | 50W |
GPS/GNSS Antennas
GPS/GNSS Antenna Structure
Applications of this GLONASS L1 Band Outdoor Antenna:
GPS antennas are crucial for various applications across many industries, enabling precise location, navigation, and timing.
Here are some key applications:
- Automotive Navigation and Fleet Management
- Consumer Devices
- Surveying and Mapping
- Aviation
- Marine Applications
- Drones and UAVs
- Agriculture
- Emergency Services
- Industrial IoT (Internet of Things)
- Scientific Research and Geodetic Surveying
