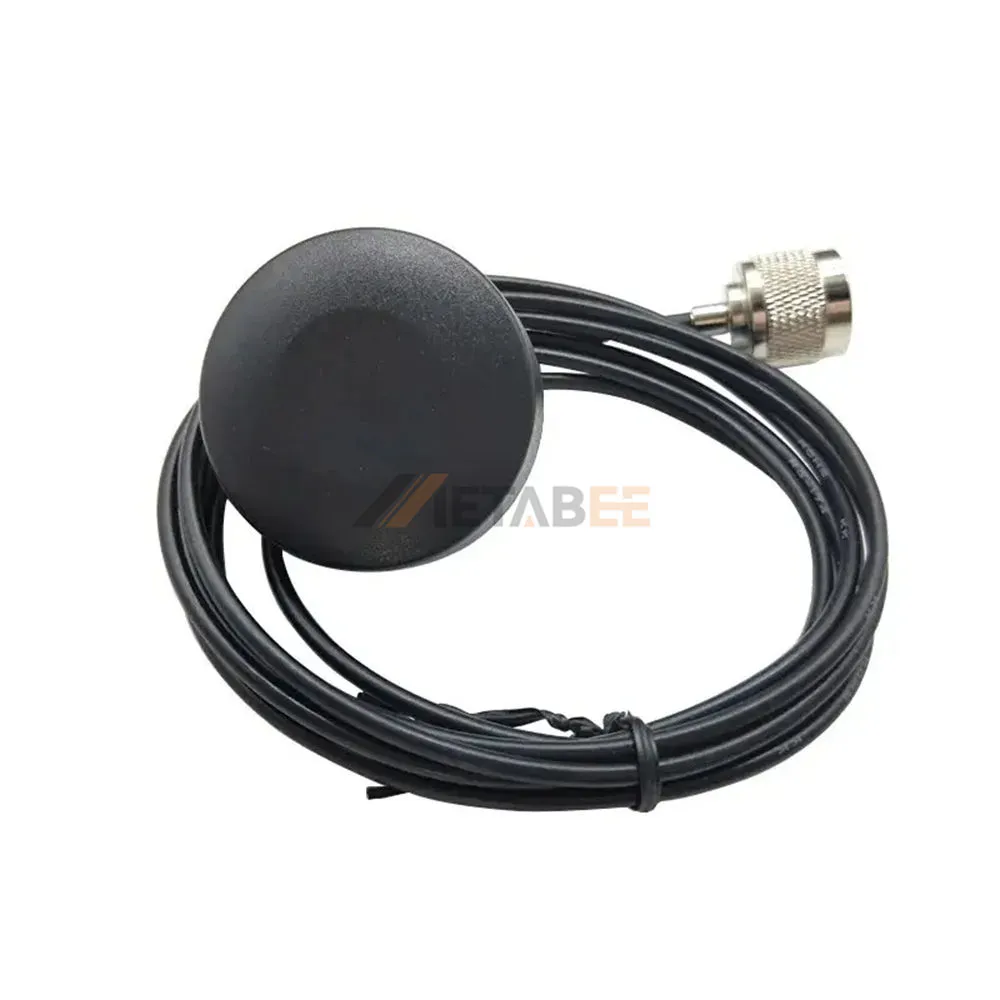

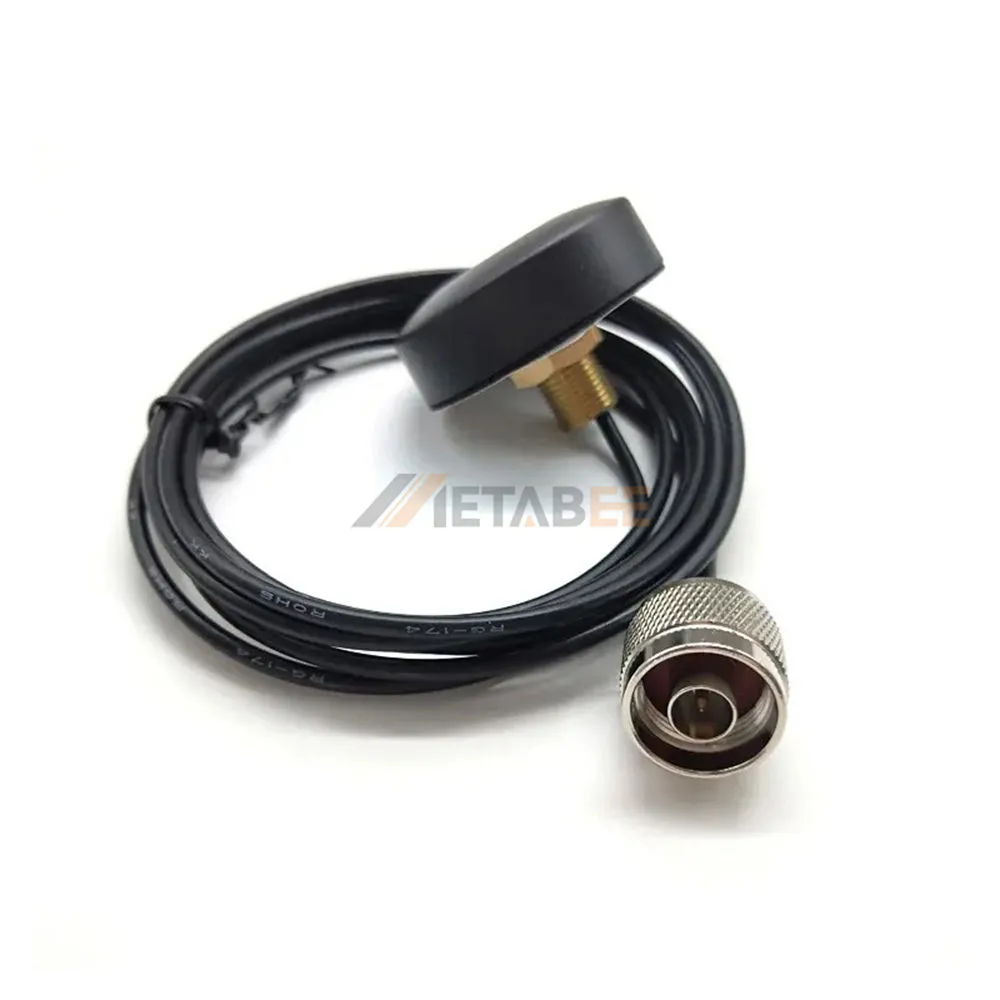

GPS Omnidirectional L1 Band Antenna, N-Male with RG174 Cable, 1575.42MHz, 5dBi
Introduction:
The GPS Omni-directional L1 Band Antenna delivers robust and accurate positioning, specifically engineered for the 1575.42 MHz L1 band. With a stable 5dBi gain and an omni-directional radiation pattern, it ensures comprehensive signal acquisition and reliable reception in diverse environments. Its low VSWR of ≤1.92 and vertical polarization guarantee efficient power transfer and minimal signal loss, providing consistent performance for critical GPS applications. Built to handle a maximum input power of 50W with a 50 Ohm impedance, this antenna is designed for unwavering stability.
Constructed for extreme conditions, this antenna boasts an IP67 rating, offering complete protection against dust and water immersion. The N-Male connector with RG174 cable ensures secure connectivity and flexible installation. Its wide operating temperature range of -30 °C to 75 °C further solidifies its dependability across a broad spectrum of climatic challenges, making it an ideal choice for professional-grade GPS tracking and navigation systems.
Key Features
- L1 Band Optimization: Tuned specifically for 1575.42 MHz, ensuring precise GPS signal reception.
- 5dBi Gain: Enhances signal strength, crucial for reliable positioning in varied environments.
- Omni-directional Coverage: Provides 360-degree signal acquisition, simplifying deployment and maximizing reception.
- Low VSWR (≤1.92): Guarantees efficient power transfer and minimal signal loss for optimal performance.
- IP67 Environmental Protection: Fully sealed against dust and water immersion, ideal for harsh outdoor conditions.
- Wide Operating Temperature: Reliably functions from -30 °C to 75 °C, suitable for extreme climates.
General Information:
| Product No.: | YC-GP00030 | |
| Connector Series: | GPS/GNSS Antennas | |
| Brand: | Metabee | |
| Connector Type: | N Male or Customized | |
| Connector Orientation: | Straight | |
| Casing Material: | ASA | |
| IP Rating: | IP67 | |
| Operating Temperature: | -30℃ to +75℃ | |
| Color: | Black | |
| Other Feature: | None |
Electrical Performance:
| Frequency Range: | 1575.42 MHz | |
| Gain: | 5dBi | |
| VSWR: | ≤1.92 | |
| Impedance: | 50 Ohms | |
| Radiation Pattern: | Omni-directional | |
| Polarization: | Vertical | |
| Max Power: | 50W |
GPS/GNSS Antennas
GPS/GNSS Antenna Structure
Applications of this GPS Omnidirectional L1 Band Antenna:
GPS antennas are crucial for various applications across many industries, enabling precise location, navigation, and timing.
Here are some key applications:
- Automotive Navigation and Fleet Management
- Consumer Devices
- Surveying and Mapping
- Aviation
- Marine Applications
- Drones and UAVs
- Agriculture
- Emergency Services
- Industrial IoT (Internet of Things)
- Scientific Research and Geodetic Surveying
